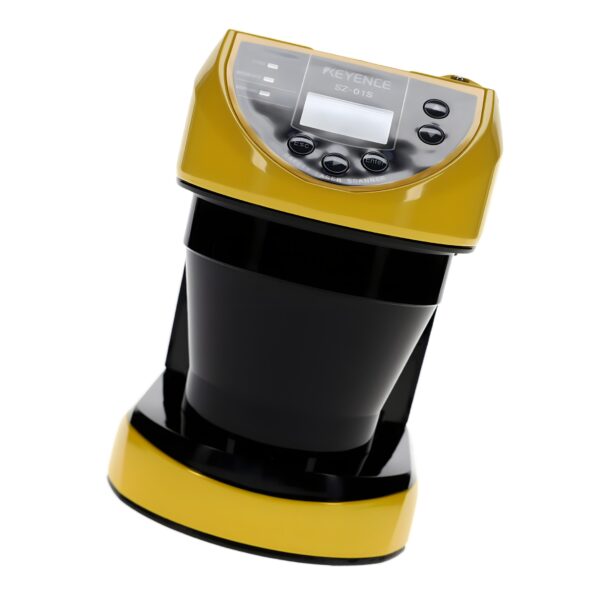

SZ-01S Keyence Safety Laser Scanner

The Keyence SZ-01S is a high-precision safety laser scanner designed for hazard zone monitoring, presence detection, and area protection in industrial environments. With a 270° detection angle and customizable safety and warning zones, it offers reliable performance for machine safety applications.

Technical Specifications

Manufacturer: Keyence
Product Series: SZ Series
Model: SZ01S
Type: Simple function type

Detection & Performance

• Detection Angle: 270° (-45° to 225°)
• Minimum Detectable Object Sizes: 30 / 40 / 50 / 70 / 150 mm (setting-dependent)
• Reflectance: ≥ 1.8%
• Max Speed of Detected Object: 1.6 m/s
• Response Time (ON → OFF):
  • General Scan Cycle: 60–480 ms
  • Specific Scan Cycle: 66–528 ms
• Response Time (OFF → ON):
  • ON–OFF time + 125 ms

Protection & Warning Zones

• Max Protection Zone:
  • Up to 4.2 m (based on object size & angle)
• Max Warning Zone:
  • Up to 10.0 m (based on object size & angle)
• Additional Safety Distance: 100 mm

Light Source & Safety Class

• Type: Infrared laser diode
• Wavelength: 905 nm
• Laser Class: Class 1 (IEC 60825-1, FDA)

Outputs & Inputs

OSSD Safety Outputs:

• Type: PNP or NPN (selectable)
• Outputs: 2
• Max Load: 500 mA
• Residual Voltage (ON): ≤ 2.5 V
• OFF-State Voltage: ≤ 2.0 V
• Leakage Current: ≤ 1 mA
• Max Capacitance: 2.2 µF
• Load Wiring Resistance: ≤ 2.5 Ω

Safety Inputs:

• Input Resistance: 4.4 kΩ / 2.2 kΩ

AUX (Non-Safety) Outputs:

• Type: PNP/NPN totem pole
• Outputs: 2
• Max Load: 50 mA
• Residual Voltage (ON): ≤ 2.5 V

Muting Lamp Output: AUX6 configurable

Max Cable Length: 30 m

Electrical & Power

• Converter Supply: 24 VDC ±10%
• Battery Supply: 24 VDC (+20% / -30%)
• Power Consumption:
  • Max 9.5 W (no load)
  • Max 39 W (with load)

Environmental Resistance

• Enclosure Rating: IP65
• Ambient Light Resistance: ≤ 1,500 lux
• Temperature: -10 to +50 °C (operating), -25 to +60 °C (storage)
• Humidity: 35%–95% RH (no condensation)
• Vibration Resistance: 10–55 Hz, 0.7 mm double amplitude
• Shock Resistance: 100 m/s², 16 ms, 1,000 times per axis

Material & Dimensions

• Case: Aluminum die-cast, SPHC
• Window: Polycarbonate
• Weight: Approx. 1.6 kg

Key Features & Benefits:

✅ Wide Detection Coverage: The SZ-01S monitors up to 270° with flexible protection and warning zone configurations.

✅ Customizable Safety & Warning Zones: Adjustable zones allow for optimized protection based on application needs.

✅ High-Speed Detection: Supports response times as fast as 60 ms for rapid hazard detection.

✅ Compact & Durable Construction: IP65-rated aluminum die-cast body ensures long-lasting performance in industrial environments.

✅ Advanced Laser Technology: Class 1 infrared laser ensures precise and safe object detection.
