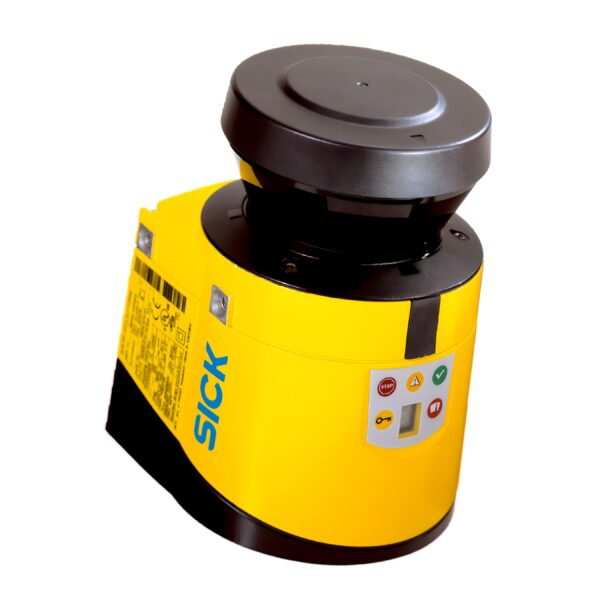

SICK S30B-2011BA Safety Laser Scanner (1026820)

The SICK S30B-2011BA is a compact and durable indoor safety laser scanner from the S300 Standard family, offering reliable protection for short-range applications.

Designed for simple, single-zone systems, it features a 2-meter protective field, 270° scanning angle, and triple field sets — ideal for stationary machinery, compact AGVs, and small-area guarding.

Note: System plug must be ordered separately. See accessories section for options.

Technical Specifications

• Model: S30B-2011BA
• Part Number: 1026820
• Product Type: Safety Laser Scanner
• Series: S300 Standard
• Application: Indoor use
• Protective Field Range: 2 m
• Warning Field Range: 8 m (at 15% reflectivity)
• Distance Measuring Range: 30 m
• Scanning Angle: 270°
• Resolution (Configurable): 30 mm, 40 mm, 50 mm, 70 mm
• Angular Resolution: 0.5°

Functional Parameters

• Type of Field Set: Triple field sets
• Number of Field Sets: 1
• Number of Fields: 3
• Number of Monitoring Cases: 1
• Response Time: 80 ms
• Protective Field Supplement: 100 mm
• Multiple Samplings: Configurable from 2 to 16
• Automatic Reset Delay: Configurable from 2 to 60 seconds

Safety-Related Data

• OSSD Outputs: 2 x 250 mA
• Application Diagnostic Outputs: 3 x 100 mA
• Protection Class: II (EN 50178, EN 60950)
• Certifications:
  • European Conformity (CE)
  • UK Conformity Assessed (UKCA)
  • cULus
  • Regulatory Compliance Mark (RCM)

Electrical Interface

• Supply Voltage: 24 V DC (16.8 V to 30 V DC)
• Power Consumption:
  • Typical: 0.33 A
  • Maximum: 1.7 A

Mechanical Data

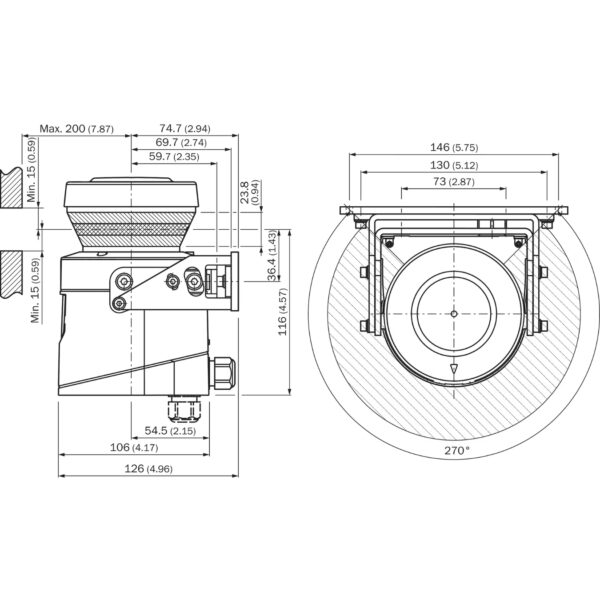

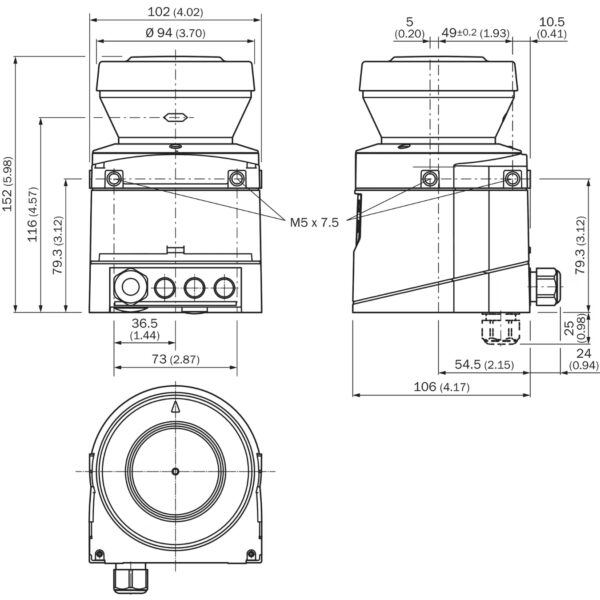

• Dimensions (W x H x D): 102 mm x 152 mm x 106 mm
• Weight: 1.2 kg
• Housing Material: Aluminum die cast
• Housing Color: RAL 1021 (Yellow)
• Optics Cover Material: Polycarbonate
• Optics Cover Finish: Scratch-resistant coating (outer surface)

Ambient Conditions

• Operating Environment: Indoor
  (Refer to datasheet for full temperature, humidity, and vibration tolerances.)

Scope of Delivery

• Included:
  • Safety scanner unit (without system plug)
• Not Included:
  • System plug (required)
  • Mounting accessories
  • Configuration software

Applications

Ideal For:

• Small machinery and press guarding
• Compact AGVs with defined paths
• Localized access protection zones
• Short-range fixed-position hazard monitoring

Key Features & Benefits:

✅ Compact and Lightweight: Smaller footprint at just 1.2 kg — perfect for tight installs.

✅ Triple Field Set Configuration: Simple zone logic for clear hazard control.

✅ 270° Wide Scan Coverage: Perfect for monitoring corners and U-shaped areas.

✅ Industrial Strength Build: Durable aluminum housing with scratch-resistant polycarbonate optics.

✅ Energy Efficient: Low typical current draw of just 0.33 A for battery-powered systems.

📦 Order Today for Fast UK & Europe Delivery!

The S30B-2011BA is available now from Drive Outlet Megastore, in stock and ready to ship across the UK & EU.

Need help sourcing the correct system plug or mounting setup?
Talk to our scanner setup team.

Reliable safety in a compact form – with SICK and Drive Outlet Megastore.
