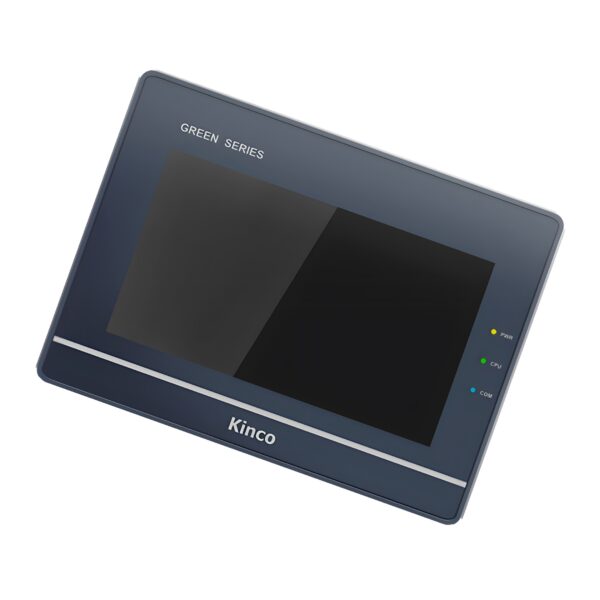

Kinco G070E-CAN Green Series HMI

The Kinco G070E-CAN is a 7-inch HMI from the Green Series, designed for industrial-grade control and visualization with CANopen support, high-brightness TFT display, and a compact, rugged form factor. This model features a 24-bit true color display with 400 cd/m² brightness, built-in isolated 12–28V power supply, and three serial ports for multi-controller communication.

With support for USB, Ethernet, and U-disk program download, and compatibility with Kinco DTools V4.1+, the G070E-CAN is ideal for PLC-based automation requiring modern networking and durable IP65-rated front panel protection.

Technical Specifications

Model: G070E-CAN Kinco
Series: Green Series
Display Type: 7″ TFT LCD
Resolution: 800 × 480 pixels
Display Colors: 16.77 million (24-bit)
Brightness: 400 cd/m²
Contrast Ratio: 500:1
Viewing Angle: 70°/70°/60°/70° (L/R/U/D)
Backlight: LED
Backlight Life: >30,000 hours
Touch Panel: 4-wire resistive (Surface hardness 4H)

System & Memory

CPU: ARM RISC 32-bit, 800 MHz
Memory: 256MB Flash + 128MB DDR3
Real-Time Clock: Built-in (≥2 years retention)
External Storage: 1 × USB Host
Program Download: Micro USB, USB Flash Drive, Ethernet
Configuration Software: Kinco DTools V4.1 or later

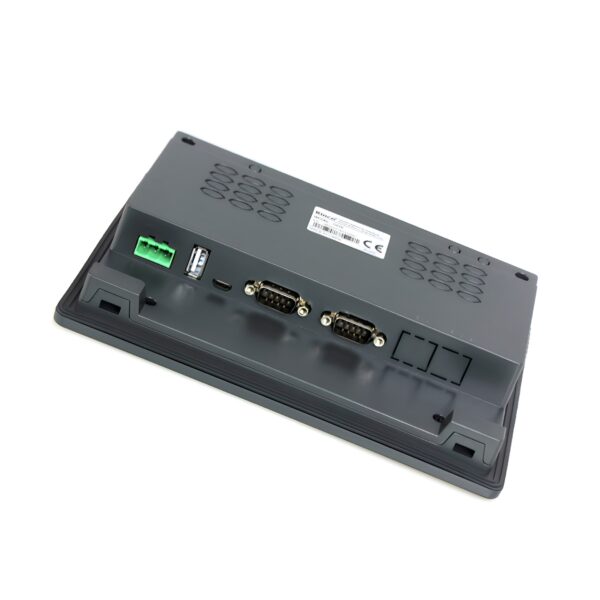

Communication Interfaces

COM0: RS232 / RS485 / RS422
COM1: RS485 / RS422
COM2: RS232
Ethernet: LAN0 (10/100 Mbps)
CAN Bus: 1 × CANopen
Print Port: USB Host / Serial Port

Electrical & Installation

Input Voltage: DC 12–28V (isolated)
Power Consumption: 3.8W @ 24V DC
Power Loss Tolerance: < 3 ms
Insulation Resistance: > 50 MΩ @ 500 VDC
Hi-pot Test: 500 VAC, 1 minute
Cooling: Natural air convection

Mechanical & Environmental

Shell Material: Engineering plastic
Dimensions (W × H × D): 204 × 150 × 37 mm
Panel Cutout Size: 192 × 138 mm
Weight: 0.5 kg
Operating Temp: 0°C to 50°C
Storage Temp: -20°C to 60°C
Humidity: 10–90% RH (non-condensing)
Vibration Resistance: 10–500 Hz, 30 m/s², XYZ axes
Panel Protection: IP65 (front panel)

Certifications

CE Certification: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Panel Protection Grade: IP65 (per IEC 4208-93)

Key Features & Benefits

✅ True Colour Display: Rich 16.77M colour visuals on 7″ high-brightness TFT.

✅ Triple COM Ports: Multi-device PLC connectivity via RS232/RS485/RS422.

✅ CANopen Support: Built-in CAN interface for fieldbus integration.

✅ Isolated Power Supply: Enhanced protection and operational reliability.

✅ Ethernet Ready: Supports networking, remote access, and cloud integration.

📦 Order the Kinco G070E-CAN from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Kinco G070E-CAN prices.

Perfect for factory automation, remote monitoring, and advanced PLC systems, the G070E-CAN is a compact, powerful HMI built for seamless industrial connectivity and long-term reliability.
