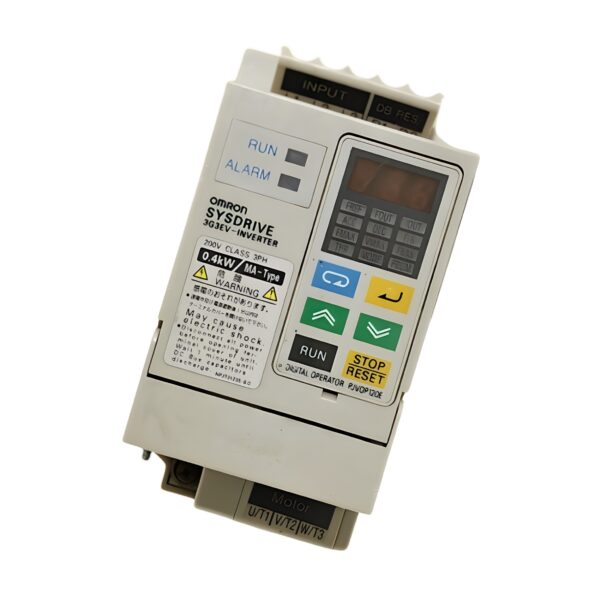

Omron 3G3EV-A2004MA-CUE Inverter Drive – 0.4kW 3-Phase 200–230V, 3.3A Output, Compact V/F Control, Digital Operator Optional

The Omron 3G3EV-A2004MA-CUE is a reliable and compact AC inverter drive engineered for precise speed control of 3-phase induction motors. With a rated output of 0.4kW and 3.3A current capacity, this model delivers smooth, efficient motor operation for a wide range of light to medium-duty industrial applications. It operates on a 200–230V 3-phase input and offers high-quality V/F control for stable torque and acceleration performance.

Designed as part of the trusted Omron 3G3EV series, the unit features a robust housing and versatile control interface for easy setup and integration. The digital operator (PJVOP120E) is available separately, allowing users to perform local monitoring and parameter adjustment when required.

Technical Specifications

Model: 3G3EV-A2004MA-CUE Omron
Brand: Omron
Series: 3G3EV Frequency Inverter
Power Rating: 0.4 kW (0.5 HP)
Input Voltage: 200–230 VAC, 3 Phase
Output Current: 3.3 A
Output Frequency: 0.1 to 400 Hz
Control Method: V/F (Voltage/Frequency) control
Digital Operator: Optional (PJVOP120E, not included)
Mounting Type: Panel / Wall mount
Ideal For: Fans, conveyors, mixers, pumps, and general industrial machinery

Electrical Specifications

• Input Voltage: 200–230 VAC, 3 Phase
• Frequency: 50/60 Hz
• Output Power: 0.4 kW
• Output Current: 3.3 A
• Output Frequency Range: 0.1–400 Hz
• Control Type: V/F (voltage/frequency) control
• Overload Capacity: 150% of rated current for 60 seconds

Mechanical Specifications

• Mounting Type: Panel or wall mount
• Cooling Method: Forced air cooling
• Operator Interface: Optional digital operator (PJVOP120E)
• Housing Material: Industrial-grade plastic
• Colour: Grey / Black
• Compact Size: Space-saving design for control panels

Environmental Specifications

• Operating Temperature: -10°C to +50°C
• Storage Temperature: -25°C to +65°C
• Humidity: 5–95% RH (non-condensing)
• Altitude: Up to 1,000 m without derating
• Cooling: Fan-cooled (integrated)
• Protection Rating: IP20 (open type)

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: EN 61800-5-1, EN 61800-3

Key Features & Benefits

✅ Compact 0.4kW Design. Ideal for small motors and space-limited control panels.

✅ Three-Phase Input. 200–230V supply for efficient industrial applications.

✅ Precise V/F Control. Ensures smooth speed and torque adjustment.

✅ Flexible Configuration. Optional digital operator for local control and monitoring.

✅ Reliable Overload Protection. Handles 150% rated current for 60 seconds.

✅ Omron Quality. Built for dependable, long-term operation in automation systems.

📦 Order the Omron 3G3EV-A2004MA-CUE from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Omron 3G3EV-A2004MA-CUE prices — the compact, durable inverter drive for reliable motor control and efficiency across industrial automation and OEM applications. The PJVOP120E digital operator can be purchased separately for convenient local control.

Check stock now or request a quote.

Control precisely. Drive efficiently. Omron engineered — only at Drive Outlet Megastore.
