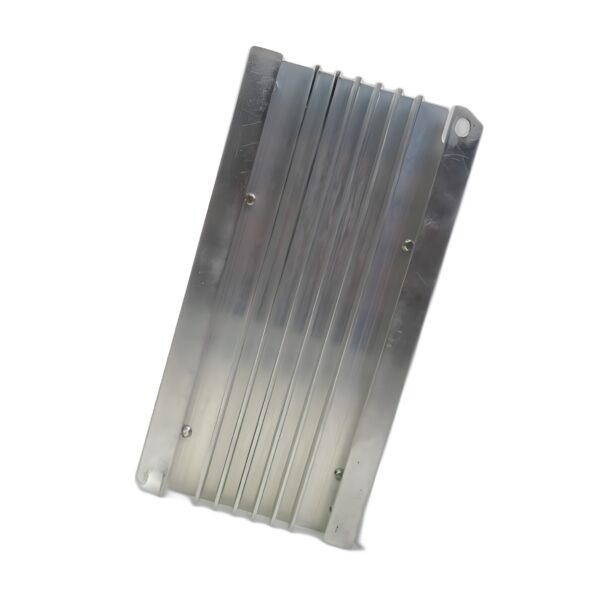

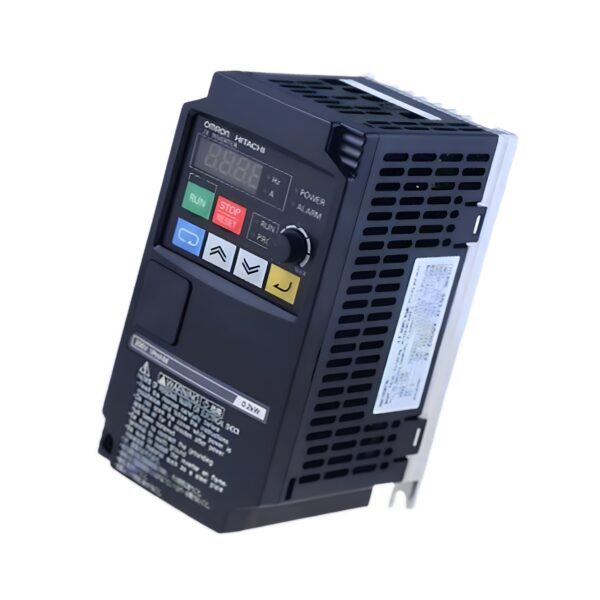

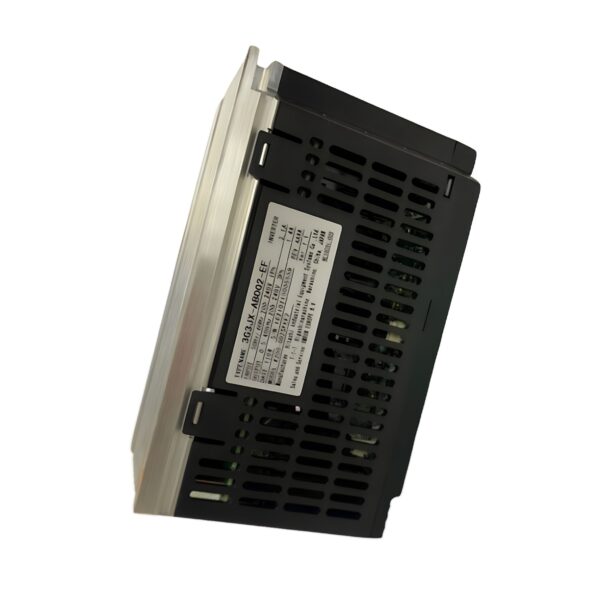

Omron 3G3JX-AB002-EF Inverter Drive – 0.2kW (0.25HP) Single-Phase 200VAC, 1.4A Output, JX Series Frequency Inverter, Compact V/F & Vector Control

The Omron 3G3JX-AB002-EF is a compact and reliable AC inverter drive from the JX Frequency Inverters range, designed for efficient small-motor speed control in industrial and OEM environments. Rated at 0.2kW (0.25HP) with a 1.4A output capacity, this inverter operates from a 200VAC single-phase supply and provides stable V/F or sensorless vector control for smooth acceleration, strong torque, and quiet motor performance.

Ideal for small conveyors, pumps, fans, dosing systems, and automation panels, the 3G3JX-AB002-EF features a space-saving IP20 panel-mount design and simple screw-terminal wiring for quick integration into control cabinets and machinery builds.

Technical Specifications

Model: 3G3JX-AB002-EF Omron
Brand: Omron
Series: JX Frequency Inverters
Type: Variable Frequency Drive (VFD)
Power Rating: 0.2 kW (0.25 HP)
Input Voltage: 200 VAC, Single-Phase
Input Frequency: 50/60 Hz
Output Voltage: 0–200 VAC, 3 Phase
Output Current: 1.4 A
Control Method: V/F or Sensorless Vector Control
Ideal For: Small automation equipment, fans, pumps, OEM control systems

Electrical Specifications

• Input Voltage: 200–240 VAC, Single-Phase
• Input Frequency: 50/60 Hz
• Output Power: 0.2 kW (0.25 HP)
• Output Current: 1.4 A
• Output Voltage: 0–200 VAC, 3 Phase
• Output Frequency: 0.1–400 Hz adjustable
• Control Modes: V/F or Sensorless Vector
• Overload Capacity: 150% of rated current for 60 seconds
• Efficiency: High-efficiency PWM power stage

Mechanical Specifications

• Mounting Style: Panel / Wall mount
• Cooling Method: Forced air cooling
• Connections: Screw terminal blocks
• Display: Integrated LED status display
• Housing Material: Industrial-grade thermoplastic
• Colour: Grey / Black
• Protection: IP20 (for cabinet installation)

Environmental Specifications

• Operating Temperature: -10°C to +50°C
• Storage Temperature: -25°C to +65°C
• Humidity: 5–95% RH (non-condensing)
• Altitude: Up to 1,000 m without derating
• Protection Rating: IP20
• Application Category: Light-duty automation

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: EN 61800-5-1, EN 61800-3, IEC 60335

Key Features & Benefits

✅ Small 0.2kW Output. Ideal for compact automation and OEM equipment.

✅ Single-Phase Input. Easy to integrate into standard 200–240V power systems.

✅ Sensorless Vector Performance. Improved torque at low speeds.

✅ Quiet Operation. PWM drive design reduces motor noise significantly.

✅ Compact IP20 Form Factor. Fits directly into control panels.

✅ Omron Reliability. Long-lasting performance in continuous duty applications.

📦 Order the Omron 3G3JX-AB002-EF from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Omron 3G3JX-AB002-EF prices — a compact, efficient inverter drive purpose-built for small-motor control and industrial automation.

Check stock now or request a quote.

Drive smoothly. Control precisely. Omron engineered — only at Drive Outlet Megastore.
