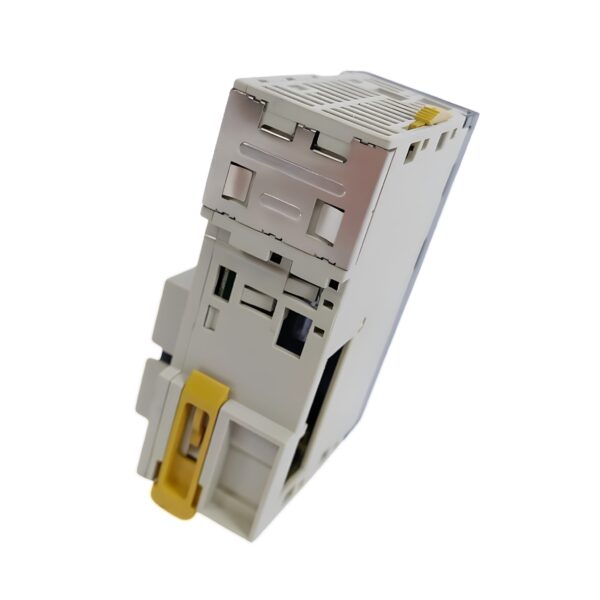

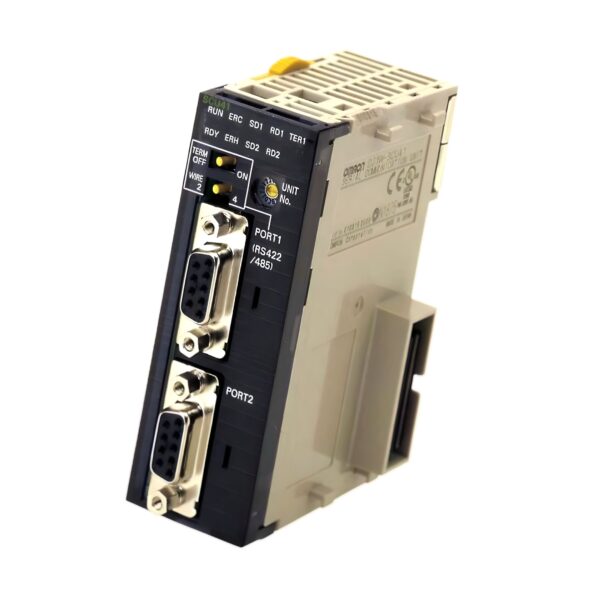

Omron CJ1W-SCU41-V1 Series Serial Communication Unit

£954.44 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsOmron
Product Type Serial Communication Unit
Model Numbers Omron SCU41-V1
Series CJ1W
Mounting Type DIN rail via CJ-series rack
Unit Type CPU Bus Unit
Dimensions (W × H × D) Varies by model (typical: 31 × 90 × 65 mm)
Communication Modes Full-duplex / Half-duplex (selectable)
Host Link Protocol (C-mode & FINS) For master-slave and peer-to-peer communication
Protocol Macro Ladder-controlled protocol scripting using PMCR(260) instruction
No-Protocol Mode Raw ASCII or binary data transfer with RXDU/TXDU instructions
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: CJ1W-SCU41-V1 Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Omron CJ1W-SCU41-V1 Series Serial Communication Unit

The Omron CJ1W-SCU41-V1 series offers highly versatile serial communication units for CJ-series PLCs, enabling dual-port RS-232C and RS-422A/485 connectivity with rich protocol support. Ideal for integrating barcode scanners, drives, HMIs, and weighing systems, these units feature Protocol Macro , Modbus-RTU , Host Link , Serial Gateway , and No-Protocol modes to accommodate legacy and open-architecture communication.

Technical Specifications

Model Numbers Omron SCU41-V1
Series CJ1W
Product Type Serial Communication Unit
Mounting Type DIN rail via CJ-series rack
Dimensions (W × H × D) Varies by model (typical: 31 × 90 × 65 mm)
Weight (Unpacked) 160 g
Unit Type CPU Bus Unit
Max Units per Rack Up to 16 CPU Bus Units
Power Consumption 280–400 mA @ 5 VDC + 0.15 A per NT-AL001 link adapter (if used)

Serial Interface Specifications

Ports per Unit 2 (combinations of RS-232C / RS-422A/485)
Baud Rates 1,200 to 230,400 bps (model-dependent)
Communication Modes Full-duplex / Half-duplex (selectable)
Frame Formats Configurable (start code, end code, CR+LF, etc.)
Error Checking Parity (even, odd, none), LRC, CRC-16, SUM, FCS
Max Cable Length RS-232C: 15 m RS-422A/485: Up to 1,200 m (multidrop or point-to-point)

Supported Protocols

Host Link Protocol (C-mode & FINS) For master-slave and peer-to-peer communication
Protocol Macro Ladder-controlled protocol scripting using PMCR(260) instruction
Serial Gateway Converts FINS commands into CompoWay/F, Modbus-RTU, or Modbus-ASCII
Modbus-RTU Slave Standard 8-function support (Function Codes 01–10h)
No-Protocol Mode Raw ASCII or binary data transfer with RXDU/TXDU instructions
NT Link (1:N) HMI integration

Protocol Macro Functionality

Max Protocols 20
Sequences per Protocol 60
Max Steps per Sequence 16
Macro Triggers PMCR(260) instruction from ladder logic
Send/Receive Messages Up to 1,000 bytes
Trace Function Up to 1,700 bytes traceable (step transitions, RS/CS states)
Data Exchange Words Operand setting: 250 words Link word: 500 words Direct setting: 500 words

Application Capabilities

Send/Receive Control Supports X-on/X-off, RS/CS, modem control
Reception Matrix Up to 15 defined message cases + 1 default
Flexible Message Handling Wildcards, data type conversion, and structured responses
Retry count: 0–9
Wait time: 0.01s to 99 mins
