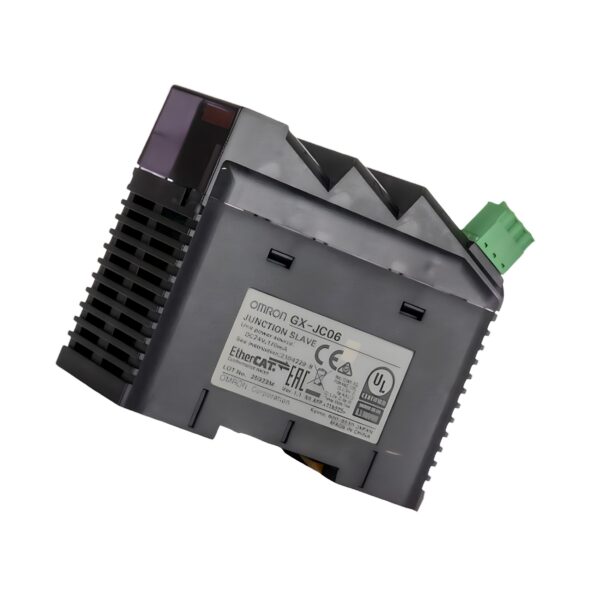

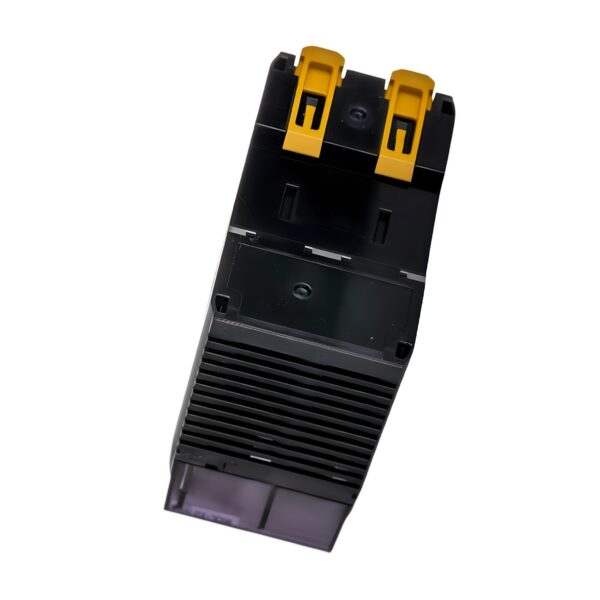

Omron GX-JC06 Compact I/O Terminal Block
The Omron GX-JC03 and GX-JC06 are compact, DIN rail-mountable I/O terminal blocks designed for use with Omron’s controller systems. Featuring 24 V DC input, these terminal blocks offer 3-channel (GX-JC03) or 6-channel (GX-JC06) connectivity, with reliable performance under a wide range of industrial environmental conditions.
Robust construction and small footprints make them ideal for compact control cabinets and distributed I/O panels.
Technical Specifications
| Item | GXJC03 | GXJC06 |
|---|---|---|
| Power Supply Voltage | 20.4 to 28.8 V DC | 20.4 to 28.8 V DC |
| Current Consumption | 80 mA | 170 mA |
| Dimensions (W × H × D) | 25 × 78 × 90 mm | 48 × 78 × 90 mm |
| Weight | 165 g | 220 g |
Environmental Specifications (Both Models)
- Operating Temperature: –10 to 55°C
- Storage Temperature: –25 to 65°C
- Operating Humidity: 25% to 85% RH (non-condensing)
- Storage Humidity: 25% to 85% RH (non-condensing)
- Mounting: DIN rail compatible
- Protection Class: IP20 (when enclosed)
Applications
Perfect for:
- Distributed I/O connections
- Compact control panel installations
- Machine tool and packaging automation
- Interfacing sensors, actuators, and controllers
Key Features & Benefits
✅ Low Power Consumption: Efficient 24 V DC operation.
✅ Space-Saving Design: Slim 25 mm and 48 mm widths.
✅ Industrial-Grade Durability: Built to operate in harsh environments.
✅ Flexible Installation: DIN rail mounting for quick integration.
✅ Reliable Wiring Interface: Omron quality terminal connectivity.
📦 Available from Drive Outlet Megastore
The Omron GX-JC03 and GX-JC06 terminal blocks offer compact, rugged, and scalable I/O connectivity for modern automation environments.
Need assistance integrating with your controller system? Contact our support team now.
Omron connectivity. Drive Outlet reliability — built to interface.
