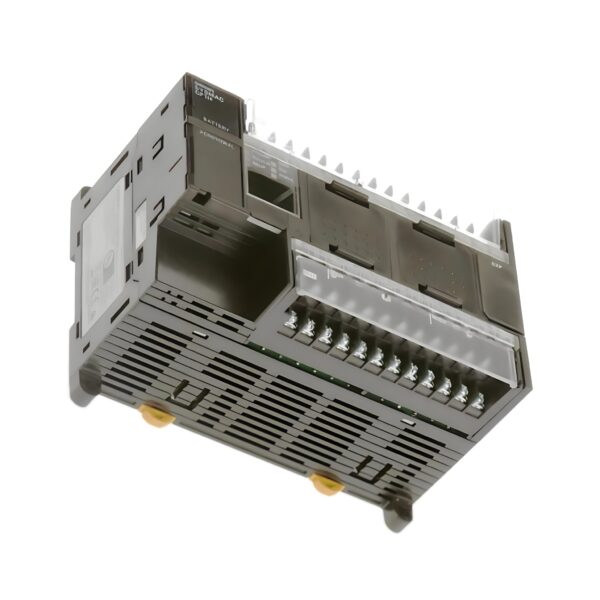

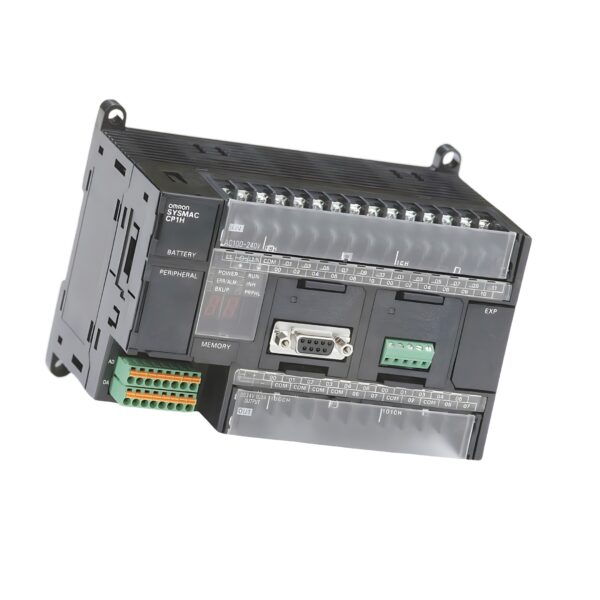

CP1H-X40DT1-D Omron Compact PLC

The Omron CP1H-X40DT1-D is a powerful, high-performance compact PLC ideal for mid-sized automation tasks requiring integrated analog, digital, and high-speed motion capabilities. Part of the CP1H series, it combines fast processing, expandability, and multiple communication options, making it a versatile control platform for advanced standalone machines.

Controller & CPU Specifications

• PLC Type: Compact CPU unit with onboard I/O
• Program Capacity: 20K steps
• Data Memory: 32K words
• Execution Speed: 0.1 µs per basic instruction
• Built-in Clock: Yes (real-time clock supported)
• Battery Backup: Yes (battery-free operation also supported)
• Function Block Support: Yes
• Memory Protection: Password and write protection options
• Programming Software: CX-Programmer (Sysmac Studio for integration)

I/O Specifications

• Digital Inputs: 24 × 24 VDC (sink/source selectable: PNP/NPN)
• Digital Outputs: 16 × PNP transistor outputs (0.3 A per point)
• Analog Inputs: 1 channel (built-in)
• Analog Outputs: None onboard (expandable)
• Max. Analog I/O via Options: Up to 56 channels (via expansion boards)
• Input Response Time: <1 ms typical
• Output Protection: Short-circuit and overload protection on outputs

Motion & Positioning Features

• High-Speed Counter Inputs: 4 channels
• Encoder Input Type: Differential/single-ended supported
• Max. Encoder Frequency: 100 kHz
• Pulse Output Channels: 4 (for positioning)
• Max. Pulse Output Frequency: 100 kHz
• Supported Motion Functions:
  • Incremental & absolute positioning
  • Speed control
  • Pulse + direction or CW/CCW output
  • Linear interpolation (2 axes)

Communication Interfaces

• Built-in USB Port: 1 × USB-B (for programming)
• Serial Ports: Optional via expansion boards
• Ethernet Support: Optional (via communication option boards)
• Supported Protocols (via options):
  • Modbus RTU / TCP
  • EtherNet/IP
  • DeviceNet (Master/Slave)
  • PROFIBUS (DP Master/Slave)
  • CompoNet
  • EtherCAT (Slave)
  • RS-232C / RS-422 / RS-485
  • PROFINET
• Max. Expansion Units: 7

Electrical & Mechanical Specifications

• Power Supply Voltage: 24 VDC
• Built-in 24V Output Supply: None
• Power Consumption: Approx. 13 W
• Dimensions (W × H × D): 150 × 90 × 85 mm
• Weight: 600 g
• Mounting: DIN rail or screw mounting
• Terminal Type: Removable screw terminals

Environmental Ratings

• Operating Temperature: 0 to 55°C
• Storage Temperature: –20 to 75°C
• Relative Humidity: 10–90% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 compliant
• Shock Resistance: IEC 60068-2-27 compliant
• Protection Rating: IP20 (when panel mounted)

Application Use Cases

Typical uses include:

• Automated machinery control (conveyors, packaging, labeling)
• Positioning systems with servo or stepper drives
• OEM control systems for manufacturing equipment
• Modular machine architectures requiring high-speed I/O
• Data acquisition with analog expansion modules

Key Features & Benefits

✅ Integrated digital and analog I/O for complete control in one unit.

✅ 4-axis positioning with 100 kHz pulse outputs for motion systems.

✅ USB programming with high-speed program transfer.

✅ Expandable to 320 local I/O points and up to 56 analog I/O.

✅ Industrial-grade performance in a compact DIN-mountable format.
