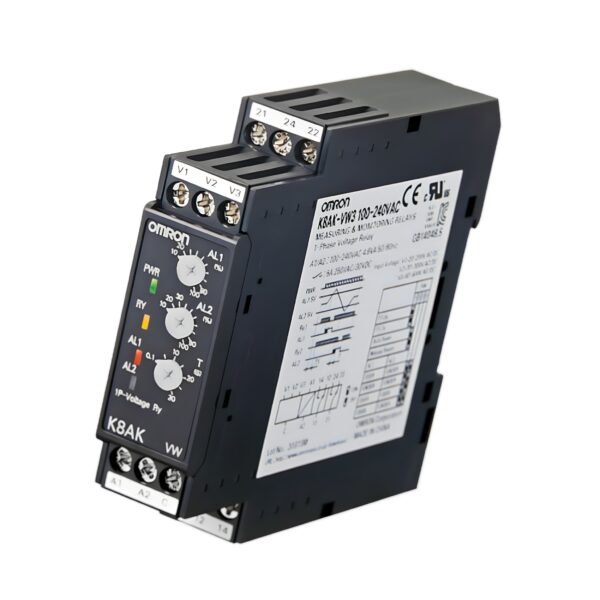

Omron K8AK-VW3 100–240VAC Voltage Monitoring Relay – 1-Phase, 20–600VAC/DC, 2 x SPDT

The Omron K8AK-VW3 100–240VAC is a robust single-phase voltage monitoring relay designed to detect overvoltage and undervoltage conditions in industrial and automation systems. Supporting a wide 20–600VAC/DC voltage range, it provides dependable protection for electrical panels, machinery, and process control equipment.

Powered by a 100–240VAC supply, this 22.5 mm-wide DIN-rail mounted relay features two SPDT relay outputs for flexible control logic. Its screw terminal connections and configurable setpoints ensure straightforward installation, while Omron’s high-quality design delivers long-term performance and reliability in demanding environments.

Technical Specifications

Model: K8AK-VW3 Omron
Series: K8AK-VW Voltage Monitoring
Function: Over/Under voltage supervision
Monitoring Application: Single-phase voltage protection
Voltage Range: 20–600 VAC/DC
Form Factor: DIN Rail – 22.5 mm Width
Connection Method: Screw terminals
Ideal For: Electrical panels, control cabinets, automation systems, and voltage protection

Electrical Specifications

• Supply Voltage: 100–240 VAC
• Voltage Sensing Range: 20–600 VAC/DC (selectable input range)
• Output Type: Relay (Electromechanical)
• Output Contacts: 2 x SPDT (changeover)
• Control Function: Overvoltage and undervoltage detection
• Rated Frequency: 50/60 Hz

I/O & Control Interface

• Output Relays: 2 x SPDT
• Indicators: LED status indicators for output and alarm conditions
• Reset Type: Manual or automatic (selectable)
• Adjustment Range: Independent overvoltage and undervoltage setpoints
• Response Time: Adjustable delay to prevent false tripping

Mechanical Specifications

• Width: 22.5 mm
• Height: 90 mm
• Depth: 100 mm
• Mounting: DIN rail 35 mm
• Terminal Type: Screw connection
• Case Material: Industrial-grade polymer
• Body Colour: Black
• Weight: Approx. 100 g

Environmental Specifications

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -25°C to +70°C
• Humidity: 5–95% RH (non-condensing)
• Protection Rating: IP20
• Application Category: Industrial control and automation systems

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: IEC/EN 60947-5-1, UL 508

Key Features & Benefits

✅ Wide 20–600V Range. Monitors both AC and DC voltage systems.

✅ 100–240VAC Supply. Compatible with standard industrial power sources.

✅ Dual SPDT Outputs. Enables independent over/under voltage signaling.

✅ LED Indicators. Provide instant visual status feedback.

✅ Compact DIN Design. Saves panel space without sacrificing reliability.

✅ Adjustable Response Delay. Prevents nuisance tripping during transient events.
