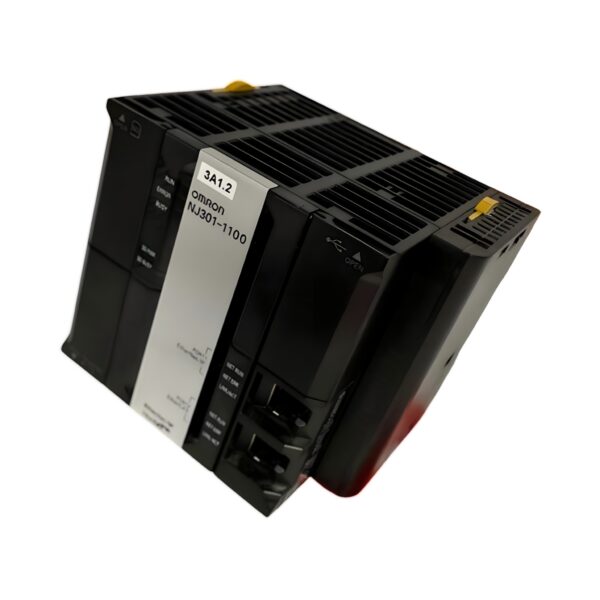

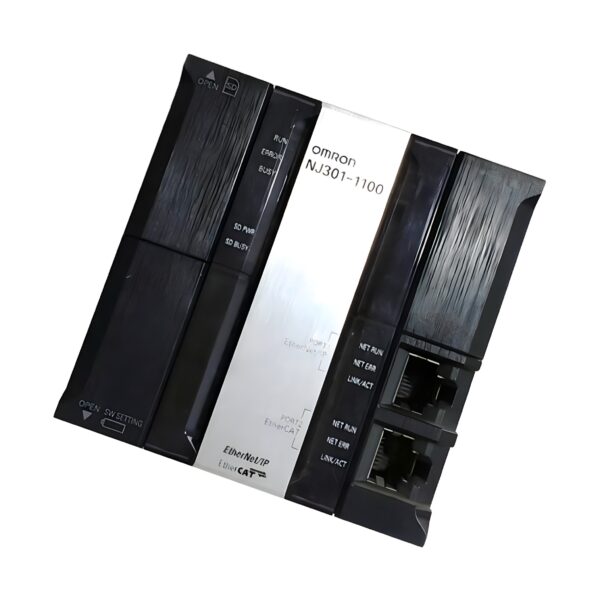

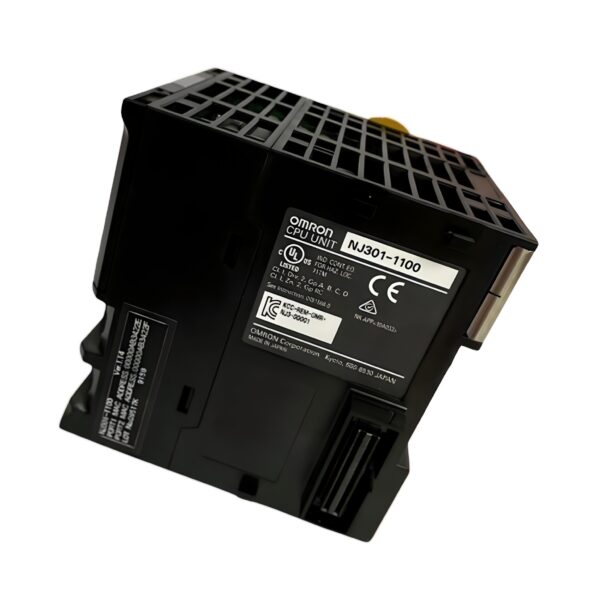

Omron NJ301-1100 Sysmac NJ3 Machine Automation Controller

The Omron NJ301-1100 is a high-performance machine automation controller from the Sysmac NJ3 series, designed for fast, deterministic control in motion, sequence, and networked systems. This compact controller integrates real-time motion control (4 synchronous servo axes), EtherCAT Master, EtherNet/IP, and a robust IEC 61131-3 programming environment, all in a single platform.

With 5 MB of program memory, 2.5 MB of variable memory, and support for up to 192 EtherCAT nodes, the NJ301-1100 is ideal for mid-range machines demanding fast cycle times, integrated safety, and scalable architecture.

Technical Specifications

Model: NJ3011100
Series: Sysmac NJ3
Controller Type: Machine Automation Controller (MAC)
Mounting Type: DIN Rail (35 mm)
Weight (Unpacked): 530 g
Dimensions (W × H × D): 90 × 96 × 150 mm
Cooling Method: Natural air cooling
Protection Class: IP20 (when installed in enclosure)

Performance & Memory

• Controller Functionality: Motion control, Sequence control
• Program Memory: 5 MB
• Variables Memory: 2.5 MB
• Primary Task Period: 0.5 ms
• Maximum Number of Synchronous Axes: 4
• Maximum Number of Axes (incl. virtual): 15
• Maximum Remote I/O Nodes (EtherCAT): 192
• Maximum Expansion Units: 40 (via CJ-series I/O Bus)

Communication Interfaces

• Integrated Ports:
  • 1× EtherCAT Master (for motion & I/O)
  • 1× EtherNet/IP Port (for HMI, PLC, SCADA, robots)
  • 1× USB Port (programming & diagnostics)
• Optional Communication Interfaces via Units:
  • Serial: RS-232C, RS-422/485
  • Fieldbus: DeviceNet (Master/Slave), PROFIBUS DP (Master/Slave)
  • Ethernet: PROFINET, MODBUS TCP (Master/Slave), EtherCAT Slave
  • Other: CompoNet, CANopen

Software & Programming

• Programming Environment: Sysmac Studio (IEC 61131-3 compliant)
• Supported Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
• Simulation: Offline simulation for logic and motion
• Safety Integration: Supports safety over EtherCAT with NX-S modules
• Diagnostics & Logging: Extensive built-in system and motion diagnostics

Environmental & Electrical

• Power Supply Voltage: 24 VDC ±10%
• Power Consumption: 11 W (typical)
• Operating Temperature: 0°C to 55°C
• Storage Temperature: –25°C to +70°C
• Relative Humidity: 10–95% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 (5–8.4 Hz, 3.5 mm; 8.4–150 Hz, 9.8 m/s²)
• Shock Resistance: IEC 60068-2-27 (150 m/s², 3 times in 6 directions)

Application Use Cases

Suitable for:

• Synchronized motion in pick-and-place and robotics
• Multi-axis packaging lines
• Mid-size manufacturing systems with distributed EtherCAT I/O
• Integration with HMI, SCADA, and safety controllers
• High-speed machine control requiring <1 ms scan time

Key Features & Benefits

✅ Real-time 4-axis motion control with 0.5 ms task scan.

✅ Integrated EtherCAT Master & EtherNet/IP for seamless networking.

✅ Modular CJ I/O system with up to 40 expansion units.

✅ Sysmac Studio compatibility for unified logic, motion, and safety programming.

✅ 192 remote nodes supported via EtherCAT.

📦 Available Now from Drive Outlet Megastore

The Omron NJ301-1100 combines fast logic execution, precise motion control, and extensive connectivity—making it an optimal choice for automation professionals building modern, integrated machines.

Looking for NX I/O modules, servo drives, or Sysmac Studio licensing to pair with your NJ3 controller? Contact our automation team for a configured solution.

Omron Sysmac: Integrated control. Delivered by Drive Outlet.
