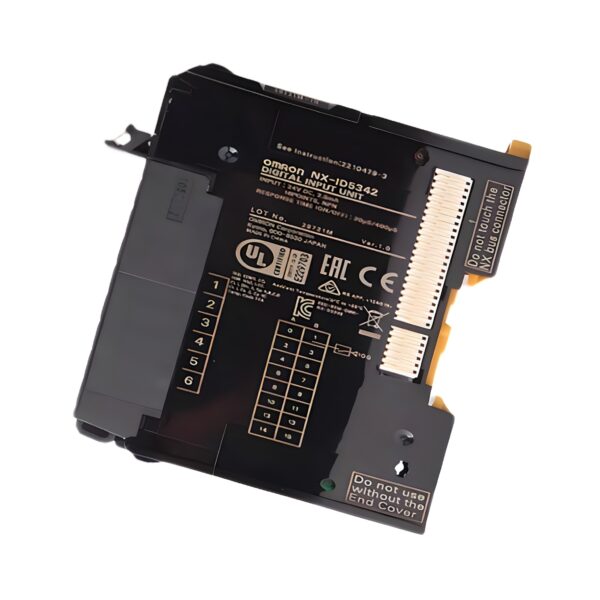

Omron NX-ID5342 Digital Input Unit

The Omron NX-ID5342 is a compact digital input module for the NX-series distributed I/O system, offering 16 standard-speed NPN inputs for 24 VDC signals. Designed for space-constrained control cabinets, it provides reliable signal acquisition with minimal footprint and fast response times from 0.02 to 0.4 ms.

Featuring a screwless push-in connector and just 12 mm width, the NX-ID5342 streamlines wiring and simplifies installation while maintaining industrial-grade reliability and compatibility with high-speed controllers over the NX I/O bus.

Technical Specifications

Model: NX-ID5342
Series: NX Series I/O
Module Type: Digital Input Unit
Number of Inputs: 16 channels
Input Type: NPN (sinking)
Rated Input Voltage: 24 VDC
Input Delay: 0.02 to 0.4 ms (configurable)
Signal Processing Modes: Free running, standard speed, synchronous
I/O Bus System: NX I/O Bus

Electrical Specifications

• Power Supply: Supplied via NX I/O bus
• Input Current: 2.0 mA per point (typical)
• Input Voltage Range: 15–28.8 VDC
• Input Threshold Voltage: ON: 15 V min / OFF: 5 V max
• Internal Current Consumption: Approx. 0.6 W
• Overvoltage Protection: Yes (built-in clamping)

Communication Interfaces

• Bus Interface: NX high-speed I/O bus
• Protocol Configuration: Managed via Sysmac Studio
• I/O Mapping: Auto-detected
• Status Monitoring: Per-channel diagnostics via PLC

Mechanical Specifications

• Mounting: DIN rail
• Unit Dimensions (H × W × D): 104.5 × 12 × 80.1 mm
• Weight: 87 g
• Connection Type: Push-in (screwless terminal block)
• Wiring Method: 1-wire signal per channel
• Enclosure Material: Flame-retardant industrial-grade plastic

Environmental Specifications

• Operating Temperature: 0°C to 55°C
• Storage Temperature: –25°C to 70°C
• Operating Humidity: 10% to 95% RH (non-condensing)
• Ingress Protection: IP20
• Vibration Resistance: 5 to 8.4 Hz, 3.5 mm; 8.4 to 150 Hz, 9.8 m/s²
• Shock Resistance: 150 m/s², 3 times each direction

Compliance & Certifications

• CE Marked: Yes
• RoHS Compliant: Yes
• UL / cUL Listed: Yes
• Standards: EN61131-2, IEC61010

Key Features & Benefits

✅ 16 NPN Digital Inputs. Suitable for a wide range of 24 VDC sensing and control devices.

✅ Standard Speed Response. Configurable delay down to 0.02 ms for responsive control cycles.

✅ Slim 12 mm Design. Saves panel space while maintaining full signal channel density.

✅ Push-In Wiring. Enables fast, tool-free installation and reliable connections.

✅ NX System Integration. Seamlessly connects via high-speed NX I/O bus with auto-detection.
