NX-OD6256

Omron NX-OD6256 Digital Output Module

£224.19 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsOmron
Model NX-OD6256
Product Type Digital Output Module
Output Current per Channel 0.5 A
Series NX-Series
Output Type PNP (sourcing)
Output Voltage Range 15.0–28.8 V DC
Rated Output Voltage 24 V DC
Mounting Type DIN rail (NX I/O Bus)
Dimensions (W × H × D) 24 × 100 × 71 mm
Degree of Protection IP20 (panel-enclosed use recommended)
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: NX-OD6256 Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

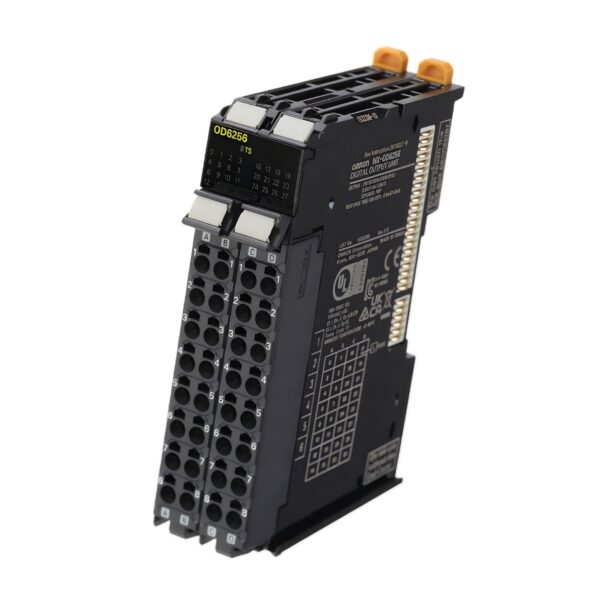

Omron NX-OD6256 Digital Output Module

The Omron NX-OD6256 is a 32-channel digital output module for the NX I/O system , designed to deliver 24 V DC PNP outputs at up to 0.5 A per point . Built for high-density control applications, this compact 24 mm-wide module supports standard-speed switching with synchronous or free-running signal processing modes.

Technical Specifications

Model NX-OD6256
Series NX-Series
Product Type Digital Output Module
Mounting Type DIN rail (NX I/O Bus)
Weight (Unpacked) 130 g
Dimensions (W × H × D) 24 × 100 × 71 mm
Degree of Protection IP20 (panel-enclosed use recommended)

Electrical & I/O Characteristics

Number of Digital Outputs 32
Output Type PNP (sourcing)
Output Voltage Range 15.0–28.8 V DC
Rated Output Voltage 24 V DC
Output Current per Channel 0.5 A
Maximum Output per Unit 4 A total
Short-Circuit Protection Not explicitly defined (refer to datasheet)
ON/OFF Delay Time 0.5–1.0 ms
Signal Processing Standard speed, synchronous or free running

Connection & Interface

Connection Method Screwless push-in terminal
Number of I/O Connectors 1
Detachable Connector No
Wiring Method 1-wire
I/O Bus Compatibility NX CPUs and EtherCAT couplers (e.g., NX102, NX-ECC)

Environmental & Mechanical

Operating Temperature 0 to 55°C
Storage Temperature –25 to 70°C
Operating Humidity 10–95% RH (non-condensing)
Altitude Up to 2000 m
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27
