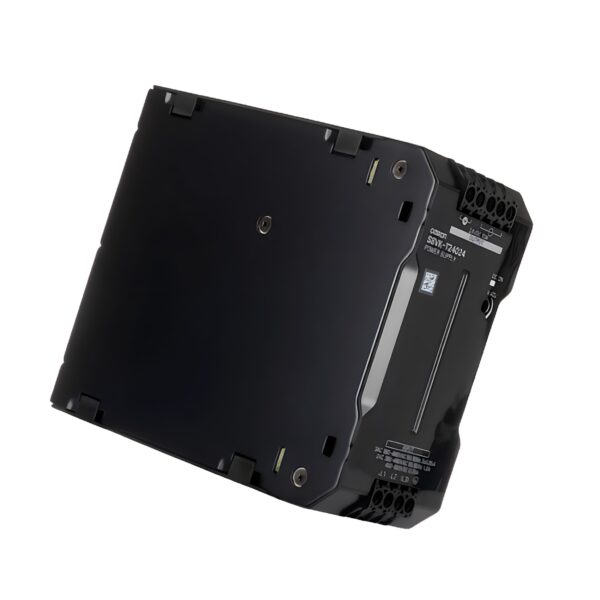

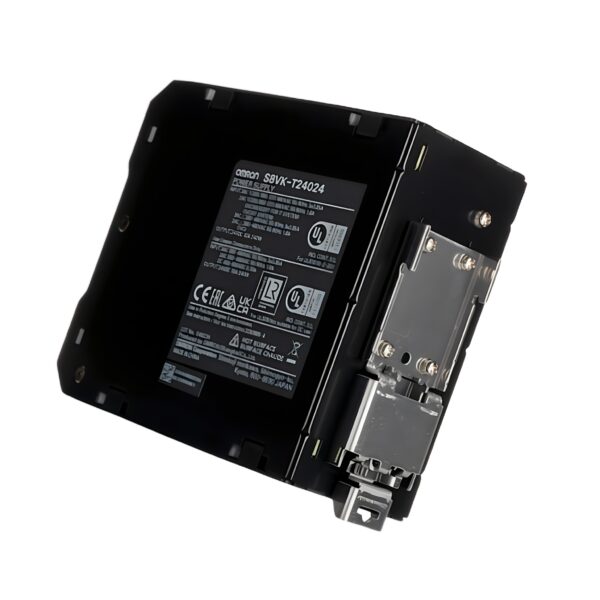

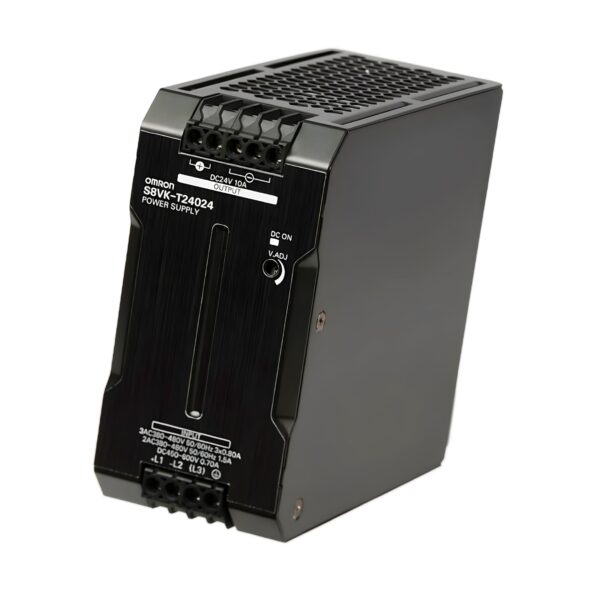

Omron S8VK-T24024 DIN Rail Power Supply

The Omron S8VK-T24024 is a robust and compact 3-phase power supply from the S8VK-T Pro series, delivering 24 V DC at 10 A (240 W) with superior reliability and environmental resistance. Engineered for continuous industrial operation, it features wide AC and DC input ranges, enhanced temperature tolerance, and conformal coating for harsh conditions.

This DIN-rail mountable unit is ideal for control panels and factory automation systems that require efficient, long-lasting performance from a compact footprint.

Technical Specifications

Model: Omron S8VKT24024
Series: S8VK-T Pro
Product Type: Switch Mode Power Supply
Mounting Type: DIN rail
Weight (Unpacked): Approx. 1.0 kg
Dimensions (W × H × D): 60 × 125 × 140 mm
Housing Type: Book-type, coated for industrial environments

Electrical Characteristics

Input:

• Rated Supply Voltage (AC): 3 × 380–480 V AC (50/60 Hz)
• Allowable Input Range (AC): 3 × 320–576 V AC
• Allowable Input Range (DC): 450–810 V DC
• Power Boost: 120% (up to 12 A for short durations)
• Input Terminals: Screw type

Output:

• Output Voltage: 24 V DC
• Rated Output Current: 10 A
• Output Power: 240 W
• Voltage Adjustment Range: Internal potentiometer
• Efficiency: 89% (typical)
• Residual Ripple: ≤ 100 mV (typical)

Environmental & Mechanical

• Operating Temperature: –40°C to +70°C (with derating above 55°C)
• Storage Temperature: –40°C to +85°C
• Humidity: 20–95% RH (non-condensing)
• Cooling Method: Natural air convection
• Protection Features: Overvoltage, overload, short-circuit, and overtemperature protection
• Conformal Coating: Yes (resistant to dust, humidity, corrosive gas)
• Altitude Rating: Up to 2000 m

Applications

Perfect for:

• Industrial control panels
• Distributed 24 V DC supply systems
• Harsh environments requiring coated electronics
• Factory automation and packaging lines
• Equipment operating in wide voltage networks

Key Features & Benefits

✅ Wide Input Range: Operates from 320–576 V AC or 450–810 V DC.

✅ High Reliability: Designed for 24/7 uptime in demanding conditions.

✅ Power Boost Function: Delivers 120% peak current for startup loads.

✅ Compact Book Format: Saves valuable space on DIN rails.

✅ Conformal Coating: Protects against moisture, dust, and corrosive atmospheres.

📦 Available from Drive Outlet Megastore

The Omron S8VK-T24024 combines power, performance, and protection—ideal for critical 24 V DC systems in industrial and automation settings. Built to endure, designed to perform.
