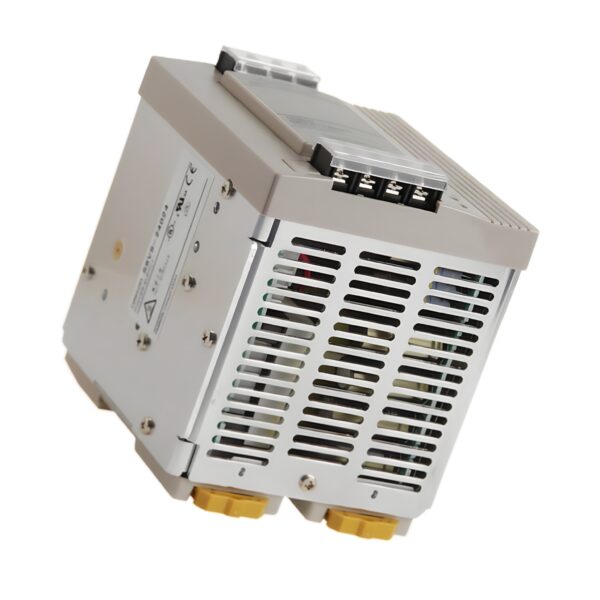

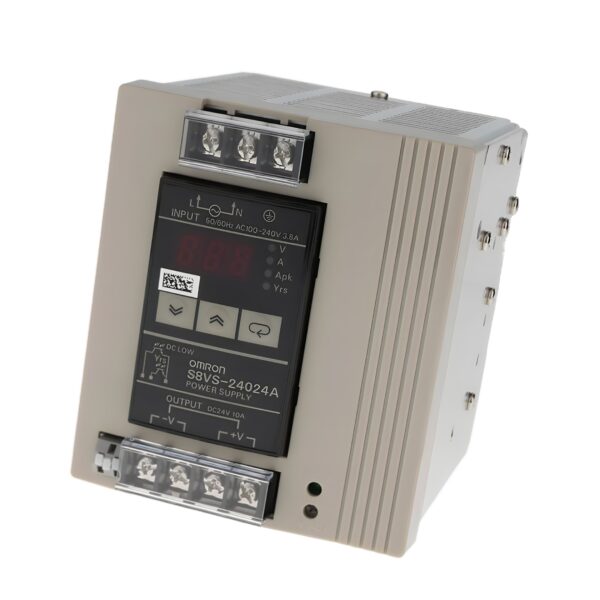

Omron S8VS-24024A DIN Rail Power Supply

The Omron S8VS-24024A is a high-reliability DIN rail-mounted switch-mode power supply delivering 240 W at 24 VDC / 10 A output. This unit is engineered for modern automation systems with integrated digital display monitoring for voltage, current, and peak current—plus a maintenance monitor function that supports predictive diagnostics through a settable alarm output.

Designed for single-phase 100–240 VAC systems and offering wide voltage tolerance, the S8VS-24024A delivers efficient, safe, and intelligent DC power for demanding industrial environments.

Technical Specifications

Model: S8VS24024A
Series: S8VS
Product Type: Switch-mode Power Supply
Mounting Type: DIN Rail
Power Output: 240 W
Weight (Unpacked): Approx. 900 g
Dimensions (W × H × D): 100 × 115 × 125.2 mm
Degree of Protection: IP20 (panel enclosed)
Display: Built-in digital screen (voltage, current, peak data)

Electrical Characteristics

• Input Voltage Range (AC): 100–240 V (rated), 85–264 V (allowable)
• Input Voltage Range (DC): 80–370 V (allowable)
• Input Frequency: 50/60 Hz
• Output Voltage: 24 VDC
• Rated Output Current: 10 A
• Efficiency: 88% (typical)
• Power Derating: Above 50°C (linear to 60°C)
• Hold-up Time: ≥20 ms (at full load, 200 VAC input)

Monitoring & Display

• Digital Monitoring: Live output voltage, current, and peak current
• Maintenance Monitor: Internal function to track lifecycle and usage
• Alarm Output:
  • Transistor (sinking type only)
• Alarm Configuration: Adjustable setpoint for maintenance scheduling
• Display Interface: Segment display with operation indicators

Connectivity & Interfaces

• Communication Ports: None
• Alarm Output Terminals: Screw type (sinking transistor output)
• Terminal Type: Screw terminals (input/output and alarm)
• Output Branches: Single channel

Environmental & Mechanical

• Operating Temperature: –10 to +60°C
• Storage Temperature: –25 to +85°C
• Operating Humidity: 20–90% RH (non-condensing)
• Vibration Resistance: IEC 60068-2-6 compliant
• Shock Resistance: IEC 60068-2-27 compliant
• Altitude: Up to 2000 m
• Cooling Method: Natural air convection (fanless)

Applications

Ideal for:

• Mid-range PLC and HMI panel supply
• Control cabinet voltage regulation
• Automated machinery with predictive maintenance goals
• Compact panels requiring power diagnostics
• Distributed I/O or field devices

Key Features & Benefits

✅ Compact High Output: 240 W at 24 VDC / 10 A in a narrow format.

✅ Live Performance Display: Shows voltage, current, and peak readings.

✅ Maintenance Monitoring: Avoid downtime with predictive alarm function.

✅ Global Compatibility: Wide AC/DC input range.

✅ Industrial Design: Built for harsh electrical and mechanical conditions.

📦 Available from Drive Outlet Megastore

The Omron S8VS-24024A is the ideal choice for control panel engineers seeking compact power solutions with advanced diagnostics. Easy installation, robust performance, and smart monitoring make it a standout component in modern automation.

Need terminal blocks, DC distribution units, or backup modules? Let our team support your build.

Omron S8VS: Power. Protected. Delivered by Drive Outlet.
