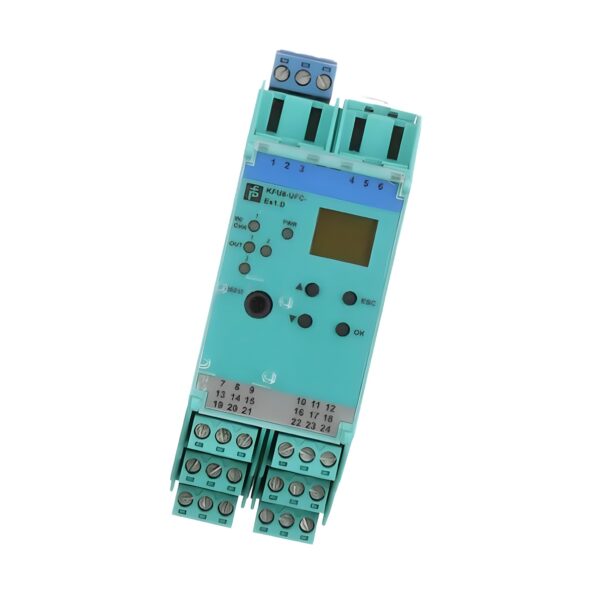

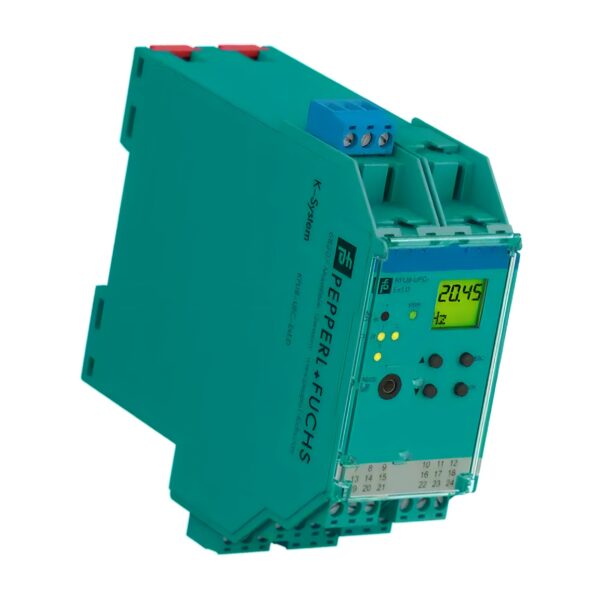

Pepperl Fuchs KFU8-UFC-Ex1.D Frequency Converter (231197)

P&F KFU8-UFC-Ex1.D is a 1-channel universal frequency converter and trip amplifier for use in intrinsically safe environments, with compatibility for a wide AC/DC supply range. It accepts NAMUR sensors or dry contacts and converts digital input signals into a proportional analog 0/4–20 mA output. The device includes relay and transistor outputs, line fault detection, startup override, and SIL 2 certification—making it ideal for reliable signal processing and switching tasks in Ex zones.

Technical Specifications

• Model: KFU8-UFC-Ex1.D
• Function: Frequency Converter with Trip Alarm and Analog Output
• Channels: 1
• Input Signal: NAMUR sensors or dry contacts
• Input Frequency: 0.001 … 5000 Hz
• Analog Output: 0/4 … 20 mA
• Relay Outputs: 2 (terminals 10–12, 16–18)
• Transistor Output: 1 passive electronic (terminals 19+, 20-)
• Power Supply: 20–90 V DC / 48–253 V AC
• Mounting: 35 mm DIN rail (EN 60715)
• Connection Type: Screw terminals

Electrical Features

• Line Fault Detection: NAMUR-compliant (NE43)
• Start-Up Override: 1–1000 s adjustable
• Relay Contact Rating: 253 V AC / 2 A, 40 V DC / 2 A
• Analog Output Load: Max. 650 Ω
• Resolution: 0.1% input / < 10 µA output
• Accuracy: 0.1% input / < 20 µA output
• Open Loop Voltage: Max. 24 V DC
• Configuration: On-device keypad or via PACTware

Environmental Conditions

• Temperature Range: -20 … 60 °C
• Protection Rating: IP20
• Weight: Approx. 300 g
• Dimensions: 40 x 119 x 115 mm (W x H x D)
• Housing Type: C2
• Approvals: ATEX, IECEx, FM

Hazardous Area Compliance

• Zone Classification: Zone 0, 1, 2 / Div. 1, 2
• ATEX Marking: II (1) G [Ex ia Ga] IIC / II (1) D [Ex ia Da] IIIC
• IECEx Marking: [Ex ia Ga] IIC / Ex nA IIC T4 Gc
• SIL Rating: SIL 2 (IEC/EN 61508 / 61511)

Key Features & Benefits

✅ Universal Power Supply: Accepts both wide-range AC and DC input.

✅ Trip Alarm + Converter: Combines switching logic and analog output in one unit.

✅ Multiple Output Options: 2 relay outputs, 1 transistor output, and 1 analog output.

✅ SIL 2 Certified: Ideal for safety-related signal transmission.

✅ HART-Compatible: Designed for diagnostic-enabled field devices.
