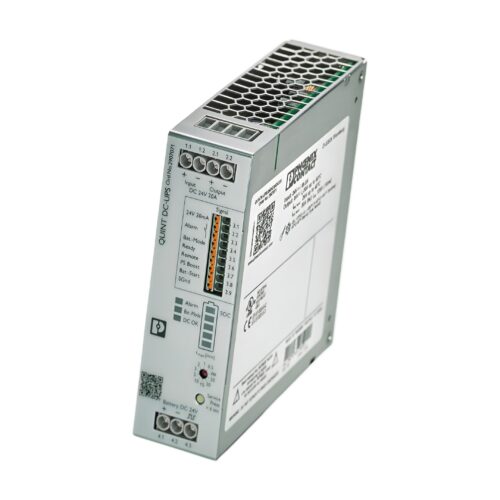

Phoenix Contact 2320238 Power Supply – QUINT-UPS/ 24DC/ 24DC/20

The Phoenix Contact QUINT-UPS/ 24DC/ 24DC/20 is a high-performance DC uninterruptible power supply (UPS) featuring IQ Technology for intelligent battery management, 24 V DC input/output, and 20 A nominal current. Designed for DIN rail installation, this compact UPS ensures seamless power continuity and real-time diagnostics for critical control systems.

It features built-in relay signaling, selective fuse breaking (SFB) support, and is compatible with energy storage modules from 3 Ah to 200 Ah, allowing custom-tailored backup durations for industrial automation and process control applications.

Technical Specifications

Model: QUINT-UPS/ 24DC/ 24DC/20
Part Number: Phoenix Contact 2320238
Product Type: DC Uninterruptible Power Supply
Series: QUINT UPS
Input Voltage Range: 18–30 V DC
Nominal Input Voltage: 24 V DC
Output Voltage Range: 18–30 V DC
Nominal Output Voltage: 24 V DC
Nominal Output Current: 20 A (up to 60°C)
Peak Output Current (POWER BOOST):

• Mains: 26 A
• Battery: 27 A
  SFB (Selective Fuse Breaking): 120 A / 12–15 ms
  Output Power: 480 W
  Efficiency:

• 98% (mains)

• 98% (battery)

Input & Output Characteristics

• Input Current (Max): 32.9 A
• Charging Current: 6.9 A max
• No Load Consumption: 10.5 mA
• Output Current Limit: Based on upstream current-limiting device
• Derating: 2.5%/K above 60°C
• Buffer Time (Example): 1 hour with 38 Ah battery module
• Parallel Operation: Up to 2 units with redundancy module
• Series Operation: Not supported

Energy Storage Support

• Nominal Battery Voltage: 24 V DC
• End-of-Charge Voltage: 24–29 V DC (temp-compensated)
• Battery Capacity Supported: 3–200 Ah
• Charging Current Range: 0.2–5 A
• Battery Presence Monitoring: Every 60 seconds
• Temperature Compensation: 42 mV/K
• IQ Technology: Yes – for state of charge, service life, and energy storage diagnostics

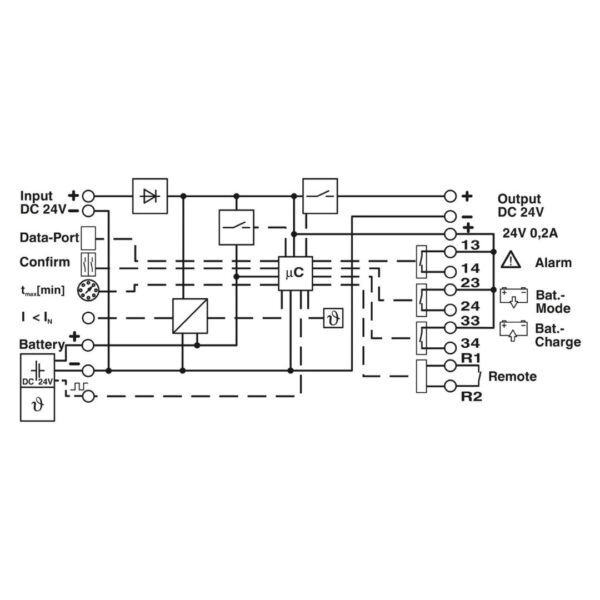

Monitoring & Signaling

Relay Outputs (Floating):

• Alarm
• Battery Charging
• Battery Mode
  (Max 30 V AC/DC, ≤100 mA)

Status LEDs:

• Power In OK (Green)
• Alarm (Red)
• Battery Charge Status (Green/Red bar graph)
• Battery Mode (Yellow)

Interface Port: IFS (for software integration)

Mechanical & Installation Data

Mounting Type: DIN rail (NS 35, EN 60715)
Mounting Position: Horizontal
Housing Material: Zinc-plated steel / Aluminum (AlMg3)
Enclosure Rating: IP20
Dimensions (W × H × D): 40 × 130 × 125 mm
Alternative Housing (W × H × D): 123 × 130 × 43 mm
Connection Method: Screw terminal (M4)
Stripping Length: 8 mm
Conductor Cross Sections:

• Rigid: 0.2–6 mm²
• Flexible: 0.2–4 mm²
• AWG: 12–10

Environmental & Compliance

• Operating Temperature: –25°C to +70°C
• Storage Temperature: –40°C to +85°C
• Altitude: Up to 6000 m
• Relative Humidity: ≤ 95% (non-condensing)
• Vibration: 2.3g (15–150 Hz)
• Shock: 30g / 18 ms (IEC 60068-2-27)
• MTBF (40°C): > 500,000 hours
• Protection Class: III
• Climatic Category: 3K3 (per EN 60721)

Applications

Ideal For:

• Industrial automation systems with critical uptime requirements
• Backup power for PLCs, IPCs, and controllers
• Power supply continuity in process, packaging, and energy sectors
• Systems where intelligent battery management and diagnostics are essential

Key Features & Benefits

✅ IQ Technology: Monitors battery charge, health, and remaining runtime.

✅ 480 W Power Output: Reliable 20 A DC supply under full load.

✅ Full Signaling Suite: Alarm, battery mode, and charge indication via relays and LEDs.

✅ High Efficiency: Up to 98% for low power loss and long service life.

✅ DIN Rail Ready: Compact 40 mm housing fits in tight control cabinets.
