Phoenix Contact 2907919 Surge Protection Device – PLT-SEC-T3-230-FM-UT

£166.69 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsPhoenix Contact
Model PLT-SEC-T3-230-FM-UT
Product Type Surge Protection Device (SPD)
Part Number 2907919
Operating Voltage 250 V AC / 125 V DC
Mounting Type DIN rail, 1 Div. width
Signaling Type Optical (front LED), Remote contact
Remote Indicator Contact Type Changeover (SPDT)
Connection Type Screw terminal (M3 thread)
Max Continuous Operating Voltage (UC) 264 V AC / 240 V DC
Nominal Voltage (UN) 230–240 V AC (TT/TN-S) / DC
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

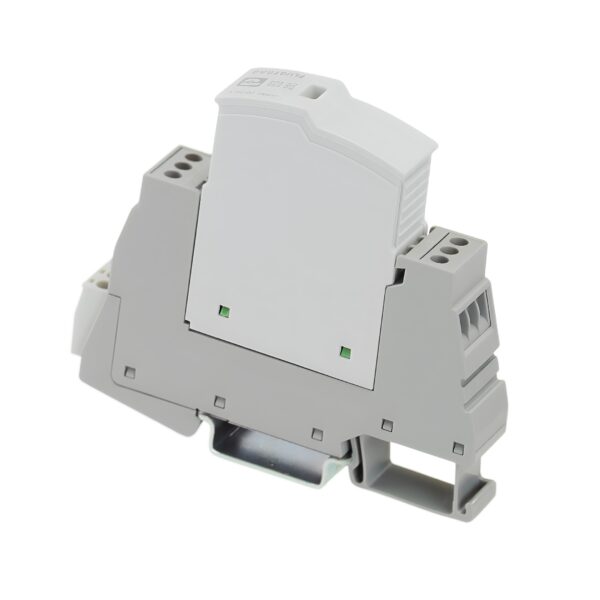

Phoenix Contact 2907919 Surge Protection Device – PLT-SEC-T3-230-FM-UT

The Phoenix Contact PLT-SEC-T3-230-FM-UT is a compact, pluggable Type 2/3 surge protection device designed for single-phase power networks . It features both visual fault indicators and remote signaling , supporting protection modes for L-N, L-PE, and N-PE .

Technical Specifications

Model PLT-SEC-T3-230-FM-UT
Part Number 2907919
Product Type Surge Protection Device (SPD)
Surge Protection Class Type 2 / Type 3
Nominal Voltage (UN) 230–240 V AC (TT/TN-S) / DC
Max Continuous Operating Voltage (UC) 264 V AC / 240 V DC
Rated Load Current (IL) 26 A (at 30°C)
Mounting Type DIN rail, 1 Div. width
Dimensions (W × H × D) 17.7 × 93.4 × 74.5 mm

Electrical Characteristics

Protective Modes L-N, L-PE, N-PE
Nominal Discharge Current (In) 5 kA (8/20 µs)
Max Discharge Current (Imax) 10 kA (8/20 µs)
Combination Wave (UOC) 6 kV
Short-Circuit Current Rating (ISCCR) 10 kA AC
Max Backup Fuse (Branch Wiring) 32 A (gG / B / C type)
Voltage Protection Level (Up) L-N: ≤ 1.25 kV (UOC), ≤ 1.4 kV (at In) L-PE / N-PE: ≤ 1.4 kV
Response Time (tA) L-N: ≤ 25 ns L-PE / N-PE: ≤ 100 ns
Residual Voltage (Ures) L-N: ≤ 1.15–1.25 kV (2–3 kA) L-PE / N-PE: ≤ 1.1–1.2 kV (2–3 kA)
TOV Withstand Behavior L-N: 400 V AC (5 s), 457 V AC (120 min) L-PE / N-PE: Up to 1464 V AC (200 ms safe failure mode)

Remote Signaling & Indicators

Signaling Type Optical (front LED), Remote contact
Remote Indicator Contact Type Changeover (SPDT)
Operating Voltage 250 V AC / 125 V DC
Switching Current 0.5 A (AC/DC)
Contact Resistance Low-leakage (≤ 0.5 A switching)

Connection & Installation Data

Connection Type Screw terminal (M3 thread)
Tightening Torque 0.5 Nm
Installation 35 mm DIN rail, 1 module width (17.7 mm)
Conductor Cross Section Rigid: 0.2–4 mm² Flexible: 0.2–2.5 mm² AWG: 24–12

Mechanical & Material Properties

Design Two-section DIN rail module with pluggable element
Housing Material PA 6.6-FR, 20% glass fiber reinforced
Color Light gray (connector), gray (base)
Flammability Rating UL 94 V-0
CTI Value 600 (insulating material)

Environmental & Reliability

Degree of Protection IP20
Operating Temperature –40°C to +80°C
Storage Temperature –40°C to +80°C
Max Altitude 2000 m (≤250 V), 6000 m (≤150 V)
Humidity (Operating) 5% to 95% RH
Shock Resistance 30 g (11 ms half-sine)
Vibration Resistance 5 g (5–500 Hz)
