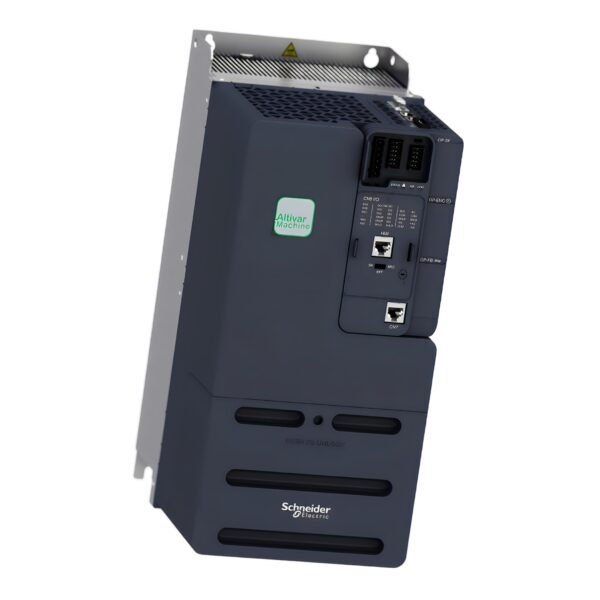

Schneider ATV340D11N4E Inverter Drive – 11kW, 400V, IP20

The Schneider ATV340D11N4E is a high-performance Altivar Machine ATV340 inverter drive, delivering 11 kW of heavy-duty motor control on a 400 V three-phase supply. It features an integrated EMC filter, Ethernet connectivity, and an IP20-rated chassis, making it ideal for panel-mounted industrial automation systems.

Engineered for demanding applications, this drive supports both synchronous and asynchronous motors in open or closed-loop control. It’s designed for machine builders seeking fast response, robust performance, and seamless integration with PLCs and HMIs.

Technical Specifications

• Model: ATV340D11N4E
• Type: Industrial Machine Variable Speed Drive

Power & Performance

• Power Rating: 11 kW (Heavy Duty) / 15 kW (Normal Duty)
• Phase: Three-phase
• Mains Voltage: 380 – 480 VAC
• Nominal Output Current: 24.0 A
• Motor Compatibility: Asynchronous & Synchronous Motors
• Braking Chopper: Integrated

Build & Design

• Enclosure Type: IP20 (IEC 60529)
• Mounting Mode: Cabinet Mount
• Communication Protocols: EtherNet/IP, Modbus Serial, Modbus TCP
• Option Slots Available: Expansion modules, I/O modules, additional communication modules

Physical Specifications

• Gross Weight: 11.180 kg
• Net Weight: 9.5 kg

Dimensions:

• Height: 385 mm
• Width: 180 mm
• Depth: 249 mm
• EAN: 3606480967054

Additional Options & Features

• Integrated EMC Filter: Class C3
• Safety Functions: STO (Safe Torque Off) SIL 3, Safe Stop 1 (SS1), Safe Brake Control (SBC/SBT)
• Operating Temperature: -15°C to 50°C (without derating)
• Switching Frequency: Adjustable (2-16 kHz)

Compliance & Standards

• Certifications: CE, UL, CSA, TÜV
• Standards: IEC 61800-5-1, IEC 61800-3, IEC 61508, IEC 13849-1
• Environmental Class: IEC 60721-3 (Industrial Applications)

Key Features & Benefits:

✅ Superior Machine Performance: High-speed response and dynamic control for automation.

✅ Seamless Integration: Compatible with SoMachine & SoMove software for easy configuration.

✅ Robust & Reliable: Designed for harsh environments, including vibration, shock, and dust resistance.

✅ Energy Efficient: Optimized motor control for reduced energy consumption.
