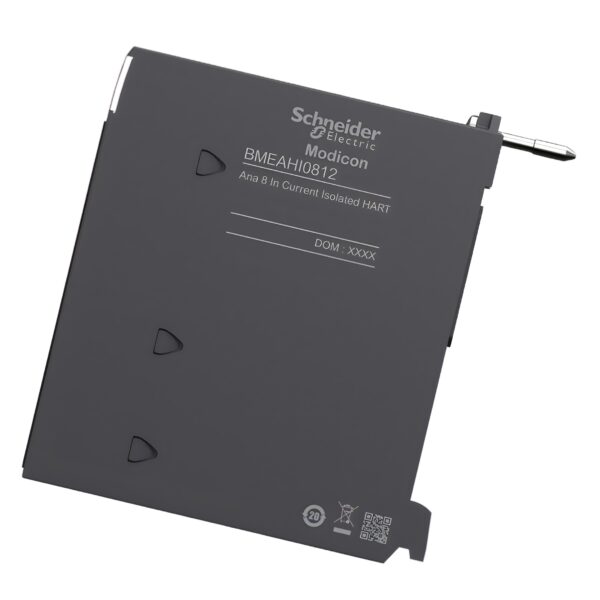

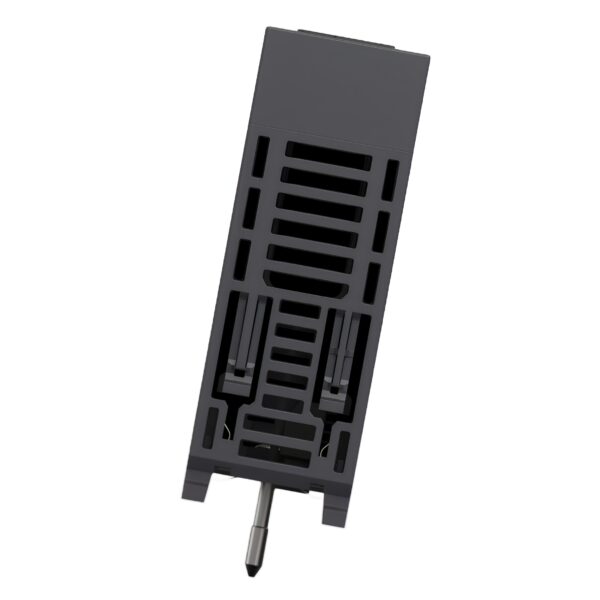

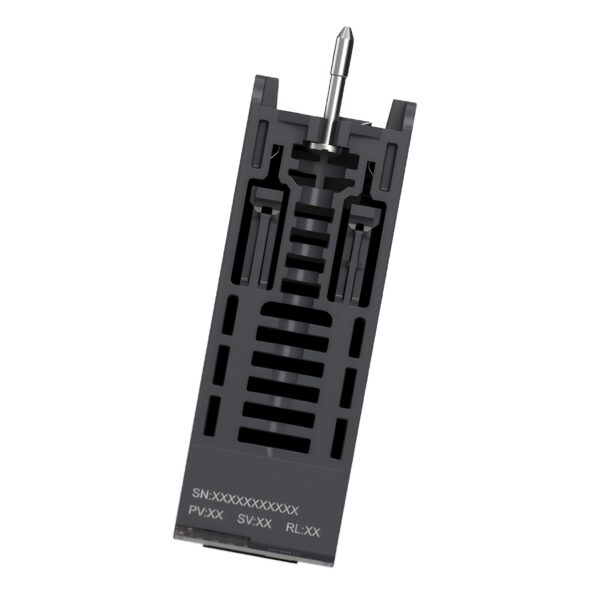

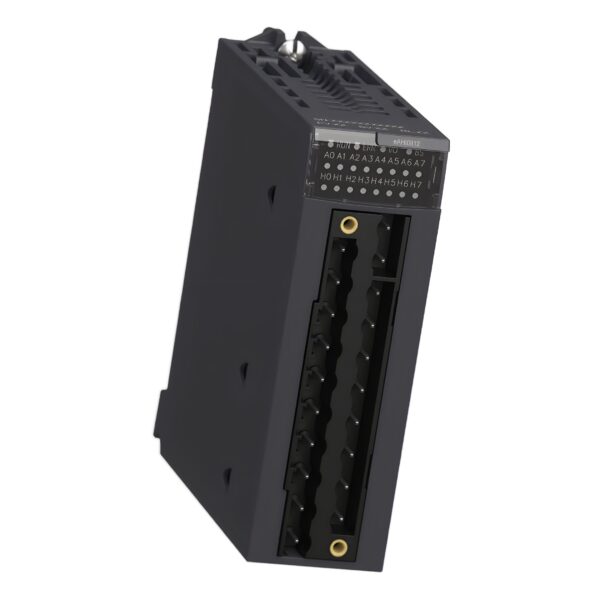

Schneider BMEAHI0812 Analog Input Module

£1,172.95 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsSchneider Electric
Model BMEAHI0812
Analog Input Type Current: 4-20 mA
Type Isolated Analog Input Module for Modicon X80 with HART Protocol
Analog Input Resolution 15 bits + sign
IP Degree of Protection IP20
Package 1 Dimensions (H x W x L) 5.70 cm x 11.20 cm x 12.00 cm
Package 2 Dimensions (H x W x L) 15.00 cm x 30.00 cm x 40.00 cm
Electrical Connection 20-way Terminal Block Telefast Connector
Analog Input Number 8
Input Impedance 250 Ω internal protective resistor (3.6 to 50 Ω)
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Schneider BMEAHI0812 Analog Input Module

The Schneider BMEAHI0812 is a high-performance Modicon X80 analog input module , providing 8 isolated high-level analog inputs with a 15-bit + sign resolution . It supports 4–20mA current inputs and is compatible with HART communication , making it ideal for process automation applications.

Technical Specifications

Model BMEAHI0812
Type Isolated Analog Input Module for Modicon X80 with HART Protocol

Performance & Capacity

Analog Input Number 8
Analog Input Type Current: 4-20 mA
Analog Input Resolution 15 bits + sign
Input Impedance 250 Ω internal protective resistor (3.6 to 50 Ω)
Measurement Error 0.15% of full scale at 25°C ≤ 0.3% of full scale from 0-60°C
Temperature Drift 50 ppm/°C
Isolation Voltage 1000V DC for 60s between channels 1400V DC for 60s between channels and ground 1400V DC for 60s between channels and bus
Checks Broken wire detection
Topology Point-to-point
Function Available I/O mapping

Connectivity & Controls

Electrical Connection 20-way Terminal Block Telefast Connector
Local Signaling 1 LED (Green) – Module Operating (RUN) 1 LED per Channel (Green) – Channel Diagnostic 1 LED (Red) – Module Error (ERR) 1 LED (Red) – I/O

Power & Environmental Specifications

Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 5% to 95% at 55°C (Non-Condensing)
IP Degree of Protection IP20
Operating Altitude 0 to 2000 m (Standard Operation) 2000 to 5000 m (With Derating Factor)

BMEAHI0812 Physical Specifications

Net Weight 0.233 kg
Package 1 Dimensions (H x W x L) 5.70 cm x 11.20 cm x 12.00 cm
Package 1 Weight 229 g
Package 2 Dimensions (H x W x L) 15.00 cm x 30.00 cm x 40.00 cm
Package 2 Weight 3.77 kg
Number of Units in Package 1 1
Number of Units in Package 2 15

Certifications & Compliance

Product Certifications CE, UL, CSA, RCM, EAC, Merchant Navy
Standards & approvals EN/IEC 61131-2EN/IEC 61010-2-201UL 61010-2-201CSA C22.2 No 61010-2-201

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether BMEAHI0812 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can BMEAHI0812 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.233 kg

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
