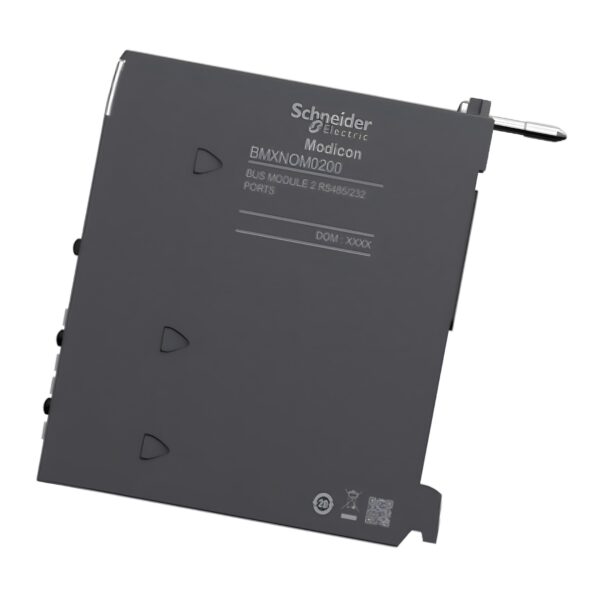

Schneider BMXNOM0200 Serial Link Module

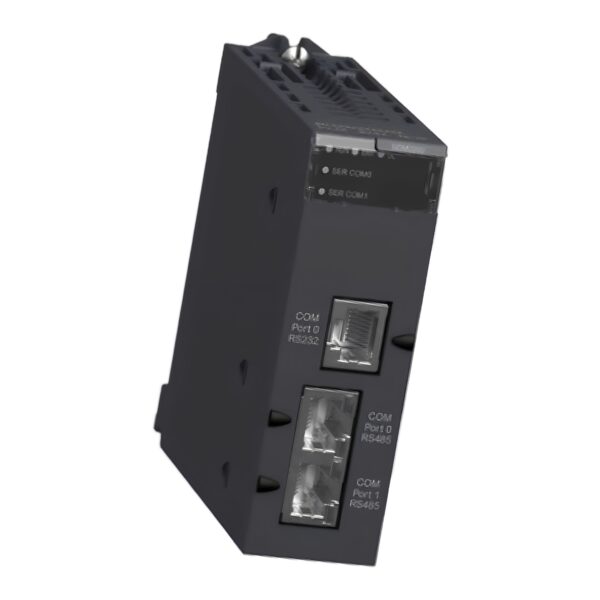

The BMXNOM0200 Schneider is a serial link communication module designed for seamless integration within the Modicon X80 platform, supporting both Modicon M340 and M580 Programmable Automation Controllers (PACs). This module features two serial communication ports, configurable as either RS-232 or RS-485, facilitating versatile connectivity options for various industrial devices and networks.

Operating with a current consumption of 80 mA at 24 V DC, the BMXNOM0200 utilizes an internal power supply via the rack. It supports Modbus (ASCII and RTU) as well as character mode communication protocols, ensuring compatibility with a wide range of serial devices. The module includes LED indicators for module status and serial communication activity, enhancing diagnostics and monitoring. Compliant with international standards such as EN 61131-2, EN 61000-6-2, EN 61000-6-4, and EN 61010-2-201, and featuring an IP20 protection rating, this module is ideal for demanding industrial environments requiring reliable and flexible serial communication solutions.

Technical Specifications

Model: BMXNOM0200
Type: Serial Links Module for Modicon X80

Performance & Capacity

• Integrated Connection Type:
  • RS232 (RJ45, 115.2 kbit/s, 8 Wires)
  • RS485 (RJ45, 57.6 kbit/s, 1 Twisted Pair)
• Supported Modes:
  • Modbus RTU
  • Character Mode

Power & Environmental Specifications

• Current Consumption: 80 mA at 24 V DC
• Power Supply: Internal via Rack
• Operating Temperature: 0°C to 60°C
• Relative Humidity: 10% to 95% (Non-Condensing)
• IP Degree of Protection: IP20

Physical Specifications

• Net Weight: 0.23 kg
• Package 1 Dimensions (H x W x L): 5.30 cm x 11.70 cm x 12.00 cm
• Package 1 Weight: 217 g
• Package 2 Dimensions (H x W x L): 15.00 cm x 30.00 cm x 40.00 cm
• Package 2 Weight: 3.600 kg
• Package 3 Dimensions (H x W x L): 75.00 cm x 60.00 cm x 80.00 cm
• Package 3 Weight: 65.940 kg
• Number of Units in Package 1: 1
• Number of Units in Package 2: 15
• Number of Units in Package 3: 240

Certifications & Compliance

• Product Certifications: CE, UL
• Standards:
  • EN/IEC 61131-2
  • EN/IEC 61010-2-201
  • EN/IEC 61000-6-4
  • EN/IEC 61000-6-2

Key Features & Benefits:

✅ Dual Serial Ports: 2 RS-485/232 ports for Modbus and Character Mode.

✅ Reliable Communication: Supports up to 115.2 kbit/s (RS232) and 57.6 kbit/s (RS485).

✅ Advanced Industrial Performance: Ideal for medium to large process applications.

✅ Plug-and-Work Solution: Simplifies system configuration and startup.
