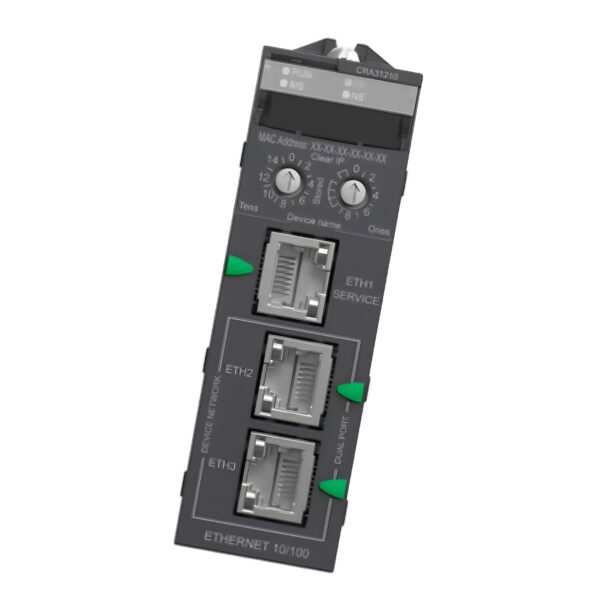

Schneider BMECRA31210 Drop Adapter With Ethernet Backplane
The BMECRA31210 Schneider is a 3-port Ethernet Remote I/O (RIO) drop adapter designed for seamless integration within the Modicon X80 platform, supporting both Modicon M580 and M340 Programmable Automation Controllers (PACs). This adapter facilitates efficient communication between remote I/O modules and the main controller via an Ethernet backplane, enhancing scalability and flexibility in industrial automation systems.
Equipped with three RJ45 Ethernet ports supporting 10/100 Mbit/s transmission rates, the BMECRA31210 ensures robust data exchange and supports Ring topology through the Rapid Spanning Tree Protocol (RSTP). It operates with a current consumption of 1800 mA at 3.3 V DC and offers features such as 10 ms time-stamped data recording, port mirroring, and diagnostics for remote I/O devices. Compliant with international standards including EN/IEC 61131-2, EN/IEC 61010-2-201, and EN/IEC 61000-6-4, this adapter is ideal for medium to large process applications requiring reliable and high-speed remote I/O communication.
Technical Specifications
Model: BMECRA31210
Type: Ethernet Remote Input/Output (RIO) Drop Adapter for Modicon X80
Performance & Capacity
- Integrated Connection Type:
- 1 x RJ45 (Service Port for Distributed Equipment)
- 2 x RJ45 (Ethernet RIO Network, RSTP Support)
- Communication Network Type:
- IPv4 (Internet Protocol)
- Supported Protocols & Communication Services:
- EtherNet/IP Adapter
- RSTP (Ring Topology Support)
- Ethernet RIO Network
- Quality of Service (QoS)
- CIP Explicit Messaging (Server)
- Modbus TCP Server for Module Diagnostics
- DHCP Client
- TFTP Client
- FTP Client
- FDR Client
- SNTP Client
- SNMP Agent
- Cybersecurity Features:
- Enable/Disable Communication Ports
- Syslog Protocol Support
- Exchange Mode:
- Half Duplex / Full Duplex
- Auto-Negotiation
- Auto MDIX
- Transmission Rate:
- 10/100 Mbit/s
- Supported Topology:
- Ring
- Local Signaling:
- 1 LED (Green) – Module Active (RUN)
- 1 LED (Red) – Module Error (ERR)
- 1 LED (Green/Red) – Module Status (MOD STATUS)
- 1 LED (Green/Red) – Network Communication Status (NET STATUS)
- 1 LED (Green) – Ethernet Link Diagnostics (STS)
Power & Environmental Specifications
- Current Consumption: 1800 mA
- Input Voltage: 3.3 V DC
- Power Supply: Internal via Rack
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: Up to 95% (Non-Condensing)
- Operating Altitude: Up to 2000 m
- Transport Altitude: Up to 3000 m
- IP Degree of Protection: IP20
BMECRA31210 Physical Specifications
- Net Weight: 0.225 kg
- Package 1 Dimensions (H x W x L): 5.50 cm x 11.20 cm x 12.00 cm
- Package 1 Weight: 262 g
- Package 2 Dimensions (H x W x L): 15.00 cm x 30.00 cm x 40.00 cm
- Package 2 Weight: 4.246 kg
- Number of Units in Package 1: 1
- Number of Units in Package 2: 15
- Mounting Mode: Rack-Mounted
- Fixing Mode: By Screws
Certifications & Compliance
- Product Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
- Standards:
- IEC 61131-2
- IEC 61010-2-201
- UL 61010-2-201
- CSA C22.2 No. 61010-2-201
- IACS E10
- IEC 61000-6-5 (Interface Type 1 & 2)
- IEC 61850-3 (Industrial Communication Networks)
Key Features & Benefits:
✅ Multi-Port Ethernet Connectivity: 3 x RJ45 ports for RIO network and service connections.
✅ Advanced Network Features: Supports RSTP, Modbus TCP, CIP messaging, and SNMP agent.
✅ Real-Time Data Management: Time-stamping and remote diagnostics for improved efficiency.
✅ Robust Industrial-Grade Design: Operates in harsh environments with IP20 protection.
✅ Modular & Scalable: Expandable architecture for large-scale automation projects.
✅ Common Safety & Reliability: Ensures secure, stable, and optimized communication.
📦 Order Today for Fast UK & Europe Delivery!
At Drive Outlet Megastore, we offer competitive BMECRA31210 prices, with fast shipping available across the UK & Europe.
For more details or to speak with an expert about the best remote I/O solution for your application, contact Drive Outlet Megastore.
Our team is ready to help you find the perfect automation solution for your industrial needs. Get in touch today!
