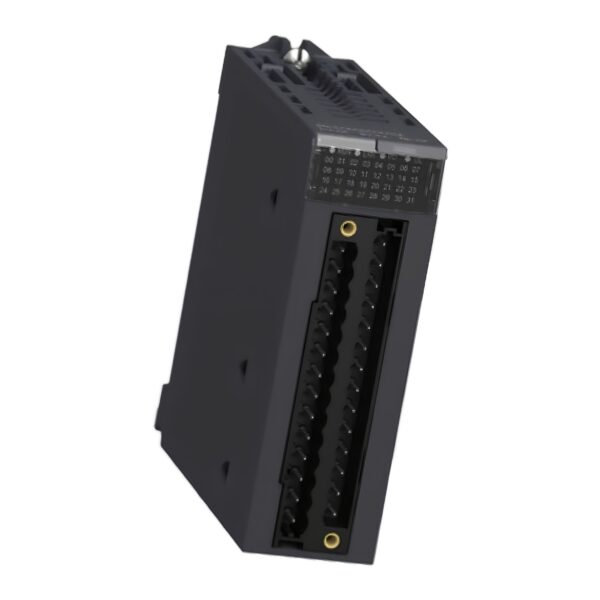

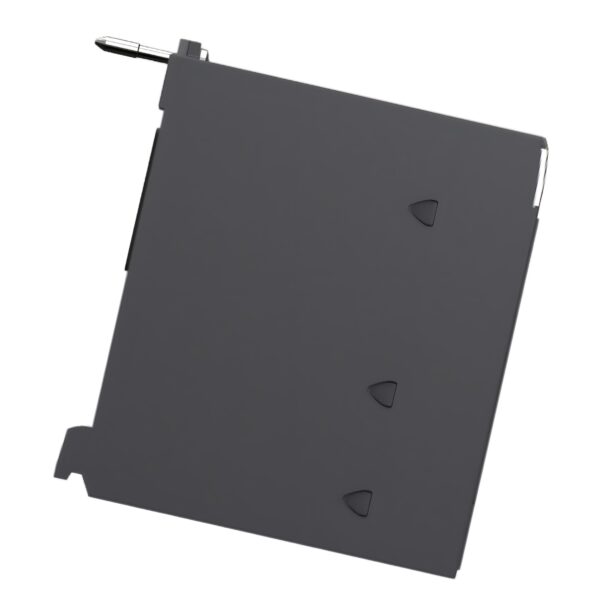

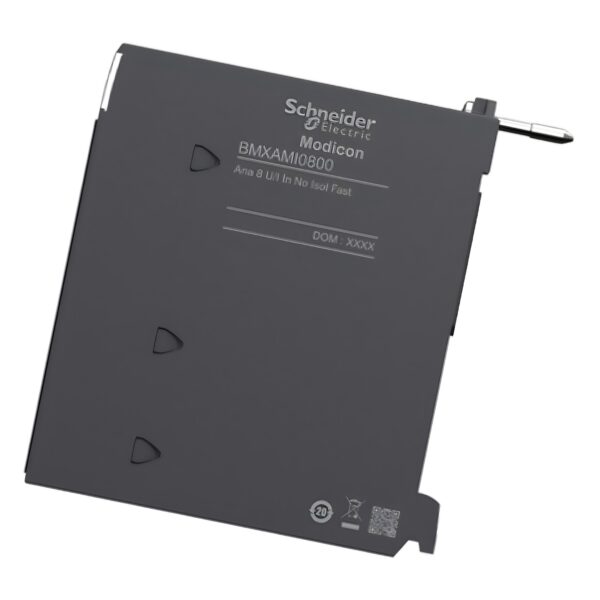

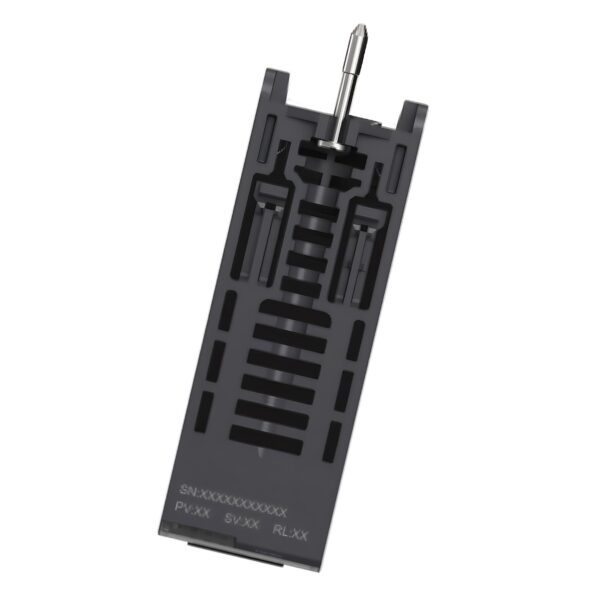

Schneider BMXAMI0800 Non-Isolated Analog Input Module

The Schneider BMXAMI0800 is a high-performance Modicon X80 analog input module, providing 8 channels of non-isolated high-level analog inputs with 15-bit + sign resolution. It supports multiple input ranges: 0–20mA, 4–20mA, and ±10V, making it versatile for various industrial applications.

This module operates with a 24V DC supply and features a 28-way removable terminal block for electrical connections. It is IP20-rated, ensuring protection against solid objects larger than 12mm, suitable for panel-mounted industrial automation systems.

Engineered for demanding applications, this module offers precise control and monitoring capabilities, supporting various sensors and actuators. It’s designed for machine builders and system integrators seeking fast response, robust performance, and seamless integration with Schneider Electric’s Modicon M340 and M580 programmable automation controllers (PACs).

Technical Specifications

Model: BMXAMI0800
Type: Analog Input Module for Modicon X80

BMXAMI0800 Performance & Capacity

• Analog Input Number:
  • 8
• Analog Input Type:
  • Current: ±20 mA, 0-20 mA, 4-20 mA
  • Voltage: ±10V, ±5V, 0-10V, 0-5V, 1-5V
• Analog/Digital Conversion:
  • 16 bits
• Analog Input Resolution:
  • 15 bits + sign
• Permitted Overload on Inputs:
  • ±30 mA (0-20 mA, 4-20 mA, ±20 mA)
  • ±30V (±10V, ±5V, 0-10V, 0-5V, 1-5V)
• Input Impedance:
  • 10 MΩ in voltage mode
  • 250 Ω in current mode
• Precision of Internal Conversion Resistor:
  • 0.1% – 15 ppm/°C
• Type of Filter:
  • First-order digital filtering
• Fast Read Cycle Time:
  • 1 ms + 1 ms per channel
• Nominal Read Cycle Time:
  • 9 ms for 8 channels
• Measurement Error:
  • ≤ 0.1% of full scale for voltage inputs
  • ≤ 0.3% of full scale for current inputs
• Temperature Drift:
  • 30 ppm/°C (voltage)
  • 50 ppm/°C (current)
• Recalibration:
  • Factory calibrated
• Minimum Crosstalk Attenuation:
  • 80 dB
• Common Mode Rejection:
  • 100 dB
• Digital Value Format:
  • -32768 to +32767 (maximum user scale)
  • ±10000 by default
• Isolation Voltage:
  • 1400V DC between channels and ground
  • 1400V DC between channels and bus
  • 50V DC between channels
• Measurement Resolution:
  • 0.36 mV for voltage inputs
  • 1.4 µA for current inputs

Connectivity & Controls

• Electrical Connection:
  • 28-way connector
• Local Signaling:
  • 1 LED (Green) – Module Operating (RUN)
  • 1 LED per Channel (Green) – Channel Diagnostic
  • 1 LED (Red) – Module Error (ERR)
  • 1 LED (Red) – I/O

BMXAMI0800 Power & Environmental Specifications

• MTBF Reliability: 1,700,000 Hours
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Relative Humidity: 5% to 95% at 55°C (Non-Condensing)
• Operating Altitude:
  • 0 to 2000 m (Standard Operation)
  • 2000 to 5000 m (With Derating Factor)
• IP Degree of Protection: IP20
• Vibration Resistance: 3 gn
• Shock Resistance: 30 gn

Physical Specifications

• Net Weight: 0.165 kg
• Package 1 Dimensions (H x W x L): 5.50 cm x 11.20 cm x 12.00 cm
• Package 1 Weight: 154 g
• Package 2 Dimensions (H x W x L): 15.00 cm x 30.00 cm x 40.00 cm
• Package 2 Weight: 2.64 kg
• Number of Units in Package 1: 1
• Number of Units in Package 2: 15

Key Features & Benefits:

✅ 8 High-Speed Analog Inputs: Supports multiple voltage and current input types.

✅ 16-bit Resolution: Delivers precise and accurate data acquisition.

✅ Advanced Digital Filtering: Improves signal integrity and accuracy.

✅ Fast Read Cycle: Ensures rapid processing for real-time applications.

✅ Industrial-Grade Performance: High reliability for demanding environments.

✅ Compact & Modular: Easily integrates into Modicon X80 racks.
