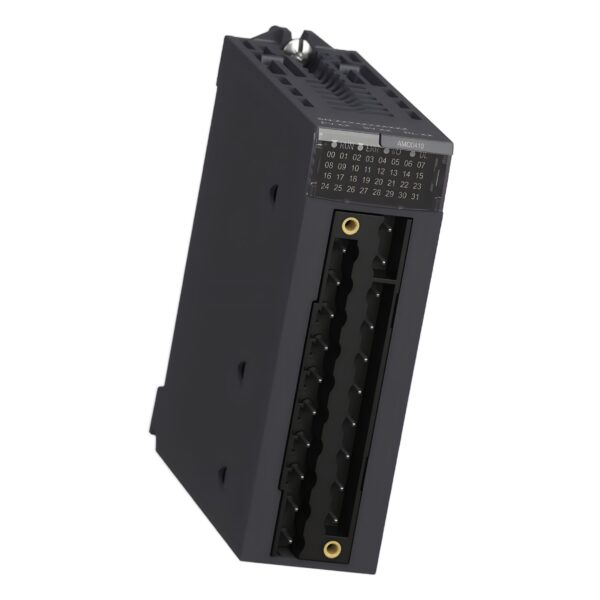

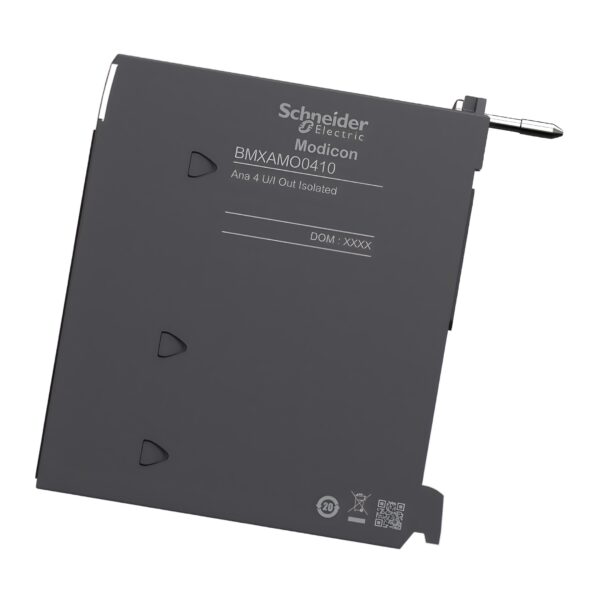

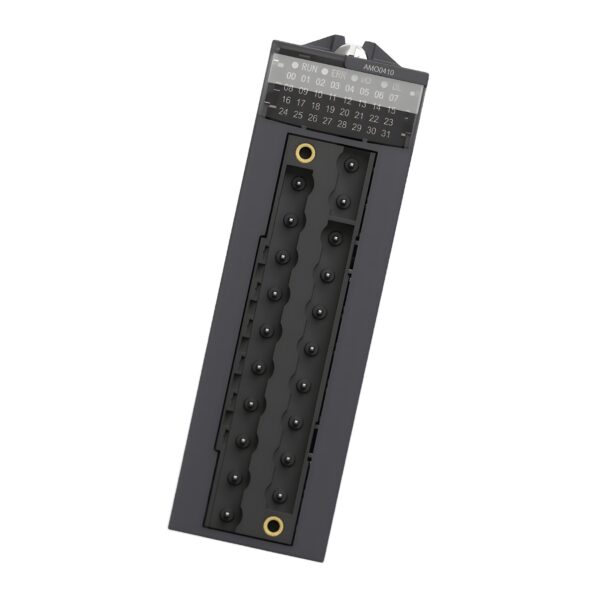

Schneider BMXAMO0410 Isolated Analog Output Module

£661.19 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsSchneider Electric
Model BMXAMO0410
Analog Output Type Current: 0-20 mA Current: 4-20 mA Voltage: ±10 V
Type Isolated Analog Output Module for Modicon X80
Analog Output Resolution 15 bits + sign
Isolation Voltage 1400V DC between channels and ground 1400V DC between channels and bus 750V DC between channels
IP Degree of Protection IP20
Package 1 Dimensions (H x W x L) 5.50 cm x 11.00 cm x 11.50 cm
Package 2 Dimensions (H x W x L) 15.00 cm x 30.00 cm x 40.00 cm
Electrical Connection 20-way Connector
Analog Output Number 4
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Schneider BMXAMO0410 Isolated Analog Output Module

The Schneider BMXAMO0410 is a high-performance Modicon X80 analog output module , delivering 4 channels of isolated high-level analog outputs with 15-bit + sign resolution . It supports multiple output ranges: 0–20mA , 4–20mA , and ±10V , making it versatile for various industrial applications.

Technical Specifications

Model BMXAMO0410
Type Isolated Analog Output Module for Modicon X80

Performance & Capacity

Analog Output Number 4
Analog Output Type Current: 0-20 mA Current: 4-20 mA Voltage: ±10 V
Analog Output Resolution 15 bits + sign
Load Impedance ≥ 1000 Ω (±10 V) ≤ 500 Ω (0-20 mA, 4-20 mA)
Measurement Error ≤ 0.2% of full scale from 0-60°C 0.1% of full scale at 25°C
Temperature Drift 45 ppm/°C for ±10 V, 0-20 mA, and 4-20 mA
Isolation Voltage 1400V DC between channels and ground 1400V DC between channels and bus 750V DC between channels
Minimum Crosstalk Attenuation 80 dB
Common Mode Rejection 100 dB
Conversion Time ≤ 1 ms
Maximum Conversion Value 0-21 mA (0-20 mA) 0-21 mA (4-20 mA) ±10.5 V (±10 V)
Fallback Mode Configurable Predefined

Connectivity & Controls

Electrical Connection 20-way Connector
Local Signaling 1 LED (Green) – Module Operating (RUN) 1 LED per Channel (Green) – Channel Diagnostic 1 LED (Red) – Module Error (ERR) 1 LED (Red) – I/O

Power & Environmental Specifications

MTBF Reliability 1,000,000 Hours
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 5% to 95% at 55°C (Non-Condensing)
IP Degree of Protection IP20
Vibration Resistance 3 gn
Shock Resistance 30 gn
Operating Altitude 0 to 2000 m (Standard Operation) 2000 to 5000 m (With Derating Factor)

BMXAMO0410 Physical Specifications

Net Weight 0.15 kg
Package 1 Dimensions (H x W x L) 5.50 cm x 11.00 cm x 11.50 cm
Package 1 Weight 211 g
Package 2 Dimensions (H x W x L) 15.00 cm x 30.00 cm x 40.00 cm
Package 2 Weight 3.50 kg
Number of Units in Package 1 1
Number of Units in Package 2 15

Certifications & Compliance

Product Certifications CE, UL, CSA, RCM, EAC, Merchant Navy
Standards & approvals EN/IEC 61131-2EN/IEC 61010-2-201UL 61010-2-201CSA C22.2 No 61010-2-201
