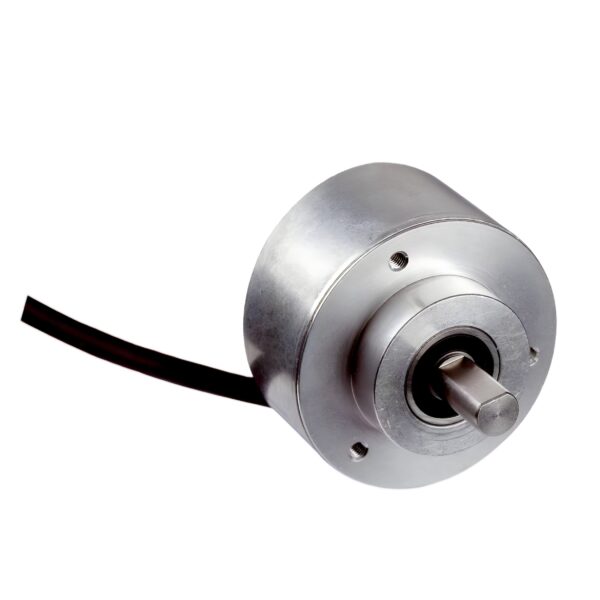

SICK DFS60B-S4PK10000 Incremental Encoder (1036722)

The SICK DFS60B-S4PK10000 is a rugged, high-resolution incremental encoder designed for precise speed and position feedback in demanding industrial applications. With a solid shaft design, face mount flange, and robust aluminum housing, it offers outstanding durability, accuracy, and flexibility for motion control systems.

Technical Specifications

• Model: DFS60B-S4PK10000 SICK
• Part No.: 1036722
• Product Type: Incremental Rotary Encoder
• MTTFD (Mean Time to Dangerous Failure): 300 years (EN ISO 13849-1)

Performance

• Resolution: 10,000 pulses per revolution (PPR)
• Reference Signal: 1 pulse per revolution (index pulse)
• Reference Signal Position: 90° electric, logically gated with channels A and B

Electrical Interface

• Supply Voltage: 4.5 V DC to 32 V DC
• Connection Type: Cable, 8-wire, universal, 1.5 meters
• Reverse Polarity Protection: Yes
• Short-Circuit Protection on Outputs: Yes
• Output Type: Standard incremental signals (A, B, and Z channels)

Mechanical Data

• Mechanical Design: Solid shaft with face mount flange
• Shaft Diameter: 10 mm
• Shaft Length: 19 mm
• Housing Material: Aluminum die-cast
• Flange Material: Aluminum
• Shaft Material: Stainless steel
• Weight: Approx. 0.3 kg
• Starting Torque: 0.5 Ncm at +20 °C
• Operating Torque: 0.3 Ncm at +20 °C
• Permissible Shaft Load:
• Radial Load: 80 N
• Axial Load: 40 N
• Operating Speed: ≤ 9,000 min⁻¹
• Moment of Inertia of Rotor: 6.2 gcm²
• Bearing Lifetime: 3.6 × 10¹⁰ revolutions
• Angular Acceleration: ≤ 500,000 rad/s²

Ambient Conditions

• Operating Temperature Range: Typically –20 °C to +100 °C (standard DFS60 range)
• Storage Temperature: –40 °C to +100 °C
• Shock Resistance: 100 g, 6 ms (IEC 60068-2-27)
• Vibration Resistance: 10 g, 10 Hz to 2,000 Hz (IEC 60068-2-6)

Certificates and Compliance

• European Conformity (CE)
• UK Conformity Assessed (UKCA)
• cULus Listed (UL 508)
• RoHS Compliance

Applications

Ideal For:

• Industrial motor feedback systems
• Conveyor belt speed control and positioning
• Robotics axis control
• Printing, packaging, and material handling equipment
• General automation requiring precise rotary feedback

Key Features & Benefits

✅ Ultra-High Resolution: 10,000 PPR for high-precision motion control applications.

✅ Durable Build: Solid shaft and rugged die-cast aluminum housing for harsh environments.

✅ Flexible Power Supply: Wide voltage range from 4.5 V DC to 32 V DC.

✅ Compact Integration: Slim cable connection and robust face mount flange design.

✅ Reliable Electrical Protection: Built-in reverse polarity and short-circuit protection.
