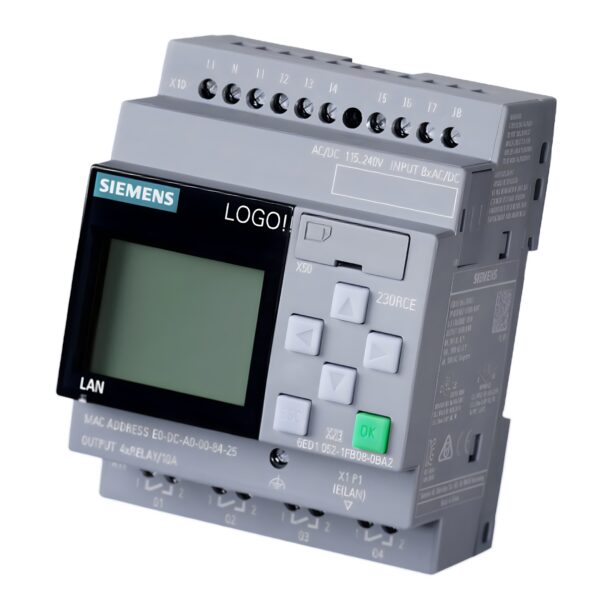

Siemens 6ED1052-1FB08-0BA2 LOGO! 230RCE Logic Module

The Siemens LOGO! 230RCE (6ED1052-1FB08-0BA2) is a compact, easy-to-use logic module designed for small automation tasks. Featuring integrated Ethernet, a built-in web server, data logging, and MQTT cloud connectivity, it’s ideal for modern IoT applications. With 8 digital inputs, 4 relay outputs, and support for custom web pages, this module provides flexible control and monitoring for industrial, commercial, and residential systems.

Technical Specifications

Model: 6ED1052-1FB08-0BA2
Type: LOGO! 230RCE Logic Module with Display
Power Supply: 115 V / 230 V AC
I/O Configuration: 8 Digital Inputs / 4 Relay Outputs
Memory Capacity: 400 function blocks

Performance & Features

• Modular Expandability: Easily expandable for additional functionality
• Ethernet Interface: Integrated for seamless networking
• Web Server: Built-in for remote monitoring and control
• Data Logging: Supports integrated data logging
• User-Defined Web Pages: Customizable web interface
• Cloud Connectivity: Supports MQTT and cloud connection in all LOGO! 8.4 units
• Software Compatibility: Compatible with LOGO! Soft Comfort V8.4 or higher
• MicroSD Card Support: For project storage and firmware updates
• Display: Integrated for local control and status display
• Backward Compatibility: Can execute older projects from earlier LOGO! versions

Physical Specifications

• Net Weight: 0.274 kg
• Packaging Dimensions (W x H x D): 8.10 cm x 9.30 cm x 7.30 cm
• Package Size Unit of Measure: CM
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: China

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM300 – Active Product
• Export Control Regulations: AL: N / ECCN: EAR99H
• Compliance with RoHS Directive: Since 05.04.2023
• WEEE Take-Back Obligation: Yes
• REACH Art. 33 Candidate Substances:
  • Lead (CAS-No. 7439-92-1 > 0.1% w/w)
  • Lead monoxide (CAS-No. 1317-36-8 > 0.1% w/w)
• SCIP Number: 4c5893e4-7b99-41c3-a59a-d6e17abb1c67

Additional Product Information

• EAN: 4034106034436
• Commodity Code: 85371091
• Catalog ID: STLOGO!
• Product Group: 4071
• Group Code: R131
• Product Class: A – Standard stock product, returnable within guidelines

Key Features & Benefits:

✅ Integrated Ethernet for Communication & Cloud Access

✅ Built-in Display for Onsite Monitoring & Configuration

✅ User-Defined Web Pages for Custom Control Interfaces

✅ Expandable Modular Design

✅ Standard MicroSD Card Support for Easy Project Management

✅ RoHS & REACH Compliant Siemens Quality
