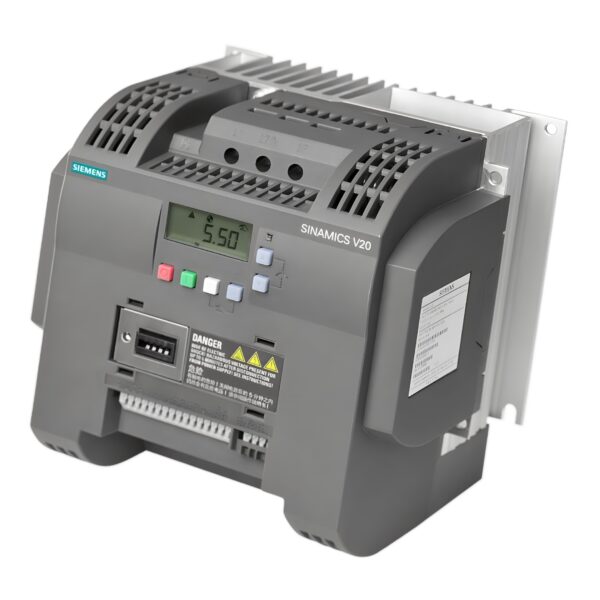

Siemens 6SL3210-5BE25-5UV0 Inverter Drive, 5.5kW, IP20

The Siemens SINAMICS V20 Converter (6SL32105BE255UV0) is a versatile and compact variable frequency drive designed for general-purpose industrial applications. Offering 5.5 kW rated power with 150% overload capacity, integrated USS/MODBUS RTU, and easy operation via BOP, this drive is ideal for controlling motors in a wide range of tasks.

Technical Specifications

Model: 6SL3210-5BE25-5UV0 Siemens
Type: SINAMICS V20 Basic Converter – Unfiltered, Compact Variable Frequency Drive

Power & Performance

• Input Voltage: 380-480V 3AC (-15% / +10%), 47-63Hz
• Rated Power: 5.5 kW
• Overload Capacity: 150% for 60 seconds
• Size: C (184 x 182 x 169 mm)
• Protection Class: IP20 / UL Open

Interfaces & Communication

• Digital Inputs (DI): 4
• Digital Outputs (DO): 2
• Analog Inputs (AI): 2
• Analog Outputs (AQ): 1
• Fieldbus: USS / MODBUS RTU
• Built-In: Basic Operator Panel (BOP)
• Recommended Accessories:
  • 3RV2021-4BA10: Motor Protection Circuit Breaker, Class 10 (13-20A)
  • 6SL3201-2AD20-8VA0: SINAMICS V20 Brake Module
  • 6FC8505-3EX02-0AA0: Service Protect 3 Years
  • 6FC8505-5EX02-0AA0: Service Protect 5 Years

Physical Specifications

• Net Weight: 2.400 kg
• Packaging Dimensions (W x H x D): 240.00 mm x 240.00 mm x 220.00 mm
• Package Size Unit of Measure: MM
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: China

Product Lifecycle & Compliance

• Product Lifecycle (PLM): PM400 – Phase-Out Announced (Effective 10.02.2025)
• Export Control Regulations: ECCN: N / AL: N
• Compliance with RoHS Directive: Since 05.07.2010
• WEEE Take-Back Obligation: Yes

REACH Art. 33 Candidate Substances:

• SCIP Number: 42c6b7a0-65b2-47bd-a074-4dc5aa7c43db

Additional Product Information

• EAN: 6940408102774
• UPC: 887621056254
• Commodity Code: 85044095
• Catalog ID: SINAMICS V20
• Product Group: 5681
• Group Code: R220
• Product Class: C – Made to order, non-returnable

Key Features & Benefits:

✅ Powerful 5.5 kW Output: Reliable motor control with overload capability.

✅ USS / MODBUS RTU Fieldbus: Flexible integration into industrial networks.

✅ Built-in Operator Panel (BOP): User-friendly operation and control.

✅ Compact IP20 Design: Easy panel integration with minimal space requirements.

✅ Phase-Out Announced: Available for last-time buys and system replacements.
