6ES7135-6HD00-0BA1 6ES7135-6HD00-0BA1
SIMATIC ET 200SP
  1. 6ES7135-6HD00-0BA1 6ES7135-6HD00-0BA1
  2. SIMATIC ET 200SP

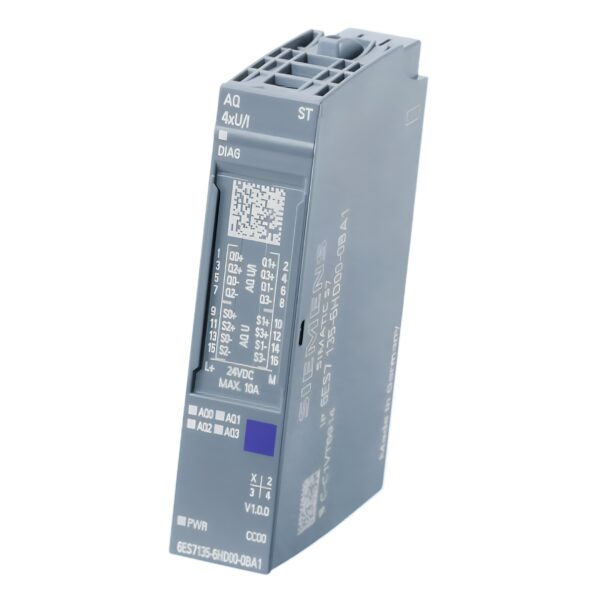

Siemens 6ES7135-6HD00-0BA1 Analog Output Module

£258.69 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsSiemens
Model 6ES7135-6HD00-0BA1 Siemens
Type Analog Output Module for SIMATIC ET 200SP Series
Resolution 16-bit
Mounting Plugged onto BaseUnit (separately available)
Packaging Dimensions (W x H x D) 6.80 cm x 7.70 cm x 2.40 cm
SCIP Number 7b073f3f-70fc-46a9-974a-1a1da41c99b5
Number of Analog Outputs 4 Channels (Voltage/Current)
Module Diagnostics Integrated
Standard Module AQ 4XU/I
Net Weight 0.039 kg
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: 6ES7135-6HD00-0BA1 Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Siemens 6ES7135-6HD00-0BA1 Analog Output Module

The Siemens SIMATIC ET 200SP Analog Output Module (6ES71356HD000BA1) delivers precise voltage and current outputs across 4 channels, with 16-bit resolution and ±0.3% accuracy , making it ideal for complex industrial control applications. Compatible with Base Units A0 and A1 , this module provides robust performance with integrated module diagnostics for enhanced system reliability.

Technical Specifications

Model 6ES7135-6HD00-0BA1 Siemens
Type Analog Output Module for SIMATIC ET 200SP Series

Power & Performance

Number of Analog Outputs 4 Channels (Voltage/Current)
Resolution 16-bit
Accuracy ±0.3%
Module Diagnostics Integrated
Color Code CC00

Compatibility & Design

Suitable Base Units BU Type A0, A1
Standard Module AQ 4XU/I
Mounting Plugged onto BaseUnit (separately available)

Physical Specifications

Net Weight 0.039 kg
Packaging Dimensions (W x H x D) 6.80 cm x 7.70 cm x 2.40 cm
Package Size Unit of Measure CM
Quantity Unit 1 Piece
Packaging Quantity 1
Country of Origin Germany

Product Lifecycle & Compliance

Product Lifecycle (PLM) PM300 – Active Product
Export Control Regulations AL: N / ECCN: 9N9999
Compliance with RoHS Directive Since 31.01.2012
WEEE Take-Back Obligation Yes
SCIP Number 7b073f3f-70fc-46a9-974a-1a1da41c99b5
REACH Art. 33 Candidate Substances Lead (CAS-No. 7439-92-1 > 0.1% w/w) Lead monoxide (CAS-No. 1317-36-8 > 0.1% w/w) Silicic acid, lead salt (CAS-No. 11120-22-2 > 0.1% w/w) SCIP Number: 7b073f3f-70fc-46a9-974a-1a1da41c99b5

Additional Product Information

EAN 4025515080756
UPC 040892933536
Commodity Code 85389091
Catalog ID ST76
Product Group 4520
Group Code R151
Product Class A – Standard stock product, returnable within guidelines

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 6ES7135-6HD00-0BA1 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can 6ES7135-6HD00-0BA1 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.039 kg
