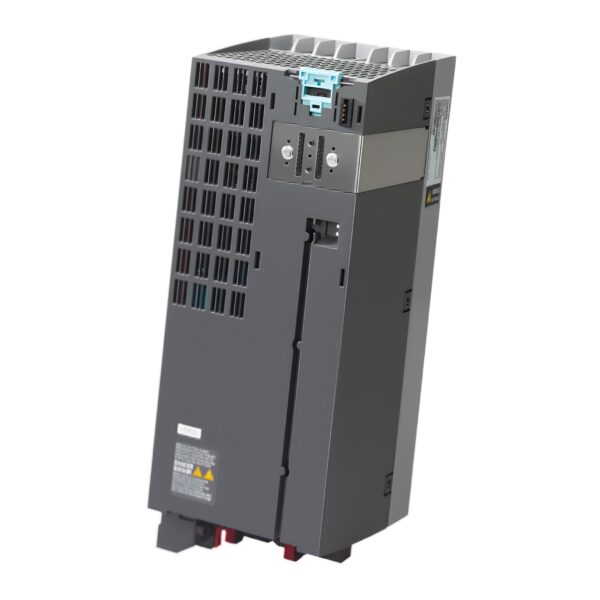

Siemens 6SL3210-1PE23-3AL0 Inverter Drive – 11kW, IP20

6SL32101PE233AL0 – High-efficiency PM240-2 Power Module for SINAMICS G120 drives. Designed with integrated Class A EMC filter and braking chopper, it supports high and low overload ratings and delivers robust motor control performance across a wide temperature range.

Technical Specifications

• Model: 6SL3210-1PE23-3AL0 Siemens
• Series: SINAMICS G120
• Module Type: PM240-2 Power Module
• Voltage Input: 3AC 380–480 V ±10%, 47–63 Hz
• Output (High Overload): 11 kW @ 200% for 3s, 150% for 57s, 100% for 240s (–10 to +50°C).
• Output (Low Overload): 15 kW @ 150% for 3s, 110% for 57s, 100% for 240s (–10 to +40°C).
• Braking Chopper: Integrated.
• EMC Filter: Integrated Class A.
• Firmware Compatibility: Version V4.6 approved.
• Mounting Type: FSC frame, panel-mounted.
• Protection Rating: IP20.
• Net Weight: 5.4 kg.
• Dimensions (H×W×D): 355 × 140 × 165 mm.
• Lifecycle Status: Active product.
• Country of Origin: Great Britain.

Function & Application

Purpose: The SINAMICS PM240-2 Power Module is used in modular SINAMICS G120 drive systems, enabling efficient and safe motor operation with integrated braking and filtering.

Ideal for applications requiring high peak torque and compact control solutions.

Typical Applications:

• Pump and fan control systems.
• Conveyor systems and processing lines.
• HVAC systems.
• Packaging and textile machinery.
• General industrial automation with variable-speed drives.

Performance & Features

• Dual Overload Profiles : Supports both high and low overload motor demands.
• Built-in Braking Chopper : Ensures safe motor deceleration without external components.
• EMC Class A Filtering : Complies with industrial emission limits.
• Compact & Scalable : Designed for space-saving control panel integration.
• Optimized for CU Compatibility : Approved for SINAMICS Control Units with V4.6 firmware.

Compliance & Classification

• RoHS Compliance: Since 01.07.2006.
• WEEE Take-Back Obligation: Yes.
• REACH Substances:
  • Lead (CAS 7439-92-1) > 0.1%.
  • Lead monoxide (CAS 1317-36-8) > 0.1%.
  • Diboron trioxide (CAS 1303-86-2) > 0.1%.
• SCIP Number: e46c3f22-e7d9-4d2c-a6ea-c7397baee999.
• Commodity Code: 85044095.
• Catalog ID: D11.1SD.
• Product Group: 9772.
• Group Code: R220.
• Product Class: A – Returnable stock item.
• EAN: 4042948666111.
• UPC: 887621780043.

Robust & Flexible Power for SINAMICS G120 Drives

The Siemens 6SL3-210-1PE23-3AL0 PM240-2 module offers exceptional overload capacity, integrated filtering, and braking—providing unmatched control for dynamic industrial loads.

A reliable, field-proven choice for system builders and OEMs seeking compact drive performance with Siemens quality.

Key Features & Benefits:

✅ 11 kW High Overload / 15 kW Low Overload: Flexible application across industries.

✅ Integrated Class A Filter: Simplifies installation and improves EMC compliance.

✅ Built-in Braking Chopper: Enhanced safety and reduced component count.

✅ Compact IP20 Housing: Ideal for cabinet mounting.

✅ Compatible with CU230P-2, CU240E-2, and other SINAMICS G120 CUs.

📦 Order Today for Fast UK & Europe Delivery!

At Drive Outlet Megastore, we offer the most competitive Siemens 6SL3210-1PE23-3AL0 prices, ready for next-day shipping across the UK and Europe.

Need help choosing the right SINAMICS Power Module, understanding overload curves, or selecting the best Control Unit?

Contact our drive experts today.

Drive your systems with confidence – with Siemens and Drive Outlet Megastore.
