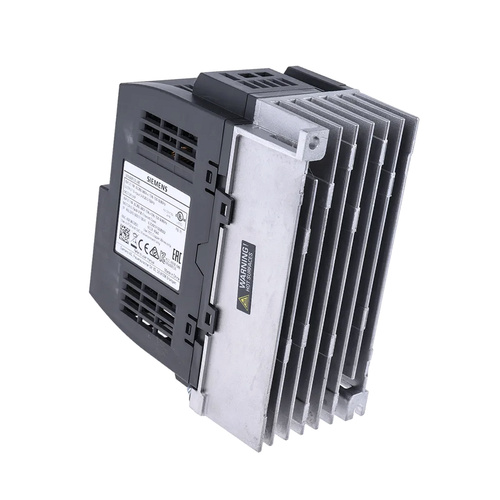

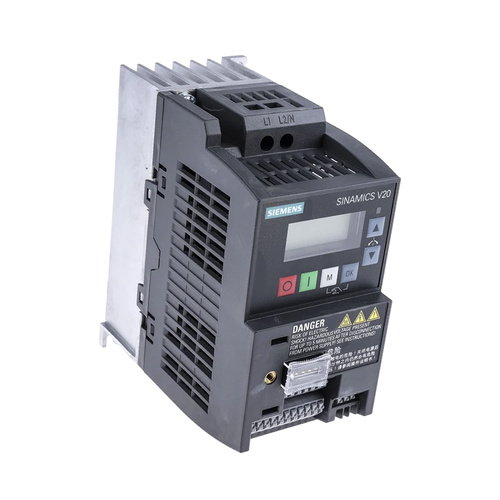

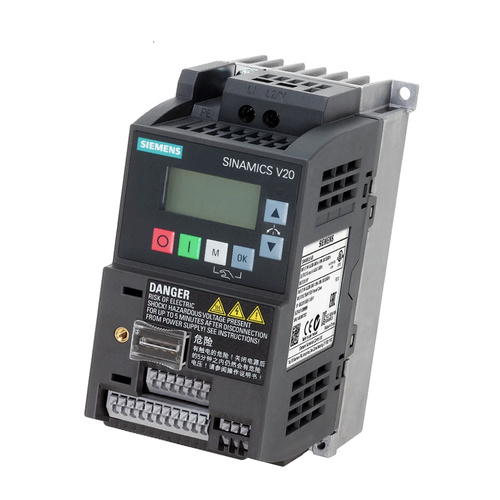

Siemens 6SL3210-5BB15-5UV1 SINAMICS V20 Inverter Drive – 0.55kW Single-Phase Input, Three-Phase Output, IP20

The 6SL3210-5BB15-5UV1 is a compact and efficient Siemens SINAMICS V20 inverter drive designed for reliable speed control of small AC motors in OEM and light industrial applications. Delivering a rated output power of 0.55 kW with a maximum output current of 3.2 A, it operates from a 200–240V single-phase supply and provides a 230V three-phase output for smooth and precise motor control.

Designed for control cabinet installation, this inverter features an IP20 enclosure and a space-saving compact design suitable for wall or side mounting. With a wide output frequency range up to 550 Hz and a broad operating temperature range, it is ideal for applications requiring flexible speed control with proven Siemens reliability.

Technical Specifications

Model: 6SL3210-5BB15-5UV1
Series: SINAMICS V20
Device Type: Variable Speed Inverter Drive
Rated Power Output: 0.55 kW
Maximum Output Current: 3.2 A
Input Voltage: 200–240V AC, Single-Phase
Output Voltage: 230V AC, Three-Phase
Output Frequency: Up to 550 Hz
IP Rating: IP20
Application: Fans, pumps, conveyors, OEM machinery

Electrical Specifications

• Supply Voltage Range: 200–240V AC
• Number of Phases: 1-phase input / 3-phase output
• Rated Power: 0.55 kW
• Maximum Output Current: 3.2 A
• Drive Type: AC Inverter
• Compatible Motor Type: AC Motors

Mechanical Specifications

• Height: 142 mm
• Width: 127.8 mm
• Depth: 68 mm
• Mounting Type: Wall or Side Mount
• Housing: Control cabinet installation (IP20)

Environmental Specifications

• Minimum Operating Temperature: -10°C
• Maximum Operating Temperature: 60°C
• IP Rating: IP20

Compliance & Certifications

• CE Marked: Yes
• cULus: Yes
• C-Tick (RCM): Yes
• KCC: Yes
• Standards: EN 60204-1, EN 61800-3, EN 61800-5-1

Key Features & Benefits

✅ 0.55kW Output. Ideal for compact AC motor applications.

✅ Single-Phase Input. Suitable where three-phase power is unavailable.

✅ High Output Frequency. Supports motor speeds up to 550 Hz.

✅ Compact IP20 Design. Saves valuable space inside control cabinets.

✅ Flexible Mounting. Wall or side mounting options available.

✅ Wide Temperature Range. Reliable operation from -10°C to +60°C.

✅ Proven Siemens Quality. Built to international industrial standards.

📦 Order the 6SL3210-5BB15-5UV1 from Drive Outlet Megastore

At Drive Outlet Megastore, we supply genuine Siemens SINAMICS V20 inverter drives at competitive prices.

This compact and reliable V20 inverter is ideal for OEMs and panel builders requiring simple, dependable motor control.

Check stock now or request a quote.

Compact control. Reliable performance. Siemens engineering. — Drive Outlet Megastore
