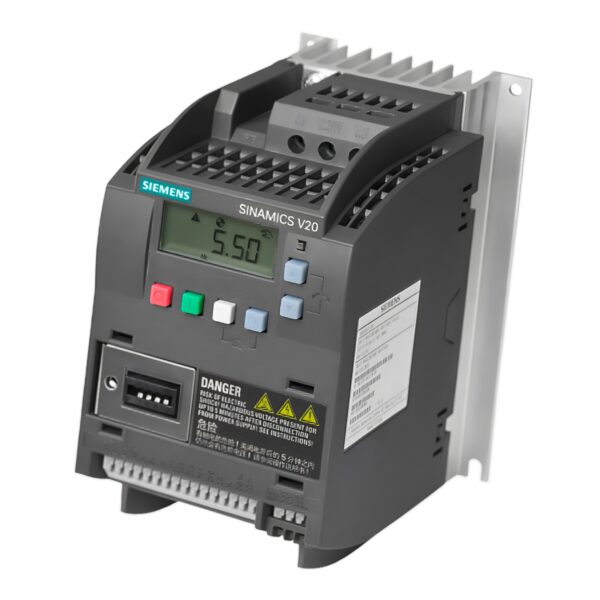

Siemens 6SL3210-5BE22-2UV0 Inverter Drive – 2.2kW, 3PH, IP20

The Siemens 6SL3-210-5BE22-2UV0 SINAMICS V20 offers a compact and powerful solution for applications up to 2.2 kW. With USS/MODBUS RTU support, an integrated BOP, and robust 150% overload capability, this drive is ideal for standard industrial motor tasks.
Designed for OEMs and panel builders, it delivers fast commissioning, high efficiency, and reliable performance in daily operation.

Technical Specifications

Model: 6SL3210-5BE22-2UV0 Siemens
Series: SINAMICS V20
Rated Power: 2.2 kW
Input Voltage: 380–480 V AC 3-phase (-15% / +10%)
Frequency Range: 47–63 Hz
Output Current: Based on overload rating – 150% for 60 seconds
Protection: IP20 / UL Open Type
Frame Size: A
Dimensions (WxHxD): 90 × 166 × 145.5 mm
Net Weight: 0.990 kg

Function & Application

• Purpose: Cost-effective inverter for general-purpose industrial motor control
• Typical Use Cases: Pumps, fans, small compressors, mixers, conveyors

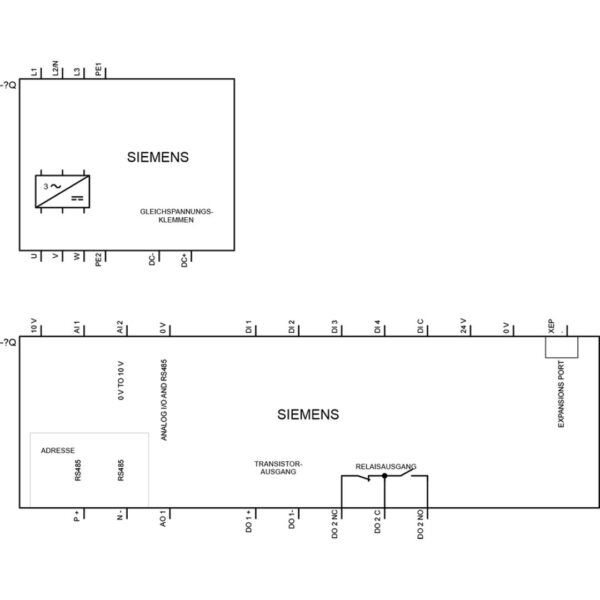

• I/O Configuration:
  • 4 x Digital Inputs (DI)
  • 2 x Digital Outputs (DO)
  • 2 x Analog Inputs (AI)
  • 1 x Analog Output (AQ)
• Fieldbus Communication: USS / MODBUS RTU
• Integrated Features:
  • Built-in Basic Operator Panel (BOP)
  • Easy setup via USB (optional cable) or keypad

Performance & Features

• Simple Commissioning: Integrated BOP interface for quick setup
• Overload Capacity: 150% overload for 60s under heavy-duty loads
• Efficient Operation: ECO mode and motor auto-tuning for energy savings
• Cooling System: Natural convection with compact heat sink
• Mounting: Suitable for DIN rail or wall installation

Recommended Accessories & Services

• [3RV2011-1JA10 – Motor Protection Circuit Breaker (7–10 A)]
• [3NA3805 – NH000 Fuse Element, 16 A, 500 V AC]
• [6FC8505-3EX01-0AA0 – 3-Year Service Protect Warranty]
• [6FC8505-5EX01-0AA0 – 5-Year Service Protect Warranty]

Delivery & Compliance

• Packaging Dimensions: 140 × 210 × 185 mm
• Packaging Quantity: 1 Piece
• Country of Origin: China

Product Compliance & Classification

• RoHS Compliance: Since 05.07.2010
• WEEE Take-Back Obligation: Yes
• SCIP Number: 7a8803e6-2cef-4df6-b83f-e7201462ce4d
• Commodity Code: 85044095
• Catalog ID: SINAMICS V20
• Product Group: 5681
• Group Code: R220
• Product Class: C – Made to order, not returnable
• EAN: 6940408102743
• UPC: 887621056223

Key Features & Benefits:

✅ 2.2 kW Output Power – For small- to mid-size motors.

✅ 150% Overload for 60s – Operates under demanding conditions.

✅ BOP Included – Easy drive setup and diagnostics.

✅ Fieldbus Ready – Supports MODBUS RTU / USS integration.

✅ IP20 Protection / Size A – Space-saving format.

⚠️ Product Notice

This product has been phased out as of 10.02.2025. It has been replaced by:
➡️ Siemens 6SL3210-5BE22-2UV1 – Enhanced version with integrated braking unit
