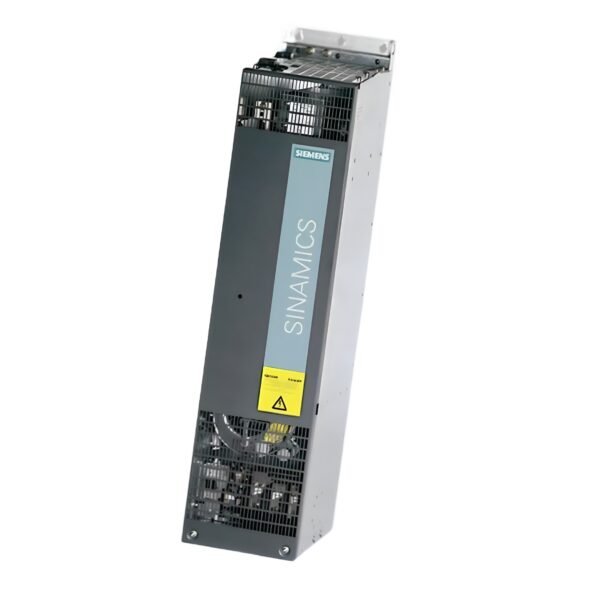

Siemens 6SL3320-1TE36-1AA3 SINAMICS Single Motor Module

6SL33201TE361AA3 – The SINAMICS Single Motor Module is a high-performance drive component rated for 315 kW output, delivering 605 A at 0–480 V 3AC output from a 510–720 V DC input. Designed as a built-in unit with IP00 protection, it features internal air cooling and includes a Drive-CLiQ cable for seamless communication within SINAMICS S120 drive systems.

Technical Specifications

• Model: 6SL3320-1TE36-1AA3 Siemens
• Series: SINAMICS S120
• Module Type: Single Motor Module
• Input Voltage: 510–720 V DC
• Output Voltage / Current: 0–480 V 3AC / 605 A
• Power Rating: 315 kW
• Cooling Type: Internal air cooling
• Enclosure Type: Built-in unit (IP00)
• Included Accessories: Drive-CLiQ cable
• Net Weight: 290 kg
• Country of Origin: Germany
• Lifecycle Status: Active Product

Function & Application

Purpose: The Siemens SINAMICS 6SL3320-1TE36-1AA3 Motor Module is intended for use in multi-axis drive applications, particularly in machine tools, processing lines, and motion-centric industrial systems. With high power density, it is optimized for seamless integration into SINAMICS S120 drive configurations, enabling dynamic and efficient motor control.

Typical Applications:

• Large industrial automation systems
• High-performance motion control
• Machine tools and rolling mills
• Processing equipment requiring dynamic braking
• Integrated SINAMICS S120 cabinet builds

Performance & Features

• 315 kW Type Rating. Delivers up to 605 A output for heavy-duty applications.
• Wide Input Range (510–720 V DC). Supports stable operation across variable DC bus voltages.
• Internal Cooling System. Efficient thermal management without external cooling infrastructure.
• Drive-CLiQ Interface Included. Simplifies system communication and configuration.
• Modular Cabinet Integration. Designed for installation in control cabinets with IP00 rating.

6SL3320-1TE36-1AA3 Compliance & Classification

• RoHS Compliance: Since 30.12.2004
• WEEE Take-Back Obligation: Yes

REACH Substances:

• Lead (CAS 7439-92-1) > 0.1%
• Dodecachloropentacyclo compound > 0.1%
• 1,2-Benzenedicarboxylic acid (CAS 68515-42-4) > 0.1%
• SCIP Number: e2a577c8-77ab-4c1f-99fe-4ca6f98fd433
• Commodity Code: 85044086
• Catalog ID: D21LD
• Product Group: 4926
• Group Code: R220
• Product Class: D – Made to order / engineered solution
• UPC: 040892544671

Key Features & Benefits:

✅ High Output Power – 315 kW / 605 A: Suitable for large motors and dynamic applications.

✅ Drive-CLiQ Enabled: Ensures intelligent communication and fast commissioning.

✅ IP00 Built-in Format: Designed for direct integration into electrical enclosures.

✅ Efficient Internal Cooling: Maintains thermal stability without external airflow systems.

✅ DC Bus Integration (510–720 V): Compatible with SINAMICS S120 drive system architectures.
