TEC-3-120070-1F12

TecDrive TEC-3-120070-1F12 Inverter Drive – 1.5kW, IP20

£202.32 inc VAT

In Stock · Order by 4:00pm for Next-Working-Day Delivery
For eligible UK mainland addresses. Cutoff times apply on working days; delivery is subject to stock and courier availability.
Technical SpecificationsTEC Motors
Input Voltage 230V AC, Single-Phase, 50 Hz
Model TEC-3-120070-1F12
Rated Output Current 7 A
Series TECDrive
Rated Power Output 1.5 kW
IP Rating IP20
Device Type Variable Speed Inverter Drive
Display Type LED Status Display
Operating Frequency 50 Hz
Output Voltage 230V AC, Three-Phase, 50 Hz
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Try to Beat ItSend us the competing price or quote for a personalised offer.

🛡️ 1-Year TEC Manufacturer Warranty

As an official TEC distributor, all TecDrive products include the full 1-year manufacturer warranty. See our Terms and Conditions.

Complete Your Drive System with the Right Motor & Gearbox

Explore electric motors, worm gearboxes and complete geared motors at our sister site, Worm Gear Motors Online. Get expert help selecting the right combination for your inverter, required speed and torque.

Explore Motors & Gearboxes ↗
SKU: TEC-3-120070-1F12 Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

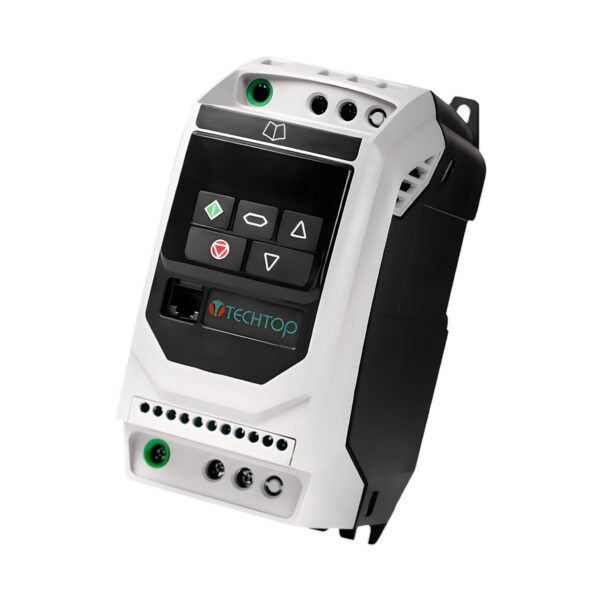

TecDrive TEC-3-120070-1F12 Inverter Drive – 1.5kW, IP20

The TEC-3-120070-1F12 is a high-performance TECDrive inverter designed for smooth, efficient control of three-phase motors using a 230V single-phase supply . Delivering 1.5 kW of power with a maximum output current of 7 A , this compact IP20-rated drive is ideal for pumps, conveyors, fans, and general-purpose industrial motor applications.

Technical Specifications

Model TEC-3-120070-1F12
Series TECDrive
Device Type Variable Speed Inverter Drive
Rated Power Output 1.5 kW
Rated Output Current 7 A
Input Voltage 230V AC, Single-Phase, 50 Hz
Output Voltage 230V AC, Three-Phase, 50 Hz
IP Rating IP20
Frame Size 1
Application Pumps, mixers, conveyors, industrial machines

Electrical Specifications

Input Voltage 230V AC (1-phase)
Output Voltage 230V AC (3-phase)
Output Power 1.5 kW
Switching No internal isolator
EMC Filter Yes (Integrated)
Brake Chopper Not included
Display Type LED Status Display
Communications Modbus RTU, CANopen

Mechanical Specifications

Height 173 mm
Width 83 mm
Depth 123 mm
Cooling Method Convection / internal fan-assisted
Installation Panel mount (IP20)
Housing Industrial thermoplastic

Environmental Specifications

Operating Frequency 50 Hz
Motor Cable Length (Max) 100 metres
Max Supply Cable Size 8 mm²
Max Motor Cable Size 8 mm²

Compliance & Certifications

CE Marked Yes
UKCA Compliant Yes
EMC Integrated filter (Class C1/C2)
Safety Standards EN 61800-5-1
EMC Standards EN 61800-3

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether TEC-3-120070-1F12 is the correct replacement?

Check the motor rating, supply voltage, drive output current, enclosure rating and control interface against your existing installation or the relevant manufacturer datasheet.

How quickly can TEC-3-120070-1F12 be delivered?

This TECDrive inverter is in stock. Order by 4:00pm on working days for next-working-day delivery to eligible UK mainland addresses, subject to stock and courier availability.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 1 kg
