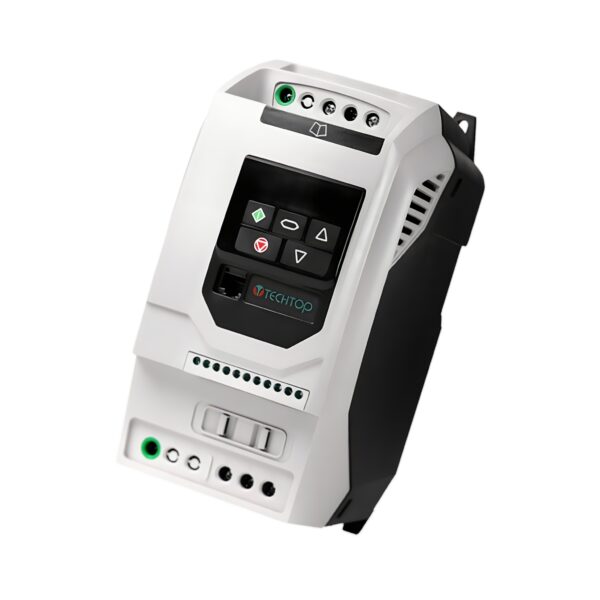

TEC TEC-3-240058-3F42 Inverter Drive – 2.2kW Three-Phase Input, Three-Phase Output
The TEC-3-240058-3F42 is a robust, industrial-grade TECDrive inverter designed for efficient and precise control of three-phase motors on a 400V three-phase supply. Delivering 2.2 kW of power with a rated output current of 5.8 A, it is perfectly suited for pumps, fans, conveyors, compressors, and general industrial automation.
This model features a built-in brake chopper for enhanced braking performance, a high-quality integrated EMC filter for compliance and noise reduction, and a clear LED status display. With communication support for Modbus RTU and CANopen, this inverter integrates seamlessly into modern control systems. Its Frame Size 2 construction provides increased thermal capacity and durability for demanding applications.
Technical Specifications
Model: TEC-3-240058-3F42
Series: TECDrive
Device Type: Variable Speed Inverter Drive
Rated Power Output: 2.2 kW
Rated Output Current: 5.8 A
Input Voltage: 400V AC, Three-Phase, 50 Hz
Output Voltage: 400V AC, Three-Phase, 50 Hz
IP Rating: IP20
Frame Size: 2
Application: Pumps, fans, conveyors, compressors, automation systems
Electrical Specifications
- Input Voltage: 400V AC (3-phase)
- Output Voltage: 400V AC (3-phase)
- Rated Output Current: 5.8 A
- Output Power: 2.2 kW
- Switching: No internal isolator
- EMC Filter: Yes (Integrated)
- Brake Chopper: Yes (Built-in)
- Display Type: LED Status Display
- Communications: Modbus RTU, CANopen
Mechanical Specifications
- Height: 221 mm
- Width: 110 mm
- Depth: 150 mm
- Frame Size: 2
- Cooling Method: Fan-assisted cooling
- Installation: Panel mount (IP20)
- Housing: Industrial thermoplastic
Environmental Specifications
- IP Rating: IP20
- Operating Frequency: 50 Hz
- Motor Cable Length (Max): 100 metres
- Max Supply Cable Size: 8 mm²
- Max Motor Cable Size: 8 mm²
Compliance & Certifications
- CE Marked: Yes
- UKCA Compliant: Yes
- EMC: Integrated filter (Class C1/C2)
- Safety Standards: EN 61800-5-1
- EMC Standards: EN 61800-3
Key Features & Benefits
✅ 2.2kW, 5.8A Output. Ideal for medium-to-heavy industrial loads.
✅ 400V Three-Phase Input & Output. Reliable and efficient motor control.
✅ Built-in Brake Chopper. Provides enhanced braking and dynamic stopping performance.
✅ Integrated EMC Filter. Ensures compliance and reduces interference.
✅ LED Status Display. Clear feedback and quick diagnostics.
✅ Modbus RTU & CANopen. Seamless integration into automation networks.
✅ Frame Size 2. Increased durability and thermal performance.
📦 Order the TEC-3-240058-3F42 from Drive Outlet Megastore
At Drive Outlet Megastore, we offer unbeatable TEC-3-240058-3F42 prices.
Built for performance and reliability, this TECDrive inverter is trusted across industrial automation, OEM machinery, and process control applications.
Check stock now or request a quote.
Dependable power. Industrial precision. Engineered by TEC. — Drive Outlet Megastore
