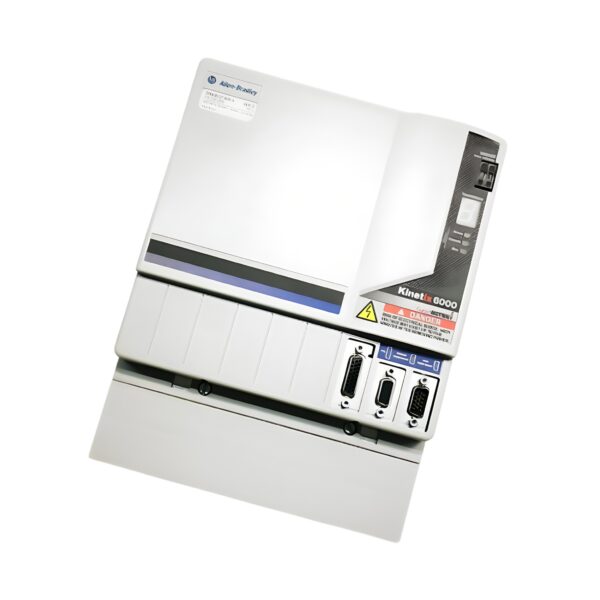

Allen Bradley 2094-BC07-M05-S Integrated Axis Module

The AB 2094-BC07-M05-S is a Kinetix 6000 integrated axis module that combines both converter and inverter functionality into a single compact unit. Designed for high-performance motion applications, this unit delivers a 45 kW (68 A) converter and a 22 kW (49 A) inverter, supporting multi-axis servo control over a 360–480 VAC 3-phase supply.

This integrated drive module includes the Safe Torque-Off (STO) safety feature and is ideal for applications requiring advanced motor performance, compact form factor, and integrated safety in a Rockwell Automation control environment.

Technical Specifications

Model: 2094BC07M05S
Series: Kinetix 6000 (Specify Series at Order)
Drive Type: Integrated Axis Module (Converter + Inverter)
Converter Power Rating: 45 kW (68 A)
Inverter Power Rating: 22 kW (49 A)
Input Voltage: 360–480 VAC, 3PH
Application: Multi-axis motion systems, packaging lines, robotics, high-performance servo motion

Electrical Specifications

• Supply Voltage: 360–480 VAC, 3-phase
• Converter Output: 45 kW / 68 A
• Inverter Output: 22 kW / 49 A
• Input Frequency: 50/60 Hz
• Output Frequency: Varies per axis and control signal
• Safe Torque-Off (STO): Included
• Power Structure: Shared DC bus architecture
• Isolation: Optically isolated control signals

I/O & Communication Interfaces

• Control Interface: Integrated with Logix-based platforms
• Digital Safety: Safe Torque-Off (STO), hardwired
• Encoder Feedback Support: Yes, via separate module
• Compatible Networks: EtherNet/IP (via control system), SERCOS interface (via separate module)

Mechanical Specifications

• Mounting Type: Panel mount (vertical orientation recommended)
• Cooling Method: Internal fan with venting
• Form Factor: Integrated dual-function (converter/inverter)
• Weight: Approx. 11–15 kg (depending on series)
• Enclosure Rating: IP20 (cabinet-mount required)

Environmental Specifications

• Operating Temperature: 0°C to 50°C (with derating above 40°C)
• Storage Temperature: –40°C to +85°C
• Relative Humidity: 5% to 95% non-condensing
• Altitude: Up to 1,000 m (without derating)
• Shock / Vibration: IEC 60068-2-6 compliant

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Functional Safety: STO (SIL 2 / PL d compliant)
• Standards: IEC/EN 61800-5-2, IEC/EN 61508, ISO 13849

Key Features & Benefits

✅ Integrated Converter + Inverter. Simplifies wiring and reduces cabinet footprint.

✅ Safe Torque-Off (STO). Meets SIL 2 / PL d safety requirements.

✅ High Current Capacity. Handles heavy-duty servo axes with 68 A converter and 49 A inverter output.

✅ Modular Design. Part of the scalable Kinetix 6000 motion platform.

✅ Multi-Axis Ready. Ideal for synchronized, high-speed motion control applications.

📦 Order the Allen Bradley 2094-BC07-M05-S from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable 2094-BC07-M05-S prices and technical support. Ensure the correct series is specified at time of order for compatibility.

Check availability or request a quote now.

One module. Total motion control. — Drive Outlet Megastore
