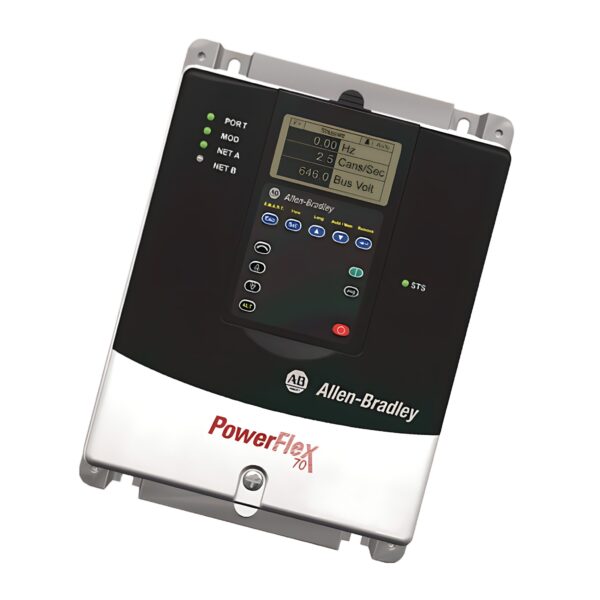

Allen Bradley 20AC8P7A0AYNANC0 Inverter Drive – 4kW, IP20

The AB 20AC8P7A0AYNANC0 is a high-performance AC variable frequency drive from the PowerFlex 70 series, designed for compact industrial applications requiring up to 4 kW (5.5 HP) in normal duty and 3 kW (4 HP) in heavy duty operation. With a nominal output current of 8.7 A, and support for 380–480 VAC three-phase input/output, this unit delivers precision motor control and advanced configurability in demanding environments.

This model features panel-mount IP20/NEMA Type 1 protection, a built-in brake IGBT, second environment EMC filter, and conformal coating for harsh industrial conditions. It is delivered with a blank HIM plate, no communication module, and no feedback device, giving integrators and OEMs full flexibility over final configuration.

Technical Specifications

Model: 20AC8P7A0AYNANC0
Series: PowerFlex 70
Drive Type: AC Frequency Inverter
Power Rating: 4 kW Normal Duty / 3 kW Heavy Duty
Frame Type: Panel Mount
Form Factor: IP20 / NEMA Type 1
Mounting: Panel-mounted
Application: Precision motor control for compact conveyors, fans, pumps, and small machinery

Electrical Specifications

• Input Voltage: 380–480 VAC
• Input Phase: Three-phase (3PH)
• Input Frequency: 50 Hz
• Output Voltage: 3-phase, up to input voltage
• Output Current (Nominal): 8.7 A
• Output Frequency Range: 0–500 Hz
• Brake IGBT: Installed
• Brake Resistor: Not included (drive-ready)
• Load Support: 4 kW (quadratic) / 3 kW (linear)

I/O & Communication Interfaces

• Digital Inputs: 6
• Digital Outputs: 0
• Analog Inputs: 2
• Analog Outputs: 1
• USB Port: Not included
• RS-485 Port: Not included
• Ethernet/IP: Supported
• Supported Protocols: EtherNet/IP, TCP/IP
• Unsupported Protocols: Modbus, DeviceNet, SERCOS, Data Highway

Mechanical Specifications

• Width: 171.7 mm
• Height: 234.6 mm
• Depth: 179.8 mm
• Weight: Approx. 4.8 kg
• Cooling Method: Forced air with internal fan
• HIM Module: Blank plate (no display interface included)

Environmental Specifications

• Operating Temperature: 0°C to 50°C (with derating if required)
• Storage Temperature: –40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)
• IP Rating: IP20 (NEMA Type 1)
• Conformal Coating: Yes (for corrosion resistance)
• EMC Compliance: Second environment filter per CE EMC directive (89/336/EEC)

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: IEC/EN 61800-3, IEC/EN 61800-5-1

Key Features & Benefits

✅ 4 kW / 5.5 HP Output. Ideal for smaller industrial applications needing compact drive solutions.

✅ Integrated Brake IGBT. Pre-installed dynamic braking support for responsive stop control.

✅ EtherNet/IP Ready. Network-ready for seamless integration in modern control architectures.

✅ Conformal Coating. Built for moisture-prone and corrosive environments.

✅ EMC Filter Included. CE-compliant for second environment emissions.

✅ Customizable Configuration. Delivered without HIM, feedback, or communication module for flexible deployment.
