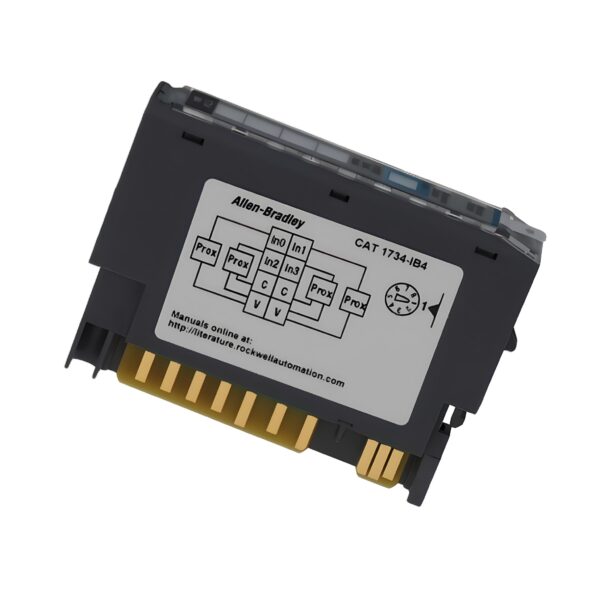

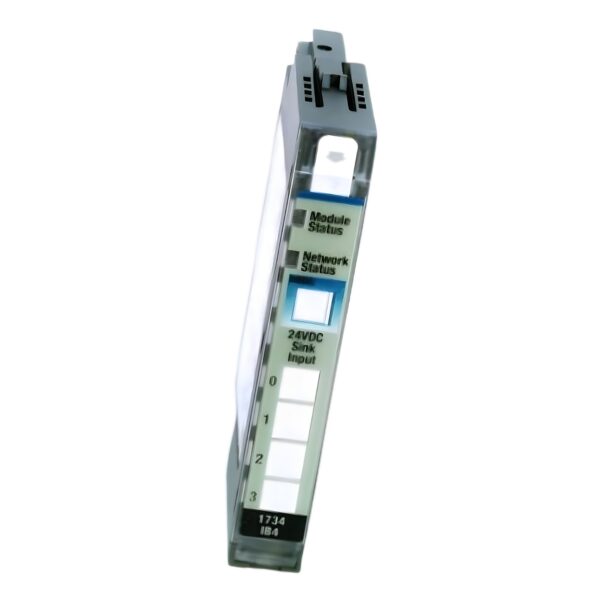

Allen Bradley 1734-IB4 Digital Input Module

The AB 1734-IB4 is a compact and reliable POINT I/O digital input module designed to receive four discrete 24V DC sink inputs. Built for applications requiring high-speed responsiveness in a small footprint, the module is ideal for distributed control systems and space-constrained panels.

Compatible with TB/TBS terminal bases, this module features a plug-in connection for quick installation and supports a wide range of industrial environments, delivering both flexibility and performance in digital signal acquisition.

Technical Specifications

Model: 1734IB4
Series: POINT I/O
Type: Digital Input Module
Input Channels: 4 (Sink)
Input Voltage: 24V DC
Terminal Compatibility: TB/TBS Terminal Base
Mounting Type: DIN Rail

Electrical Specifications

Input Type: Sink (current sourcing device required)
Permitted Input Voltage Range: 24…24 V DC
Isolation: Non-isolated inputs
Overvoltage Protection: No short-circuit protection

Supported Protocols:
• None (requires communication adapter module)
Not Supported:
• EtherNet/IP
• DeviceNet
• MODBUS
• TCP/IP
• PROFIBUS

Mechanical Specifications

Width: 12 mm
Height: 56 mm
Depth: 75.5 mm
Mounting Type: Rail-mounted (DIN rail)
Connection Type: Plug-in terminal

Environmental Specifications

Degree of Protection: IP20
Front Installation Possible: Yes
IO Link Master Capability: No
Operating Temperature: Standard ambient rating
Wall Mounting: Not supported

Compliance & Certifications

CE Marked: Yes
UL Listed: Yes
RoHS Compliant: Yes
Industrial Standards: Meets relevant IEC standards for industrial automation

Key Features & Benefits

✅ Compact 12mm Width – Ideal for applications where space savings are critical

✅ 4 Digital Inputs (24V DC Sink) – Supports high-speed digital signal monitoring

✅ POINT I/O System Compatible – Scalable and flexible for distributed I/O setups

✅ Plug-in Terminal Connection – Simplified wiring and rapid installation

✅ DIN Rail Mountable – Easy integration into control cabinets and panels

📦 Order the Allen Bradley 1734-IB4 from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 1734-IB4 prices. With over 170 units in stock, this POINT I/O module is ready for immediate dispatch. Whether you’re building a new control system or expanding an existing one, rely on us for fast delivery and competitive pricing.

Click here to contact our sales team or request a bulk quote

Trust Drive Outlet Megastore — your go-to supplier for Allen Bradley POINT I/O solutions.
