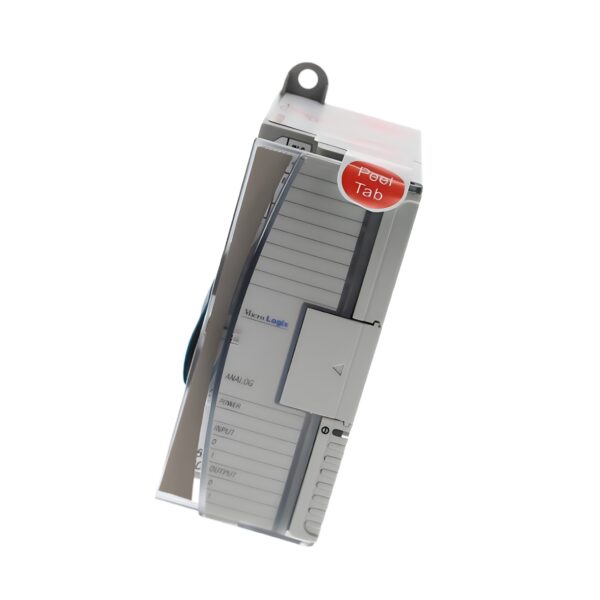

Allen Bradley 1762-IF2OF2 Analog Combination Module

£413.94 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Output Current Yes
Model 1762-IF2OF2
Input Voltage Yes
Series MicroLogix 1200
Module Type Analog Combination I/O
Input Signal Types 4–20 mA, ±10 V
Output Signal Types 4–20 mA, ±10 V
Input Resolution 12-bit
Output Resolution 12-bit
Output Voltage Yes
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: 1762-IF2OF2 Category: Tags: , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 1762-IF2OF2 Analog Combination Module

The AB 1762-IF2OF2 is a compact analog combination module designed for the Allen Bradley MicroLogix 1200 PLC platform. It provides two analog inputs and two analog outputs, supporting both voltage and current signals. With 12-bit resolution on all channels, this module is ideal for small-scale analog signal processing in compact automation systems.

Technical Specifications

Model 1762-IF2OF2
Series MicroLogix 1200
Module Type Analog Combination I/O
Analog Inputs 2 (4–20 mA or ±10 V)
Analog Outputs 2 (4–20 mA or ±10 V)
Resolution 12-bit input / 12-bit output
Mounting DIN rail
Application Signal conditioning, process control, level/flow monitoring

Electrical Specifications

Input Signal Types 4–20 mA, ±10 V
Output Signal Types 4–20 mA, ±10 V
Input Channels 2
Output Channels 2
Input Resolution 12-bit
Output Resolution 12-bit
Input Current Yes
Input Voltage Yes
Output Current Yes
Output Voltage Yes
Isolation Channel-to-backplane isolation

Communication & Integration

Bus Interface MicroLogix 1200 I/O expansion bus
Compatible PLCs MicroLogix 1200 series
Terminal Type Screw terminals
I/O Update Time Dependent on scan time and signal type
Diagnostics Module and channel-level diagnostics via controller

Mechanical Specifications

Width 40.4 mm
Height 90 mm
Depth 87 mm
Weight Approx. 180 g
Mounting Method DIN rail
Connector Type Screw connection
Housing Type Open-type

Environmental Specifications

Operating Temperature 0°C to 55°C
Storage Temperature –40°C to 85°C
Humidity 5% to 95% RH (non-condensing)
IP Rating IP20 (requires enclosure)
Shock Resistance 30 g
Vibration Resistance 5 g, 10–500 Hz
Explosion Safety (Dust/Gas) None

Compliance & Certifications

CE Marked Yes
UL / cUL Listed Yes
RoHS Compliant Yes
Standards IEC/EN 61131-2, EN 61326-1
