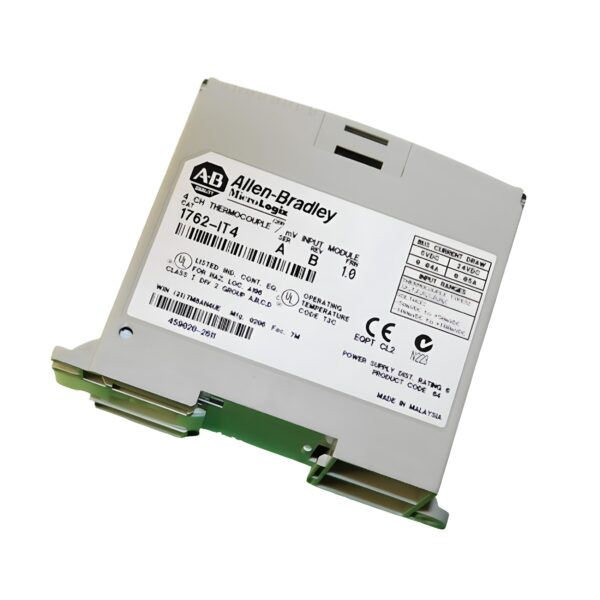

Allen Bradley 1762-IT4 Thermocouple Input Module – 4-Channel Temperature Monitoring for MicroLogix 1200 PLC

The Allen Bradley 1762-IT4 is a 4-channel thermocouple input module designed for precise industrial temperature monitoring in MicroLogix 1200 control systems. Supporting a wide range of thermocouple sensor types, this module enables accurate temperature feedback for heating, cooling, process control, and environmental monitoring applications.

With 16-bit resolution and support for multiple thermocouple types including J, K, T, E, R, S, B, N, C as well as ±50mV and ±100mV millivolt inputs, the 1762-IT4 provides high flexibility for multi-sensor installations. Its compact, panel-friendly design and screw terminal wiring allow easy integration into existing MicroLogix 1200 PLC enclosures.

Technical Specifications

Model: 1762-IT4 Allen Bradley
Series: MicroLogix 1200
Module Type: Thermocouple Temperature Input
Number of Analog Inputs: 4
Supported Thermocouple Types: J, K, T, E, R, S, B, N, C
Millivolt Input Support: ±50 mV / ±100 mV
Resolution: 16-bit
Analog Outputs: None
Connection Type: Screw Terminal

Measurement & Performance

• High-precision 16-bit measurement ensures stable and reliable thermal feedback.
• Multi-type sensor support allows flexible deployment across varied temperature ranges.
• Cold-junction compensation managed by MicroLogix system firmware.
• Ideal for multi-zone thermal process control in manufacturing environments.

Mechanical Specifications

• Height: 90 mm
• Width: 40.4 mm
• Depth: 87 mm
• Mounting: Direct expansion to MicroLogix 1200 system chassis
• Field Wiring: Screw terminal connectors for secure and maintainable installation

Environmental & Application Suitability

• Typical Applications: Ovens, furnaces, HVAC, industrial heating/cooling loops, environmental monitoring systems
• Explosion Safety: Not rated for hazardous locations (standard industrial environments)
• Used In: Manufacturing plants, food processing, plastics, packaging, material treatment

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes

Key Features & Benefits

✅ 4 thermocouple inputs enable monitoring across multiple temperature zones.

✅ Supports all major thermocouple standards for global system compatibility.

✅ High-resolution 16-bit measurement ensures accuracy in critical process control.

✅ Screw terminal wiring allows clean and serviceable panel installation.

✅ Seamlessly integrates with MicroLogix 1200 PLC systems for stable runtime control.

📦 Order the Allen Bradley 1762-IT4 from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 1762-IT4 prices, with fast delivery and full support for MicroLogix temperature control applications.

Check stock now or request a quote.

Measure temperature with confidence. Allen Bradley engineered — only at Drive Outlet Megastore.
