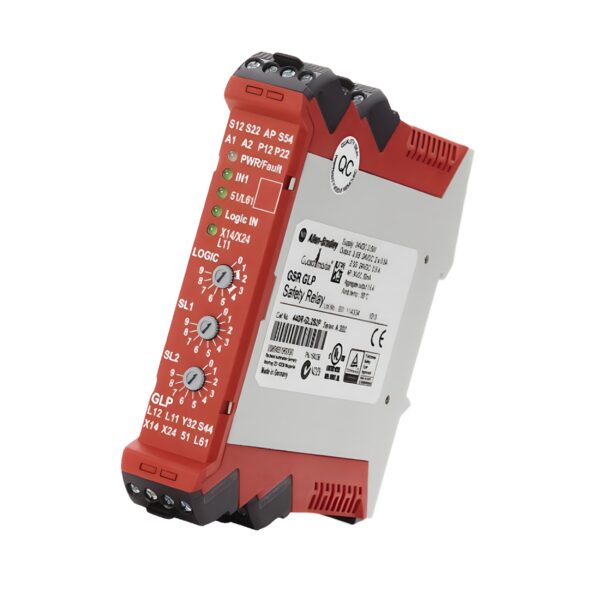

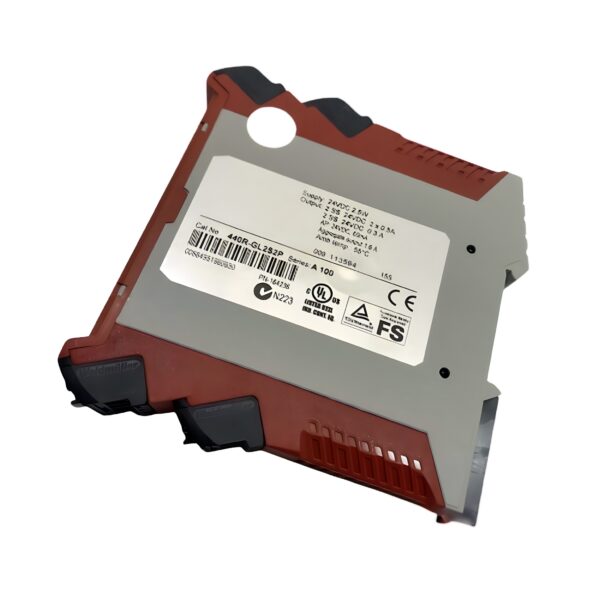

Allen Bradley 440R-GL2S2P Guardmaster Safety Relay – GLP, 24V DC Supply, Dual-Channel Input, 2 N.O. Safety Outputs, 1 N.C. Solid-State Auxiliary

The Allen Bradley 440R-GL2S2P is a Guardmaster Guardlocking Proximity Safety Relay (GLP) designed to monitor safety gate interlocks, guardlocking switches, and proximity-based safety devices. Operating on a 24V DC supply, this compact relay module provides two normally open (N.O.) safety outputs and one normally closed (N.C.) solid-state auxiliary output, offering reliable machine protection in demanding industrial environments.

With dual-channel input evaluation and Performance Level “e” per EN ISO 13849-1, the 440R-GL2S2P ensures fault tolerance and redundancy in safety circuits. Its slim 22.5mm housing allows easy installation on standard DIN rails, while removable plug-in terminals simplify wiring and maintenance. This safety relay is ideal for applications requiring monitoring of guardlocking proximity devices with category 0 stop functionality.

Technical Specifications

Model: 440R-GL2S2P Allen Bradley
Series: Guardmaster GLP
Product Type: Guardlocking Proximity Safety Relay
Supply Voltage: 24V DC
Voltage Type: DC
Input Channels: Dual-channel (2-channel evaluation)
Safety Outputs (Instantaneous): 2 N.O. contacts
Auxiliary Output: 1 N.C. solid-state output
Performance Level (EN ISO 13849-1): Level e
Stop Category (IEC 60204): 0
Mounting Type: DIN Rail (35mm top hat)
Connection Type: Plug-in terminals with detachable clamps
Dimensions (W x H x D): 22.5 x 105.7 x 113.6 mm

Electrical & Performance Details

• Supply Voltage Range: 24V DC ±10%
• Safety Outputs: 2 N.O. mechanical contacts
• Auxiliary Output: 1 N.C. solid-state transistor output
• Input Type: Dual PNP proximity or guardlocking input channels
• Safety Category: Category 4 / Performance Level e
• Stop Function: Category 0 stop according to IEC 60204
• Feedback Circuit: Yes (monitors external contactors or actuators)
• Muting Function: No
• Start Input: Yes (configurable automatic/manual start)

Mechanical Specifications

• Width: 22.5 mm
• Height: 105.7 mm
• Depth: 113.6 mm
• Mounting: DIN rail (35mm top hat)
• Connection: Plug-in terminals with detachable clamps
• Housing: Compact industrial safety relay enclosure

Environmental & Application Suitability

• Typical Applications: Guardlocking switches, interlocked gates, and proximity-based machine safety systems
• Stop Category: Suitable for Category 0 stop functions
• Monitoring Capability: Dual-channel inputs with feedback loop monitoring
• Not Suitable For: Optoelectronic sensors, magnetic or tactile switches
• Installation Environment: Industrial control cabinets, machinery safety panels

Compliance & Certifications

• Performance Level: PL e (EN ISO 13849-1)
• Stop Category: 0 (IEC 60204)
• UL / cUL Listed: Yes
• CE Marked: Yes
• RoHS Compliant: Yes

Key Features & Benefits

✅ Dual-channel input monitoring for redundancy and fault tolerance.

✅ Compact 22.5mm width saves valuable control panel space.

✅ 2 N.O. safety outputs ensure reliable disconnection of hazardous motion.

✅ 1 N.C. solid-state auxiliary output provides system status indication.

✅ Category 0 stop function for rapid machine shutdown in emergencies.

✅ Plug-in terminals with detachable clamps simplify installation and servicing.

✅ Compliant with EN ISO 13849-1 PL e for the highest safety performance.
