GS-53PC

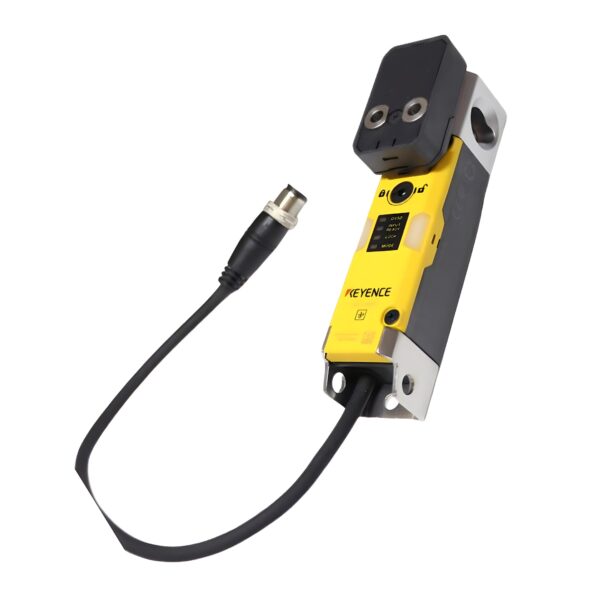

Keyence GS-53PC Advanced Function Safety Lock

£684.19 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsKeyence
Model GS53PC
Type Advanced function safety lock, power-to-release type
Product Series GS Series
Output Type Transistor outputs ×2
Voltage 24 V DC ±20% (Ripple P-P 10% or less, Class 2)
Acceptable Operation Frequency 1 Hz ( up to 3 Hz in specific OSSD modes )
Enclosure Rating IP65/67 (IEC60529), IP69K (ISO 20653), TÜV SÜD certified
Residual Voltage (ON State) Max. 2.5 V ( with 5 m cable )
OFF State Voltage Max. 2.0 V ( with 5 m cable )
Weight Approx. 380 g
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: GS-53PC Category: Tags: , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Keyence GS-53PC Advanced Function Safety Lock

The Keyence GS-53PC is a power-to-release safety lock designed for high-security applications in industrial safety and machine guarding systems . With 2,000 N locking force , IP69K-rated enclosure , and advanced cascading capabilities , this safety lock provides maximum protection in hazardous work environments.

Technical Specifications

Manufacturer Keyence
Product Series GS Series
Model GS53PC
Type Advanced function safety lock, power-to-release type
Locking Force (Fzh) Minimum 2,000 N
Alignment Tolerance of Lock ±2 mm (±0.08")
Mechanical Life-Span 1 million cycles or more ( with door operation speed of 1 m/s )
Acceptable Operation Frequency 1 Hz ( up to 3 Hz in specific OSSD modes )
Door Radius Minimum 250 mm (9.84")
Auxiliary Release Front, back
Cascading Up to 25 units

Response Time

Lock → Unlock 220 ms
Unlock → Lock 220 ms ( 430 ms when locked at the same time actuator is detected )

Control Output (OSSD Output)

Output Type Transistor outputs ×2
Max. Load Current 150 mA
Residual Voltage (ON State) Max. 2.5 V ( with 5 m cable )
OFF State Voltage Max. 2.0 V ( with 5 m cable )
Leakage Current Max. 0.5 mA
Max. Capacitive Load 2.2 µF
Load Wiring Resistance Max. 2.5 Ω

AUX (Non-Safety Related Output)

Output Type Transistor output
Number of Outputs 2
Max. Load Current 50 mA

External Inputs (Short-Circuit Current)

Safety Input Approx. 1.5 mA ×2
Reset/EDM Input Approx. 10 mA ×1
Lock Control Input Approx. 2.5 mA ×2

GS-53PC Applicable Safety Standards

EN ISO 13849-1 2015 (PLd, Category 2 / PLe, Category 4)
Standards & approvals EN 61508, IEC 61508 (SIL2/SIL3)EN 62061, IEC 62061 (SIL CL2/SIL CL3)EN ISO 14119 (Type 4)IEC 60947-5-3, EN 60947-5-3UL 61010-1, CAN/CSA-C22.2 No.61010-1

Protection Circuits

Functions & features Reverse current protectionShort-circuit protectionSurge protection for each output

Power Supply & Consumption

Voltage 24 V DC ±20% (Ripple P-P 10% or less, Class 2)
Power Consumption 3.4 W ( temporarily increases to max. 10.5 W for approx. 0.2 s when lock control input is turned ON )

Environmental Resistance

Enclosure Rating IP65/67 (IEC60529), IP69K (ISO 20653), TÜV SÜD certified
Operating Temperature -20°C to +55°C (-4°F to 131°F) ( No freezing )
Operating Relative Humidity 5% to 95% RH
Storage Temperature -25°C to +70°C (-13°F to 158°F) ( No freezing )
Storage Relative Humidity 5% to 95% RH

Durability & Resistance

Vibration Resistance 10 to 55 Hz, Double amplitude 2.0 mm (0.08"), 5 minutes in each X, Y, and Z directions ( IEC 60947-5-3 )
Shock Resistance 30 G, 6 times per X, Y, and Z directions ( IEC 60947-5-3 )

Material & Construction

Case SUS304, PPS, PBT, PAR, PA66, NBR
Lock Aluminum alloy, Zinc die-cast (Nickel chrome plating)
Cable PVC
Case PPS, PBT, NBR
Lock Aluminum alloy, SUS303
Sensor Main Unit Case: SUS304, PPS, PBT, PAR, PA66, NBR Lock: Aluminum alloy, Zinc die-cast (Nickel chrome plating) Cable: PVC
Actuator Case: PPS, PBT, NBR Lock: Aluminum alloy, SUS303

Weight & Accessories

Weight Approx. 380 g
Included Accessories Instruction Manual

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether GS-53PC is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can GS-53PC be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.38 kg
