SICK TR4-SDU03PB RFID Safety Sensor (6070806)

£247.19 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsSICK
Model TR4-SDU03PB
Series TR4 Direct
Part Number 6070806
Output Current ≤ 200 mA
Sensor Type RFID safety sensor with actuator
Type of Output Self-monitoring semiconductor outputs
Supply Voltage (Vs) 24 V DC (20.4–26.4 V DC)
Connection Type Cable or connector (not specified – consult technical sheet)
Enclosure Rating IP67
Sensor Principle RFID, uniquely coded
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

SICK TR4-SDU03PB RFID Safety Sensor (6070806)

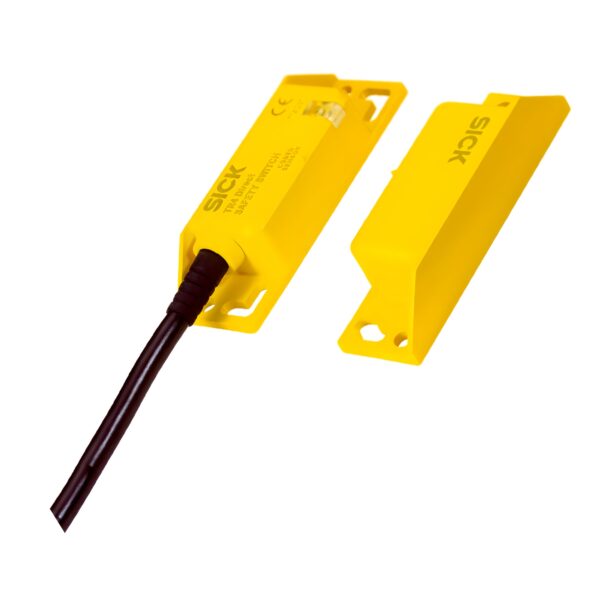

TR4SDU03PB – The SICK TR4-SDU03PB is a rugged and tamper-proof RFID safety sensor designed for secure monitoring of movable guards in safety-critical applications. With uniquely coded RFID technology , two self-monitoring OSSD outputs , and compact dimensions, this sensor ensures high protection against manipulation while meeting strict safety integrity standards.

Technical Specifications

Model TR4-SDU03PB
Part Number 6070806
Series TR4 Direct
Sensor Type RFID safety sensor with actuator
System Part Sensor and actuator included
Sensor Principle RFID, uniquely coded
Safe Switch-On Distance (Sao) 15 mm
Safe Switch-Off Distance (Sar) 25 mm
Active Sensor Surfaces 2
Actuation Directions 5
Number of Safe Outputs 2 (OSSDs)
Type of Output Self-monitoring semiconductor outputs
Supply Voltage (Vs) 24 V DC (20.4–26.4 V DC)
Power Consumption ≤ 50 mA
Output Current ≤ 200 mA
Response Time 45 ms
Release Time 360 ms
Risk Time ≤ 100 ms
Switch-On Time 2 s
Electrical Life 10 million switching cycles
Protection Class III (EN 50178)
UL Classification Class 2
Housing Material Valox® DR48
Design Rectangular
Weight 270 g

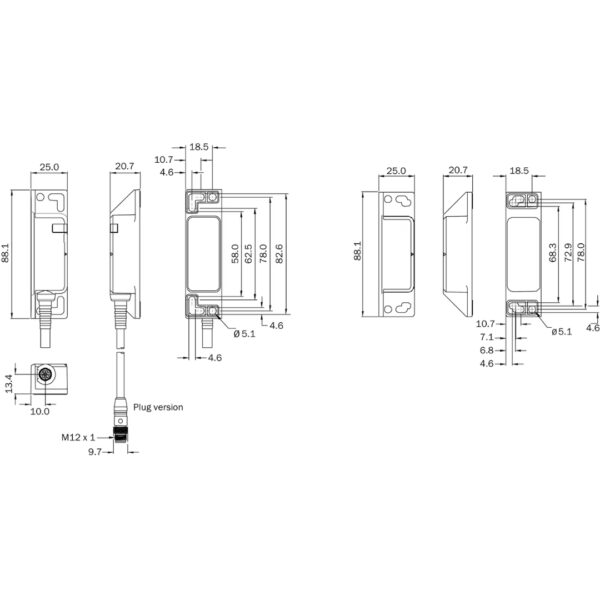

Dimensions (W × H × D) 25 × 88 × 20 mm
Enclosure Rating IP67
Connection Type Cable or connector (not specified – consult technical sheet)
Country of Origin Germany
Lifecycle Status Active product

Function & Application

Purpose The TR4-SDU03PB is engineered to prevent unsafe access to hazardous areas by providing reliable position monitoring of guards and doors using RFID coding. It meets performance level requirements for machinery safety systems and is immune to tampering via unique coding.
Machine guard position monitoring
Automated production cell safety
Packaging machine interlocks
Robotics enclosures and safety zones
Applications requiring unique actuator pairing

Compliance & Classification

CE Conformity Yes
cULus Certified Yes
RCM (Australia/NZ) Yes
RoHS Compliance Yes
WEEE Take-Back Obligation Yes
SCIP Number Not applicable
Commodity Code 85365080
Product Class A – Returnable stock item

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether TR4-SDU03PB is the correct replacement?

Check the operating voltage, sensing or protective range, output type, connections and required accessories against your existing installation or the relevant manufacturer datasheet.

How quickly can TR4-SDU03PB be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.27 kg
