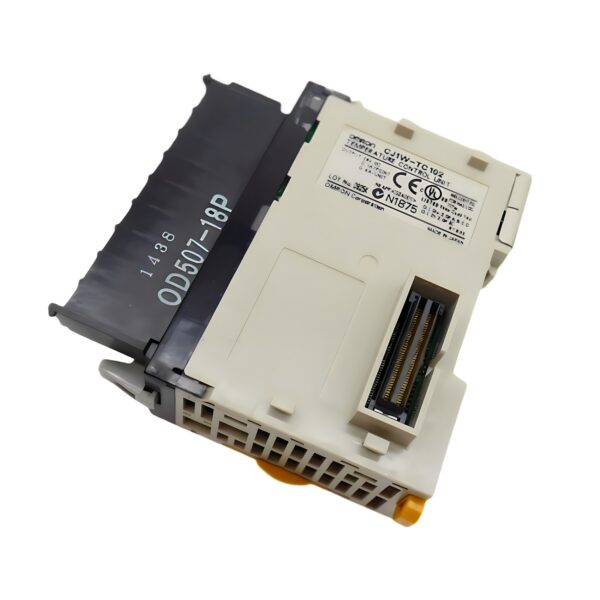

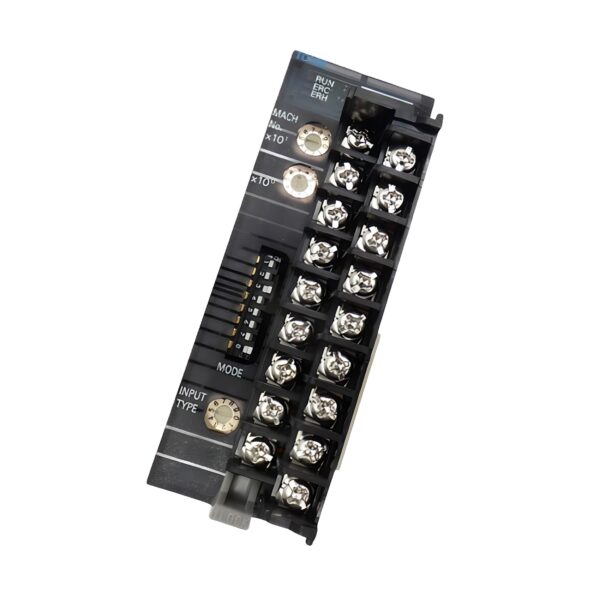

Omron CJ1W-TC102 Temperature Control Unit

The Omron CJ1W-TC102 is a precision 4-loop temperature control unit designed for seamless integration into the CJ-series modular PLC platform. It accepts Pt100 RTD inputs for accurate temperature sensing and provides voltage pulse (PNP) transistor outputs for control, supporting heat or cool operation modes.

Ideal for process and equipment temperature regulation, this unit provides high-precision control over four independent loops, offering dependable performance for industrial ovens, heaters, packaging, and other thermal applications.

Technical Specifications

Model: Omron TC102
Series: CJ1/CJ2 Modular PLC
Type: Temperature Control Unit
Input Type: Pt100 RTD (4 channels)
Output Type: Voltage Pulse, PNP Transistor (4 channels)
Control Function: Heat or Cool
Number of Control Loops: 4
I/O System: CJ I/O Bus
Expansion Unit Type: Special I/O

Electrical Specifications

• Voltage Pulse Output Type: PNP transistor
• Output Drive Capability: Suitable for solid-state relay triggering
• Temperature Input Type: Pt100 (3-wire RTD)
• Analog Input Range: RTD – Pt100 (–200 to +850°C typical)
• Heater Burnout Detection: Optional (available via parameter settings)
• Input/Output Isolation: Yes (via opto-isolation)

Mechanical Specifications

• Mounting Type: DIN Rail
• I/O Connection Type: Screw terminal block
• Detachable Connector: No
• Unit Dimensions (H × W × D): 90 × 31 × 89 mm
• Weight: 200 g
• Enclosure Rating: IP20 (panel mounted)

Environmental Specifications

• Operating Temperature: 0 to 55°C
• Storage Temperature: –20 to 75°C
• Relative Humidity: 10–90% RH (non-condensing)
• Vibration Resistance: 5 to 8.4 Hz at 3.5 mm; 8.4 to 150 Hz at 9.8 m/s²
• Shock Resistance: 147 m/s², 3 times in 6 directions
• Standards Compliance: EN61131-2, EN61010-2-201

Compliance & Approvals

• CE Marked: Yes
• RoHS Compliant: Yes
• UL / cUL Listed: Yes

Key Features & Benefits

✅ 4 Independent Control Loops. Enables multi-zone temperature regulation within one compact unit.

✅ Pt100 RTD Inputs. Provides high accuracy and stability over a wide temperature range.

✅ Voltage Pulse PNP Outputs. Compatible with SSRs for precise heater or cooler activation.

✅ Flexible Integration. Seamlessly connects into CJ-series modular PLC systems.

✅ Compact 31 mm Width. Saves panel space without compromising performance.

📦 Order the Omron CJ1W-TC102 Today from Drive Outlet Megastore

Delivering Omron’s trusted quality in modular control, the CJ1W-TC102 is engineered for process precision and versatility. Get fast shipping and unbeatable prices from Drive Outlet Megastore – your automation partner.

Check availability now or request a quote.

Reliable temperature control. Compact design. Omron excellence. — Drive Outlet Megastore
