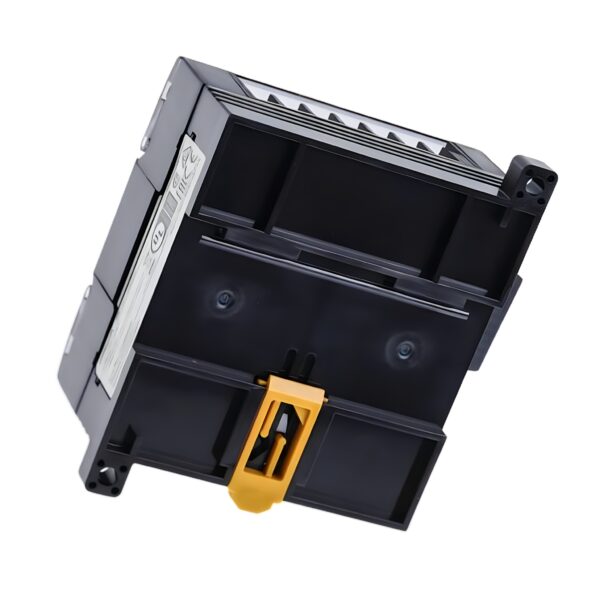

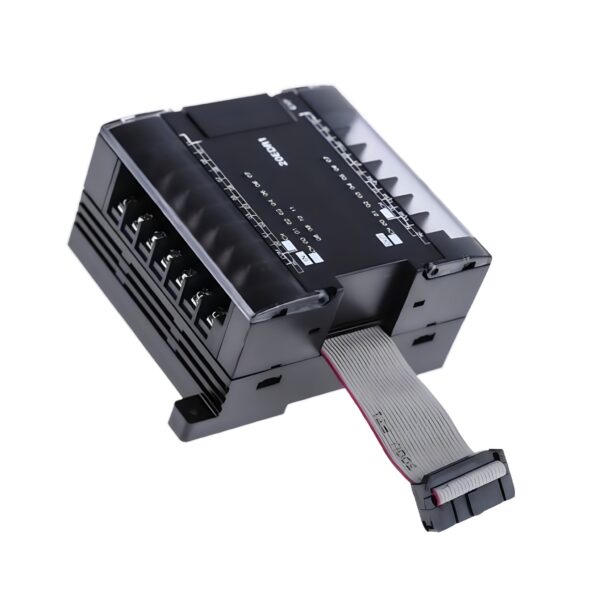

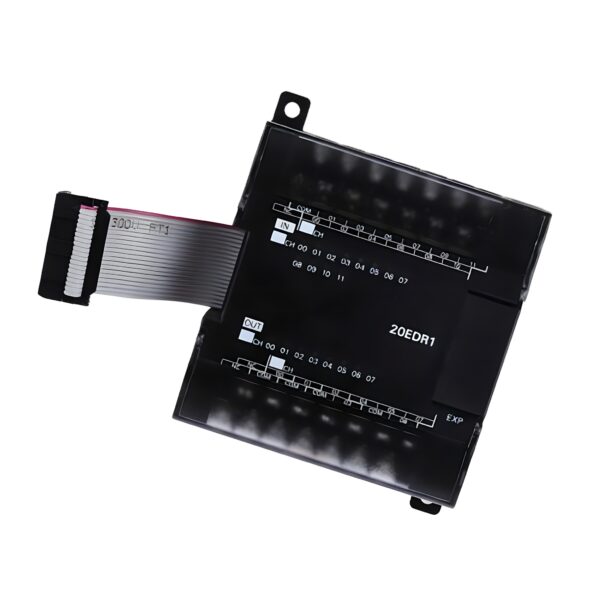

Omron CP1W-20EDR1 I/O Expansion Unit

Name: Omron CP1W-20EDR1 I/O Expansion Unit
SKU: CP1W-20EDR1
Price: 235.69 GBP
Availability: InStock

£235.69 inc VAT

In Stock · Delivered in 3–5 Working Days

Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.

Technical SpecificationsOmron

Model	Omron 20EDR1
Product Type	I/O Expansion Unit
Series	CP1W
Input Voltage	24 VDC
Rated Output Current	2 A per point
Mounting Type	DIN rail or panel mount
Input Type	PNP/NPN
Output Type	Relay (Normally Open)
I/O Connector Type	Fixed screw terminals
Dimensions (W × H × D)	86 × 90 × 50 mm

✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: CP1W-20EDR1 Category: Omron Modules Tag: CP1W-20EDR1 Brand: Omron

Guaranteed Safe Checkout

Extra Features

100% Brand New & Genuine OEM Product
Includes Full 2-Year Warranty for Peace of Mind
Fast UK & Worldwide Shipping – Fully Tracked
Expert Technical Support from Our In-House Engineers
Found a Better Price? We’ll Match or Beat It Instantly

Omron CP1W-20EDR1 I/O Expansion Unit

The Omron CP1W-20EDR1 is a versatile I/O expansion unit designed for use with CP-series PLCs, including CP1H , CP1L , CP1E , and CP2E models. This unit provides 12 digital inputs (24 VDC) and 8 relay outputs (2 A) , enabling quick and easy expansion of control systems where additional discrete I/O is required.

Technical Specifications

Model	Omron 20EDR1
Series	CP1W
Product Type	I/O Expansion Unit
Mounting Type	DIN rail or panel mount
Dimensions (W × H × D)	86 × 90 × 50 mm
Weight (Unpacked)	300 g
Degree of Protection	IP20
Compatible PLCs	CP1H, CP1L, CP1E, CP2E

Digital Input Specifications

Number of Inputs	12
Input Voltage	24 VDC
Permitted Input Range	20.4 to 26.4 VDC
Input Type	PNP/NPN
OFF/ON Delay	0–32 ms (configurable)

Digital Output Specifications

Number of Outputs	8
Output Type	Relay (Normally Open)
Rated Output Current	2 A per point
Permitted Output Voltage	5 to 250 V (AC/DC)
Isolation	Relay isolation between channels

Electrical & Mechanical

I/O Connector Type	Fixed screw terminals
Cooling Method	Natural convection
Installation Orientation	Horizontal or vertical mounting supported
Wiring Method	Screw-type terminal blocks

Environmental Conditions

Operating Temperature	0 to 55°C
Storage Temperature	–25 to +70°C
Relative Humidity	10% to 90% RH (non-condensing)
Altitude	Up to 2000 m
Vibration Resistance	Conforms to IEC 60068-2-6
Shock Resistance	Conforms to IEC 60068-2-27

Frequently Asked Questions

How can I check whether CP1W-20EDR1 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can CP1W-20EDR1 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight	0.3 kg
