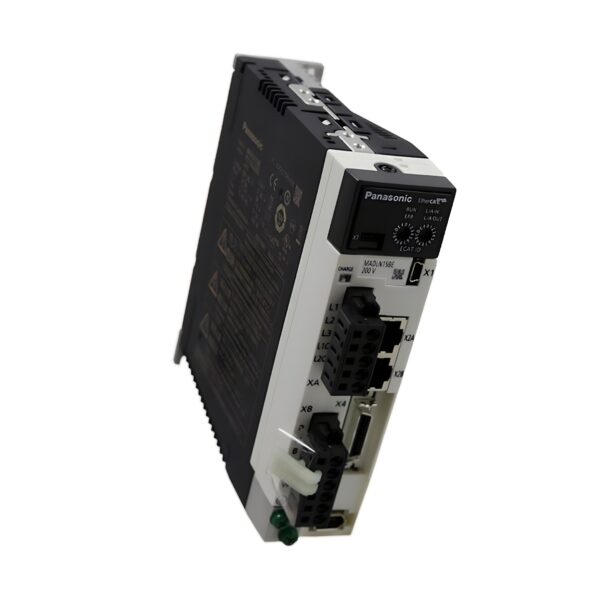

Panasonic MADLN15BE MINAS A6B Servo Drive

£339.19 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsPanasonic
Model MADLN15BE Panasonic
Maximum Output Current As per motor configuration
Input Voltage Range 170–253V AC (1Ø / 3Ø, 50/60 Hz)
Series MINAS A6B
Motor Control Type AC Servo Drive
Control Signal Type EtherCAT (CoE, CiA402 profile compliant)
Rated Voltage 200V AC
Communication Interface EtherCAT
Mounting Panel mount
Weight Approx. 1.2 kg (typical)
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: MADLN15BE Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Panasonic MADLN15BE MINAS A6B Servo Drive

The Panasonic MADLN15BE is a compact and high-performance servo drive from the MINAS A6B Series, offering real-time EtherCAT communication and precise 200 W motion control. Designed for next-generation automation systems, this servo driver supports both single-phase and three-phase 200V power inputs, providing excellent flexibility and responsiveness in demanding applications.

Technical Specifications

Model MADLN15BE Panasonic
Series MINAS A6B
Motor Control Type AC Servo Drive
Rated Output Power 200 W
Rated Voltage 200V AC
Supported Power Input 1-phase / 3-phase 200V
Communication Interface EtherCAT
Control Mode Position / Velocity / Torque / Full-Closed Loop

Electrical Specifications

Input Voltage Range 170–253V AC (1Ø / 3Ø, 50/60 Hz)
Maximum Output Current As per motor configuration
Safety Functions STO (Safe Torque Off), IEC 61800-5-2 compliant
Control Signal Type EtherCAT (CoE, CiA402 profile compliant)

Mechanical Specifications

Mounting Panel mount
Cooling Forced air (internal fan)
Construction Compact, robust industrial housing
Weight Approx. 1.2 kg (typical)

Environmental Specifications

Operating Temperature 0°C to 55°C
Storage Temperature –20°C to +65°C
Humidity 5% to 90% RH (non-condensing)
Vibration/Shock Resistance IEC 60068-2 compliant
Protection Class IP20 (when panel mounted)

Compliance & Certifications

CE Marked Yes
UL / cUL Listed Yes
RoHS Compliant Yes
EtherCAT Conformance Certified by EtherCAT Technology Group (ETG)

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether MADLN15BE is the correct replacement?

Check the motor rating, supply voltage, drive output current, enclosure rating and control interface against your existing installation or the relevant manufacturer datasheet.

How quickly can MADLN15BE be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 1.2 kg
