AFPXHC60RD

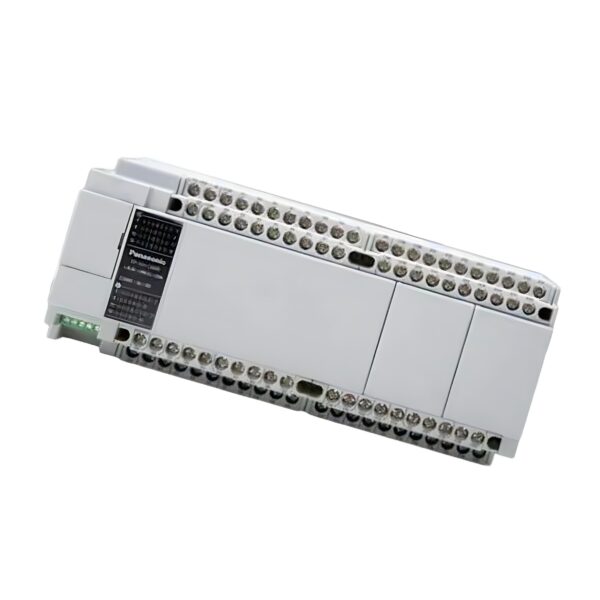

Panasonic AFPXHC60RD FP-XH Control Unit

£436.94 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsPanasonic
Model AFPXHC60RD Panasonic
Series FP-XH
Overvoltage Category II
Supported Protocols – MEWTOCOL COM – General Communication – MODBUS RTU (Master/Slave) – PLC Link (up to 16 units)
Protection Rating IP65 (excluding terminals)
Password Protection 4/8/32 digits
Power Supply 24V DC
Input Points 32-point digital input (24V DC)
Output Points 28-point relay output (2 A)
Programming Method Relay symbol
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: AFPXHC60RD Category: Tag: Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Panasonic AFPXHC60RD FP-XH Control Unit

The Panasonic AFPXHC60RD is a C60 model FP-XH Control Unit designed for high-performance programmable logic control in compact industrial automation systems. With 32 digital inputs and 28 relay outputs operating on a 24V DC power supply, this unit delivers excellent I/O capacity in a small footprint.

Technical Specifications

Model AFPXHC60RD Panasonic
Series FP-XH
Power Supply 24V DC
Input Points 32-point digital input (24V DC)
Output Points 28-point relay output (2 A)
Programming Method Relay symbol
Control Method Cyclic operation
Program Memory Built-in Flash ROM
Program Capacity 24k / 32k / 40k steps (selectable)

Environmental & Safety Ratings

Operating Temperature 0 to +55 °C
Storage Temperature -40 to +70 °C
Operating Humidity 10–95% RH (non-condensing)
Protection Rating IP65 (excluding terminals)
Vibration Resistance 5–150 Hz, 9.8 m/s²
Shock Resistance 147 m/s² (4 times X, Y, Z)
Noise Resistance 1000 V P-P, 50 ns / 1 µs
Compliance EN 61131-2, EMC Directive
Overvoltage Category II
Pollution Degree 2

Performance & Memory

Basic Instructions Approx. 110
High-Level Instructions Approx. 220
Instruction Speed 0.04–1.73 µs/step
Data Register (DT) Up to 64k words
Internal Relays (R) 8,192 points
Timer/Counter 1,024 points
Subroutines 500
Step Ladders 1,000 steps
Index Registers (I) 14 words

High-Speed I/O & Pulse Control

High-Speed Counters – 8 ch single-phase (10 kHz) or 4 ch 2-phase (5 kHz) – With cassette: 4 ch (100 kHz) or 2 ch 2-phase (50 kHz)
Pulse Output – 2 ch with cassette, up to 100 kHz
PWM Output – 2 ch with cassette – 1 Hz–70 kHz (1000 resolution), up to 100 kHz
Pulse Catch/Interrupt Inputs – 14 total (8 base + 6 with 2 cassettes)

Communication & Networking

COM Ports Up to 5 (with cassettes)
Supported Protocols – MEWTOCOL COM – General Communication – MODBUS RTU (Master/Slave) – PLC Link (up to 16 units)
Link Memory – Link Relay: 1,024 points – Link Register: 128 words

Additional Features

Clock/Calendar With optional MRTC cassette
Battery Backup Optional (5+ year lifespan)
Password Protection 4/8/32 digits
Backup Memory Flash ROM + battery option
Input Time Constant Processing Available
Potentiometer Input 1 ch (0–4000)
Periodic Interrupt 1 point, 0.1 ms–30 s

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether AFPXHC60RD is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can AFPXHC60RD be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 1.5 kg
