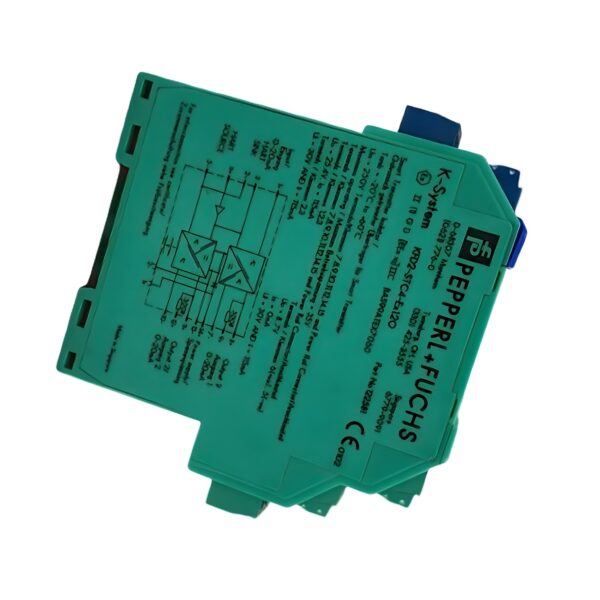

Pepperl Fuchs KFD2-STC4-Ex1.2O Transmitter Power Supply (283674)

P&F KFD2-STC4-Ex1.2O is a 1-channel SMART transmitter power supply with dual analog outputs, functioning as a signal splitter. Designed for hazardous area installations, it supports 2-wire and 3-wire SMART transmitters or 2-wire current sources and transmits isolated 0/4–20 mA signals to two independent outputs. Supporting HART, BRAIN, and Foxboro protocols, this unit is SIL 3 certified for high-integrity safety applications.

Technical Specifications

• Model: KFD2-STC4-Ex1.2O
• Function: SMART Transmitter Power Supply with Signal Splitter
• Channels: 1 input / 2 outputs
• Input Signal: 0/4 … 20 mA
• Output Signal: 0/4 … 20 mA (overload > 25 mA)
• Power Supply: 20 … 35 V DC (via Power Rail or terminals)
• Signal Direction: Field to control side
• Mounting: 35 mm DIN rail (EN 60715)
• Connection Type: Screw terminals with integrated HART test sockets

Electrical Features

• Isolation: 3-way isolation (input/output/output/power)
• Signal Type: Analog 0/4–20 mA with HART, BRAIN, and Foxboro compatibility
• Load Resistance: 0 … 550 Ω per output
• Ripple: Max. 50 µA rms
• Transfer Accuracy: ≤ 10 µA at 20 °C
• Frequency Range: 0 … 7.5 kHz (bi-directional)
• Settling Time: 200 µs
• Rise/Fall Time: 20 µs

Environmental Conditions

• Temperature Range: -20 … 60 °C
• Protection: IP20
• Weight: Approx. 200 g
• Housing Type: B2 (20 x 124 x 115 mm)
• Approvals: ATEX, IECEx, UL, FM

Hazardous Area Compliance

• Zone Classification: Zone 0, 1, 2 / Div. 1, 2
• ATEX Marking: II (1) G [Ex ia Ga] IIC / II (1) D [Ex ia Da] IIIC / I (M1) [Ex ia Ma] I
• IECEx Marking: [Ex ia Ga] IIC, [Ex ia Da] IIIC, Ex nA IIC T4 Gc
• SIL Rating: SIL 3 compliant (IEC/EN 61508)

Key Features & Benefits

✅ Dual Output Splitter: Enables redundant signal routing to two destinations.

✅ Protocol Support: Fully compatible with HART, BRAIN, and Foxboro field devices.

✅ Test-Friendly Design: Built-in HART test sockets for diagnostics and maintenance.

✅ SIL 3 Certified: High-integrity signal isolation for safety-critical systems.

✅ Reliable Signal Integrity: 3-way galvanic isolation with minimal deviation.
