Phoenix Contact 2862246 PROFIBUS DP Bus Coupler – IL PB BK DP/V1-PAC

£264.44 inc VAT

In Stock · Delivered in 5–7 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsPhoenix Contact
Model IL PB BK DP/V1-PAC
Product Type Bus Coupler (PROFIBUS DP)
Part Number 2862246
Mounting Type DIN rail
Interface Type PROFIBUS DP

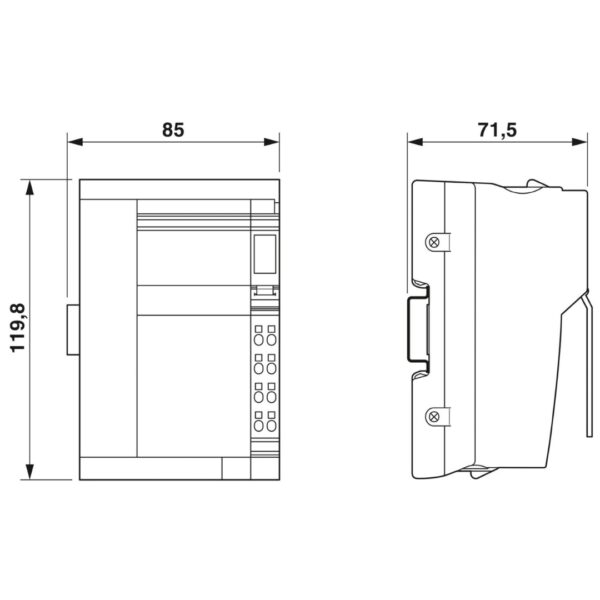

Dimensions (W × H × D) 85 × 119.8 × 71.5 mm
Speed Range 9.6 kbps to 12 Mbps
Isolation Voltage 500 V AC
Power Dissipation Max 3 W
Test Voltage (PROFIBUS to Local Bus/Power) 500 V AC
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It InstantlySend us the competing price or quote for a personalised offer.

24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Phoenix Contact 2862246 PROFIBUS DP Bus Coupler – IL PB BK DP/V1-PAC

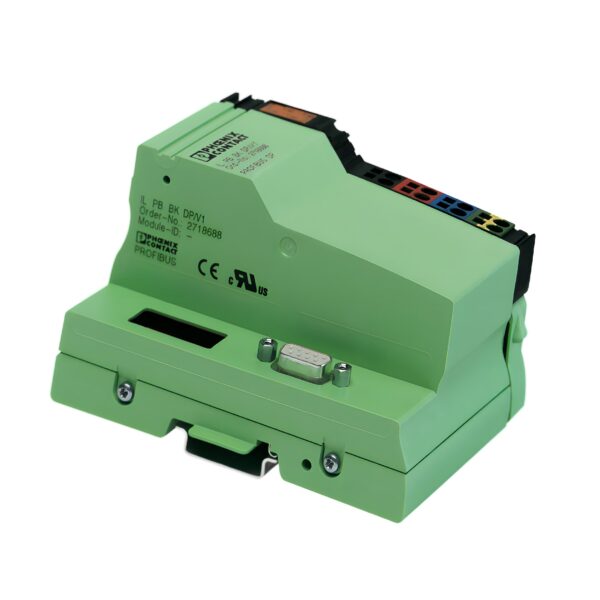

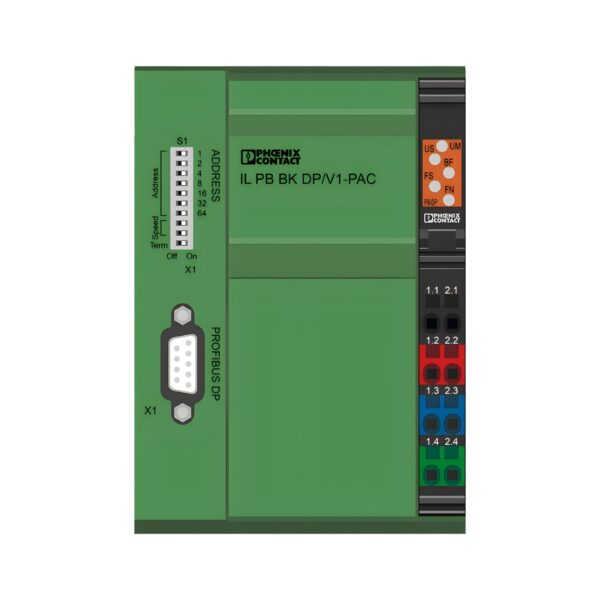

The Phoenix Contact IL PB BK DP/V1-PAC is a high-performance bus coupler designed to link Inline I/O terminals with a PROFIBUS DP fieldbus . It supports up to 63 local bus devices and 16 PCP (parameter channel protocol) devices , providing streamlined integration of modular I/O stations into industrial PROFIBUS networks.

Technical Specifications

Model IL PB BK DP/V1-PAC
Part Number 2862246
Product Type Bus Coupler (PROFIBUS DP)
Mounting Type DIN rail
Protection Class IP20
Dimensions (W × H × D) 85 × 119.8 × 71.5 mm
Interface Type PROFIBUS DP
Local Bus Transmission Speed 500 kbps

Fieldbus Interfaces

Connector D-SUB-9 (female)
Speed Range 9.6 kbps to 12 Mbps
Isolation Voltage 500 V AC
Connector Inline data jumper
Speed 500 kbps
Max Devices 63 modules + 16 PCP devices
PROFIBUS DP Connector: D-SUB-9 (female) Speed Range: 9.6 kbps to 12 Mbps Isolation Voltage: 500 V AC
Inline Local Bus Connector: Inline data jumper Speed: 500 kbps Max Devices: 63 modules + 16 PCP devices

Electrical Properties

Power Supply (UBK) 24 V DC (range: 19.2–30 V DC)
Typical Current Draw (no load) 100 mA
Max Current Draw (full load) 1.25 A
Power Dissipation Max 3 W
UL (Comms Power) 7.5 V DC
UANA (Analog Modules) 24 V DC
UM/US (Main/Segment Power) 24 V DC (range: 19.2–30 V DC)
Surge/Polarity Protection Integrated
Internal Potentials UL (Comms Power): 7.5 V DC UANA (Analog Modules): 24 V DC UM/US (Main/Segment Power): 24 V DC (range: 19.2–30 V DC)

Isolation and Protection

Test Voltage (PROFIBUS to Local Bus/Power) 500 V AC
Test Voltage (PROFIBUS to FE) 500 V AC
Test Voltage (Local Bus to FE) 500 V AC
Inline Interface Isolation Independent isolation of power domains

Connection Data

Connection Method Spring-cage connection (Inline connector)
Rigid/Flexible 0.08–1.5 mm²
AWG 28–16
Stripping Length 8 mm
Conductor Sizes Rigid/Flexible: 0.08–1.5 mm² AWG: 28–16 Stripping Length: 8 mm

Environmental & Reliability

Operating Temperature 0°C to +55°C
Storage Temperature –25°C to +85°C
Operating Humidity 85% RH (non-condensing)
Operating Altitude Up to 3000 m
Air Pressure (Op/Storage) 80–106 kPa / 70–106 kPa

System & Application Details

Supported Inline Devices Up to 63 standard modules
Supported PCP Devices Max 16
Unsupported Features PROFIsafe, IB IL EX (intrinsically safe modules)
Included Accessories Labeling field, Inline connector
GSD File Downloadable from Phoenix Contact site for integration
