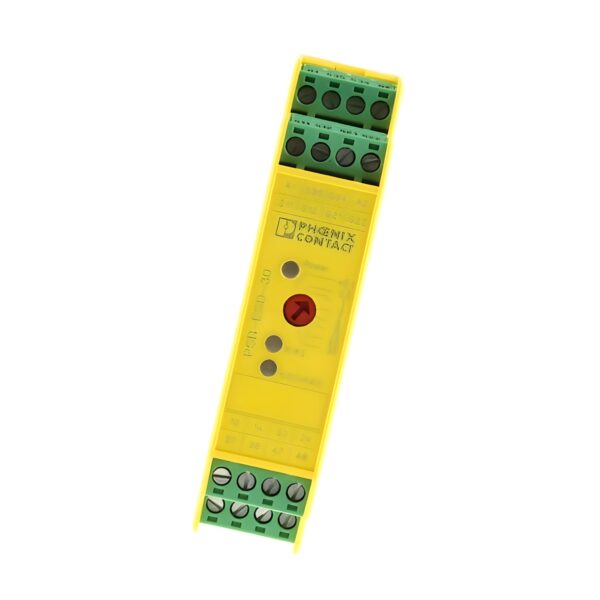

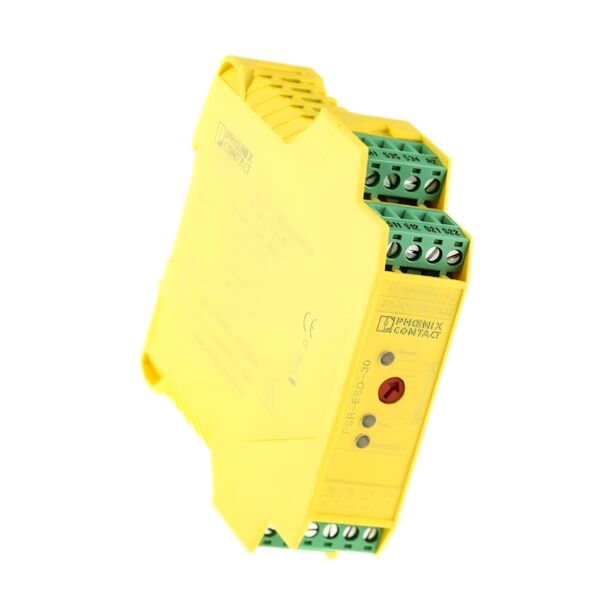

Phoenix Contact 2981800 Safety Relay – PSR-SCP-24DC/ESD/4X1/30

The Phoenix Contact PSR-SCP-24DC/ESD/4X1/30 is a robust safety relay from the PSRclassic series, engineered for emergency stop and safety door monitoring up to SIL 3 / Cat. 4 / PL e in accordance with EN ISO 13849. Featuring electromechanical, force-guided contacts and flexible activation modes, it ensures dependable performance in demanding safety applications.

Designed for industrial control panels, this unit offers 4 N/O enabling paths, adjustable dropout delay, and LED diagnostics. It is DIN rail mountable and equipped with plug-in screw terminals for simplified installation and service.

Technical Specifications

Model: Phoenix Contact PSR-SCP-24DC/ESD/4X1/30
Part Number: Phoenix 2981800
Product Type: Safety Relay
Mounting: DIN rail NS 35
Housing Material: PA (polyamide)
Dimensions (W × H × D): 22.5 × 99 × 114.5 mm
Weight: Approx. 160 g

Electrical Characteristics

Input:

• Nominal Voltage (UN): 24 V DC
• Voltage Range: 0.85 – 1.1 × UN
• Inrush Current (typ.): 250 mA
• Typical Input Current: 75 mA
• Protective Circuit: Suppressor diode, 33 V DC
• Power Dissipation: 1.8 W
• Operating Mode: 100% duty cycle
• Control Circuit Voltage (US): 24 V DC
• Max. Conductor Resistance: 500 Ω (input/reset circuit)

Output:

• Contacts: 4 N/O enabling paths
• Relay Type: Electromechanical, force-guided
• Contact Material: AgSnO₂
• Max. Switching Voltage: 250 V AC/DC
• Min. Switching Voltage: 15 V AC/DC
• Continuous Current: 6 A
• Max. Inrush Current: 6 A
• Switching Capacity (DC): 144 W @ 24 V, 90 W @ 110 V
• Switching Capacity (AC): 1500 VA @ 250 V
• Min. Switching Capacity: 0.4 W
• Output Fuse: 10 A gL/gG (N/O contacts)

Timing Functions:

• Response Time: 150 ms
• Release Time: 20 ms (undelayed), 100 ms (delayed)
• Delay Range: 0.1 – 30 s ±30% (adjustable)
• Recovery Time: 330 ms (restart), 1 s (electrical torque)

Mechanical & Connection Data

Connection Type: Screw, pluggable terminal blocks
Input/Output Wiring:

• Rigid/Flexible: 0.2–2.5 mm²
• AWG: 24–12
• Stripping Length: 7 mm
• Screw Thread: M3

Mounting Position: Horizontal on DIN rail NS 35
Installation Clearance: Not specified (ensure IP54 in panel)

Environmental & Reliability

• Operating Temperature: –20°C to +45°C
• Storage Temperature: –40°C to +70°C
• Relative Humidity: ≤ 75% avg. (85% infrequently, non-condensing)
• Protection Degree: IP20 (housing), IP54 (recommended cabinet)
• Vibration Resistance: 10–150 Hz, 2 g
• Shock Resistance: 15 g
• Altitude: ≤ 2000 m
• Insulation Category: Overvoltage Category II, Pollution Degree 2

Functional Safety Ratings

• Stop Category: 0 / 1
• Category (EN ISO 13849): Cat. 4
• Performance Level: PL e
• SIL (IEC 62061 / IEC 61508): SIL 3
• Service Life: Approx. 10⁷ cycles (mechanical)

Applications

Ideal for:

• Emergency stop circuits
• Guard door safety interlocks
• Light grid integration
• Two-channel safety inputs
• Redundant safety configurations

Key Features & Benefits

✅ SIL 3 / Cat. 4 / PL e Rated: Ensures compliance with the highest industrial safety standards.

✅ Adjustable Dropout Delay: 0.1 to 30 seconds for application flexibility.

✅ Clear LED Diagnostics: Instant status feedback with green indicators.

✅ Compact Width (22.5 mm): Space-saving design for control cabinets.

✅ Plug-In Terminal Blocks: Simplifies installation and replacement.

📦 Available from Drive Outlet Megastore

The Phoenix Contact PSR-SCP-24DC/ESD/4X1/30 offers certified safety for critical machine protection applications. Count on its reliability for personnel and equipment safety.
