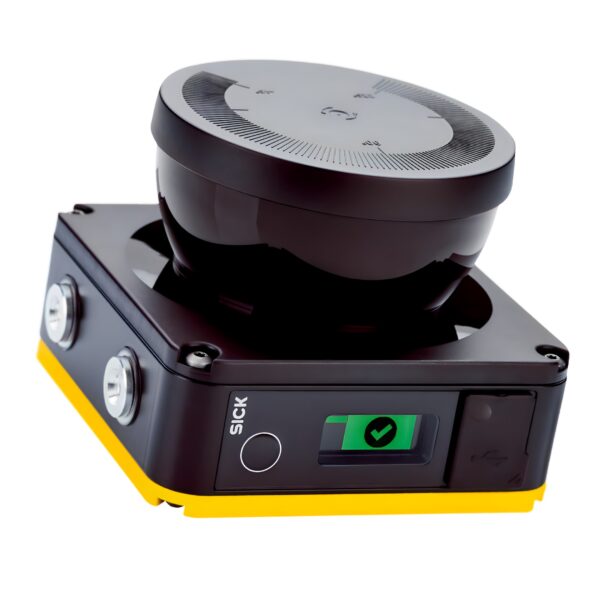

SICK NANS3-CAAZ30AN1 NanoScan3 Pro – PROFINET Safety Laser Scanner (1100334)

The SICK NANS3-CAAZ30AN1 is a high-performance PROFINET safety laser scanner designed for advanced industrial automation and mobile robotics. It combines a compact footprint with smart Ethernet-based integration and high-resolution protection for modern smart factories.

Technical Specifications

• Model: NANS3-CAAZ30AN1
• Part Number: 1100334
• Product Type: Safety laser scanner (sensor without system plug)
• Series: nanoScan3 Pro – PROFINET
• Application: Indoor use
• Protective Field Range: 3 m
• Warning Field Range: 10 m
• Distance Measuring Range: 40 m
• Scanning Angle: 275°
• Resolution (Configurable): 20 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 150 mm, 200 mm
• Angular Resolution: 0.17°

Functional Parameters

• Number of Simultaneously Monitored Fields: ≤ 8
• Number of Fields: 128
• Number of Monitoring Cases: 128
• Response Time: 70 ms
• Protective Field Supplement: 65 mm

Safety-Related Data

• Protection Class: III (EN 61140)
• Certifications:
  • European Conformity (CE)
  • UK Conformity Assessed (UKCA)
  • cULus
  • Regulatory Compliance Mark (RCM)
  • S-mark

Electrical Interface

• Supply Voltage: 24 V DC (16.8 V to 30 V DC)
• Power Consumption (Typical): 3.9 W (without output load)
• Communication Interface: PROFINET

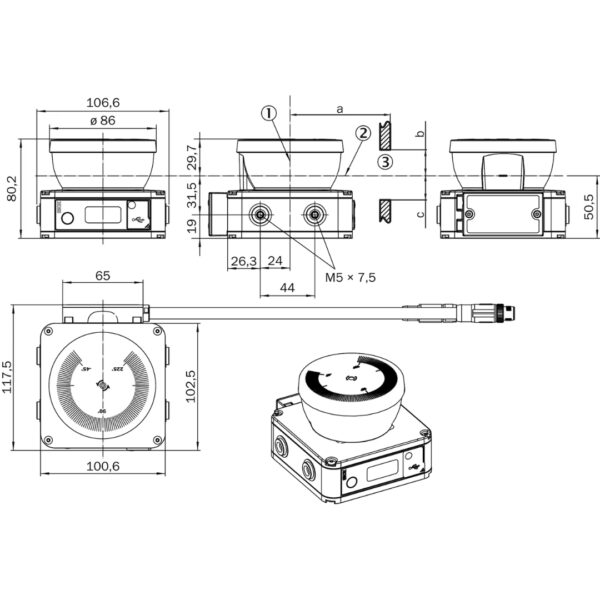

Mechanical Data

• Dimensions (W x H x D): 106.6 mm x 80 mm x 117.5 mm (including system plug)
• Weight: 0.67 kg
• Housing Material: Aluminum
• Housing Color: RAL 1021 (Yellow) and RAL 9005 (Black)
• Optics Cover Material: Polycarbonate

Ambient Conditions

• Operating Environment: Indoor

Scope of Delivery

• Included:
  • Sensor unit only (system plug sold separately)
• Note:
  • Requires compatible nanoScan3 PROFINET system plug for full operation (see System Plug Accessories)

Applications

Ideal For:

• AGVs and AMRs requiring PROFINET communication
• Smart factory cells and flexible production areas
• Warehouse and logistics robotics
• Perimeter and entrance protection with dynamic field switching

Key Features & Benefits:

✅ Industrial PROFINET Connectivity: Integrates directly into advanced automation networks.

✅ Ultra-Compact Footprint: Only 80 mm tall — seamless integration into space-limited robotic designs.

✅ High Resolution and Accuracy: 0.17° angular resolution for detailed, reliable obstacle detection.

✅ Flexible Field Switching: Supports 128 fields and 128 monitoring cases — maximum application flexibility.

✅ Energy Efficient: Low 3.9 W typical power draw, ideal for battery-operated platforms.
