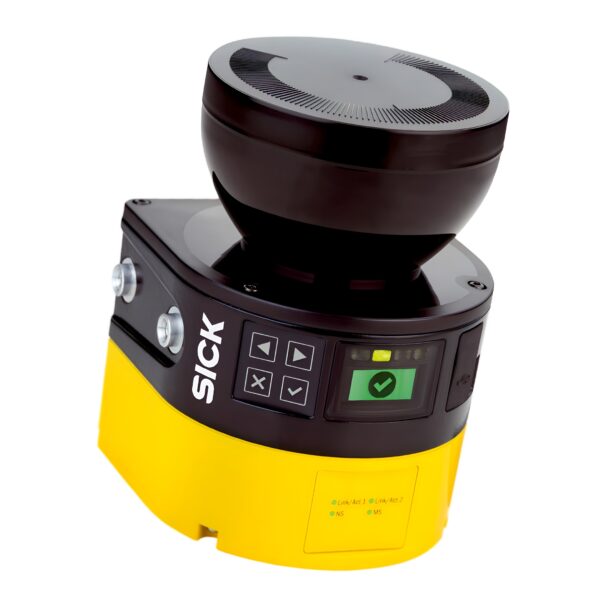

SICK MICS3-CBAZ55PZ1 Safety Laser Scanner (1092719)

The SICK MICS3-CBAZ55PZ1 is a replacement sensor from the microScan3 Pro – PROFINET series, supplied without a system plug. It must be combined with an existing plug (compatible with MICS3-CBAZ55PZ1P01) for operation.

Offering a 5.5-meter protective field, 275° scanning angle, and high-performance PROFINET integration, it is designed for fast and efficient field service replacement in PROFINET-based safety networks.

Important Note

• This product is a replacement sensor only.
• System plug must be re-used or purchased separately to operate the scanner.

Technical Specifications

• Model: MICS3-CBAZ55PZ1
• Part Number: 1092719
• Product Type: Safety Laser Scanner (Replacement Unit)
• Series: microScan3 Pro – PROFINET
• Application: Indoor use
• Protective Field Range: 5.5 m
• Warning Field Range: 40 m
• Scanning Angle: 275°
• Resolution (Configurable): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
• Angular Resolution: 0.39°

Functional Parameters

• Number of Simultaneously Monitored Fields: ≤ 8
• Number of Fields: 128
• Number of Monitoring Cases: 128
• Response Time: 95 ms
• Protective Field Supplement: 65 mm

Safety-Related Data

• Protection Class: III (EN 61140)
• Certifications:
  • European Conformity (CE)
  • UK Conformity Assessed (UKCA)
  • cULus
  • Regulatory Compliance Mark (RCM)
  • S-Mark (Japan)

Electrical Interface

• Supply Voltage: 24 V DC (16.8 V to 30 V DC)
• Power Consumption:
  • Typical: 7.2 W

Mechanical Data

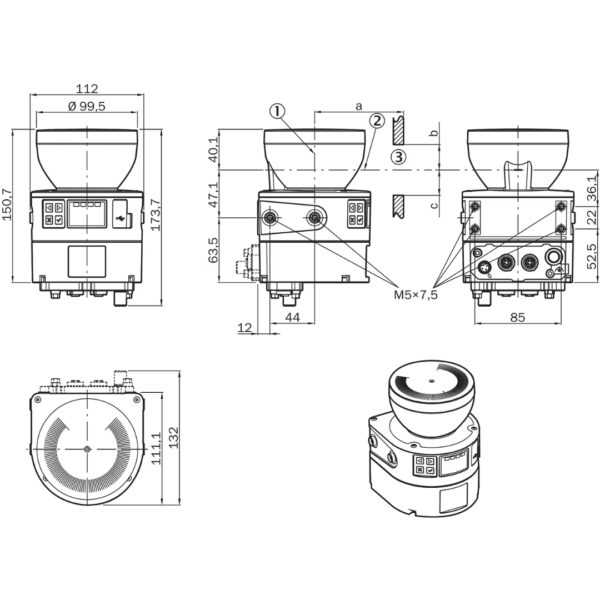

• Dimensions (W x H x D): 112 mm x 150.8 mm x 111.1 mm
• Housing Material: Aluminum
• Housing Color: RAL 1021 (Yellow), RAL 9005 (Black)
• Optics Cover Material: Polycarbonate
• Optics Cover Finish: Scratch-resistant coating (outer surface)

Ambient Conditions

• Operating Environment: Indoor
  (Refer to datasheet for complete temperature, humidity, and shock specifications.)

Scope of Delivery

• Included:
  • Replacement safety scanner unit (without system plug)
• Not Included:
  • System plug (required)
  • Additional cabling and mounting kits

Applications

Ideal For:

• Replacement in PROFINET-connected AGVs and robotics
• Service repairs and preventive maintenance in industrial safety networks
• Expansion or upgrade of existing microScan3-based systems

Key Features & Benefits:

✅ Direct Replacement for MICS3-CBAZ55PZ1P01: Reduces system downtime during service events.

✅ Massive Field & Case Capacity: Supports 128 fields and 128 monitoring cases.

✅ Reliable PROFINET IO Safety Communication: Seamlessly integrates into advanced networked safety systems.

✅ Outstanding Scanning Performance: SafeHDDM™ technology ensures reliable results even in tough environments.

✅ Durable and Compact Build: Robust aluminum body with industrial scratch-resistant optics.
